- RS Stock No.:
- 317-083
- Mfr. Part No.:
- FTN09G04
- Manufacturer:
- TE Connectivity
- RS Stock No.:
- 317-083
- Mfr. Part No.:
- FTN09G04
- Manufacturer:
- TE Connectivity
Technical data sheets
Legislation and Compliance
Product Details

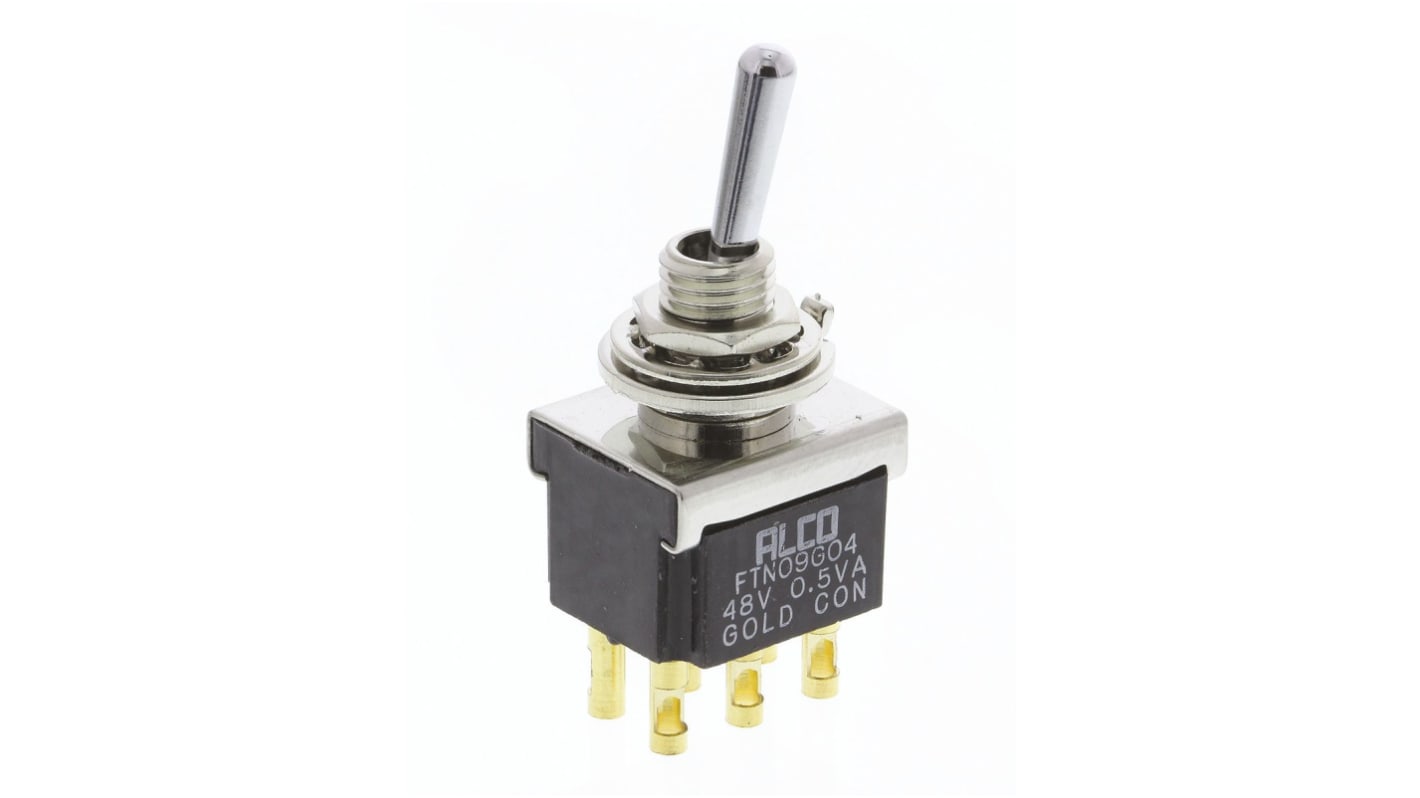

Toggle Switches, Min, Professional
Note
Care should be taken when soldering not to overheat the switch assembly
For biased switches '(on)' refers to momentary 'on' position
For biased switches '(on)' refers to momentary 'on' position
Approvals
CSA
Approvals
CSA
Specifications
Attribute | Value |
---|---|
Contact Configuration | Double Pole Double Throw (DPDT) |
Switch Operation | On-On |
Contact Current Rating | 14 mA @ 28 V dc |
Mounting Type | Panel Mount |
Terminal Type | Solder |
Panel Cut Out Diameter | 6.2mm |
Actuator Length | 10.5mm |
Actuator Material | Chrome Plated Brass |
Voltage Rating | 250V |
Contact Resistance | 0.02Ω |
Contact Material | Gold Plated |
Minimum Operating Temperature | -20°C |
Operating Temperature Range | -20 → +80°C |
Maximum Operating Temperature | +80°C |
Standards Met | CSA Recognised, RoHS, UL 94V-0 |
Mechanical Life | 100000Operations |
