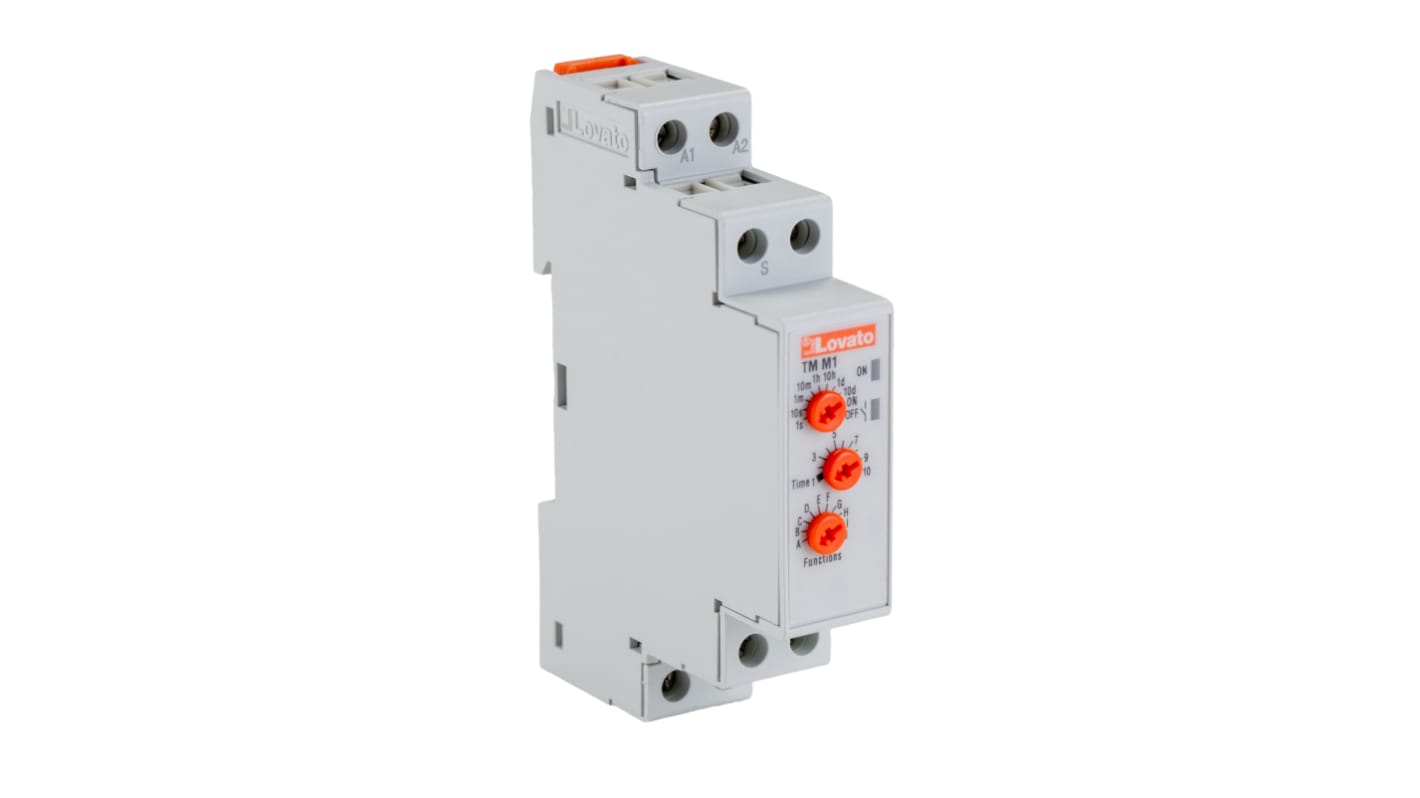

Lovato Multi Function Time Delay Relay, Screw, 0.1 s → 10 days, SPDT, 2 Contacts, SPDT, 12 → 240 V ac/dc

  • RS Stock No. 905-3466
  • Mfr. Part No. TMM1
  • Manufacturer Lovato
Technical data sheets
Legislation and Compliance
RoHS Status: Exempt
COO (Country of Origin): IT
Product Details

Lovato TM Series Time Delay Relay

Lovato extends the range of electronic Time Delay Relays with new modular models of the TM series.

Models with multi-scale 0.1 seconds-100 days
Wide supply voltage range 12-440V
Excellent time accuracy and stability
Immunity to industrial ambient noise
Operating temperature -20̊C - +60̊C
Robust modular DIN 43880 housing, one module
35mm DIN rail mounting or screw fixing by extricable clips
Conductor section 0.2-4mm²
Reliable in most server operating conditions

TMLS model (extra features)

Connection with up to 50 light-up switches (maximum)
Suitable for 3 or 4-wire systems
1 slide switch for manual or automatic operation (constant lighting)

Specifications
Attribute Value
Supply Voltage 12 → 240 V ac/dc
Time Range 0.1 s → 10 days
Mode of Operation Flash Start with OFF, Flash Start with ON, OFF Delay, ON Delay, Pulse ON Relay
Mounting Type DIN Rail
Number of Timer Functions Multi Function
Number of Contacts 2
Time Increment Days, Hours, Minutes, Seconds
Power Supply External
Contact Configuration SPDT
Current Maximum 8 A
Terminal Type Screw
Width 104.7mm
Time Delay 25 ms
Depth 64.9mm
Minimum Operating Temperature -20°C
Maximum Operating Temperature +60°C
Switch Configuration SPDT
Length 17.5mm
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 264.14
units
Per unit
1 - 4
MYR264.14
5 - 9
MYR257.54
10 +
MYR250.75
