Siemens OFF Delay Single Timer Relay, Screw, 0.05 s 100 h, SPDT, 1 Contacts, SPDT, 12 240 V dc

  • RS Stock No. 831-6041
  • Mfr. Part No. 3RP2535-1AW30
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

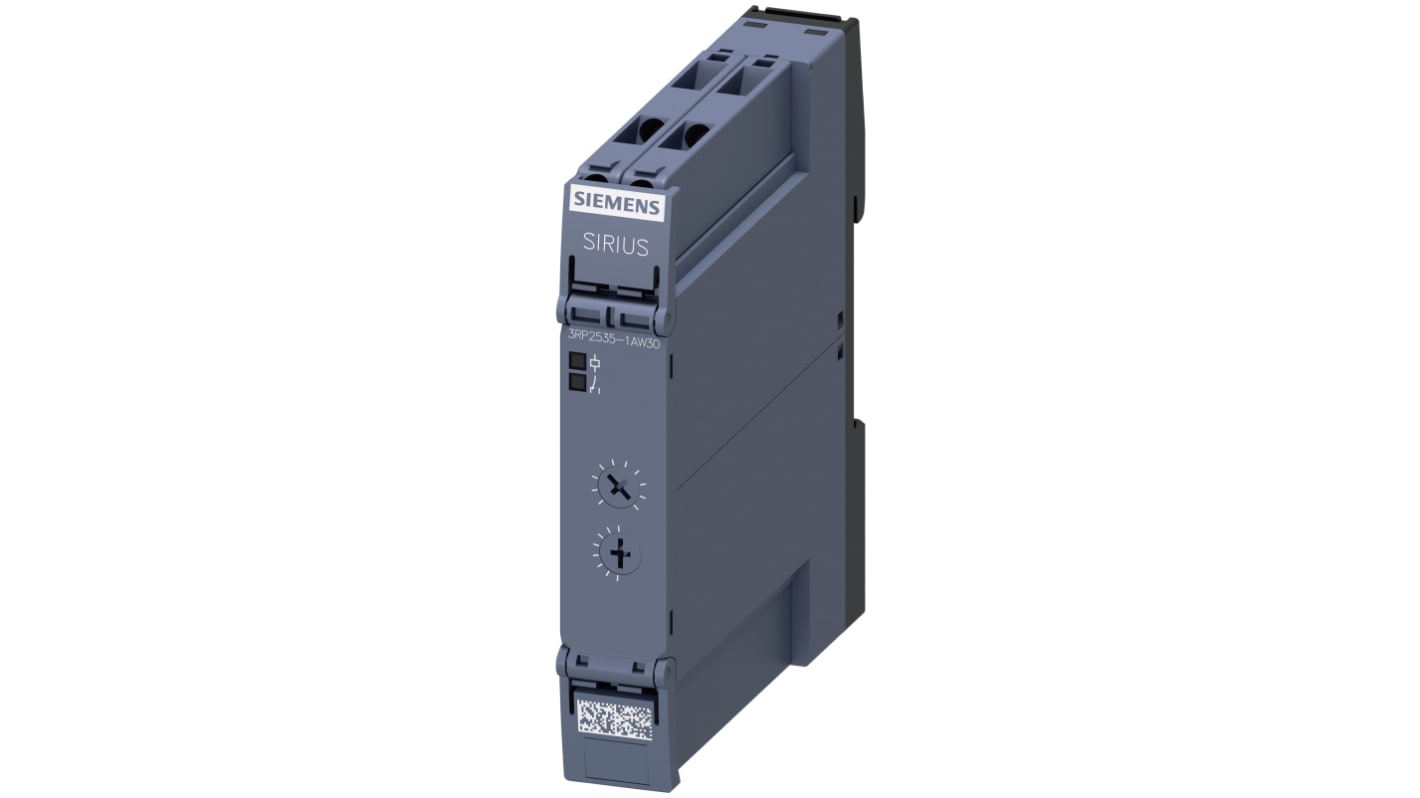

Siemens SIRIUS 3RP25 - Off-Delay Timer Relay

SIRIUS 3RP25 series time relays are used in control, starting, and protective circuits for all switching operations involving time delays.
Their fully developed concept and space-saving, compact design make the time relays ideal modules for control cabinet, switchgear and control manufacturers in the industry.

Off-delay time relay
LED indicator
Screw-type or spring-loaded terminals
Time range selector switch on the front
DIN rail mounting
Accessories for 3RP25
- Push-in lugs for wall mounting, stock-no. 831-6088
- Sealing cover for 17.5 mm time relays, stock-no. 831-6081
- Sealing cover for 22.5 mm time relays, stock-no. 831-6085

Specifications
Attribute Value
Supply Voltage 12 240 V dc
Time Range 0.05 s 100 h
Mode of Operation OFF Delay
Number of Timer Functions Single
Number of Contacts 1
Time Increment Hours, Seconds
Contact Configuration SPDT
Terminal Type Screw
Minimum Voltage 12 V dc
Maximum Voltage 240 V dc
Width 17.5mm
Switch Configuration SPDT
4 Within 4 working day(s) (Global stock)
2 Within 4 working day(s) (Global stock)
Price Each
MYR 486.99
units
Per unit
1 - 24
MYR486.99
25 - 49
MYR478.51
50 +
MYR473.19
