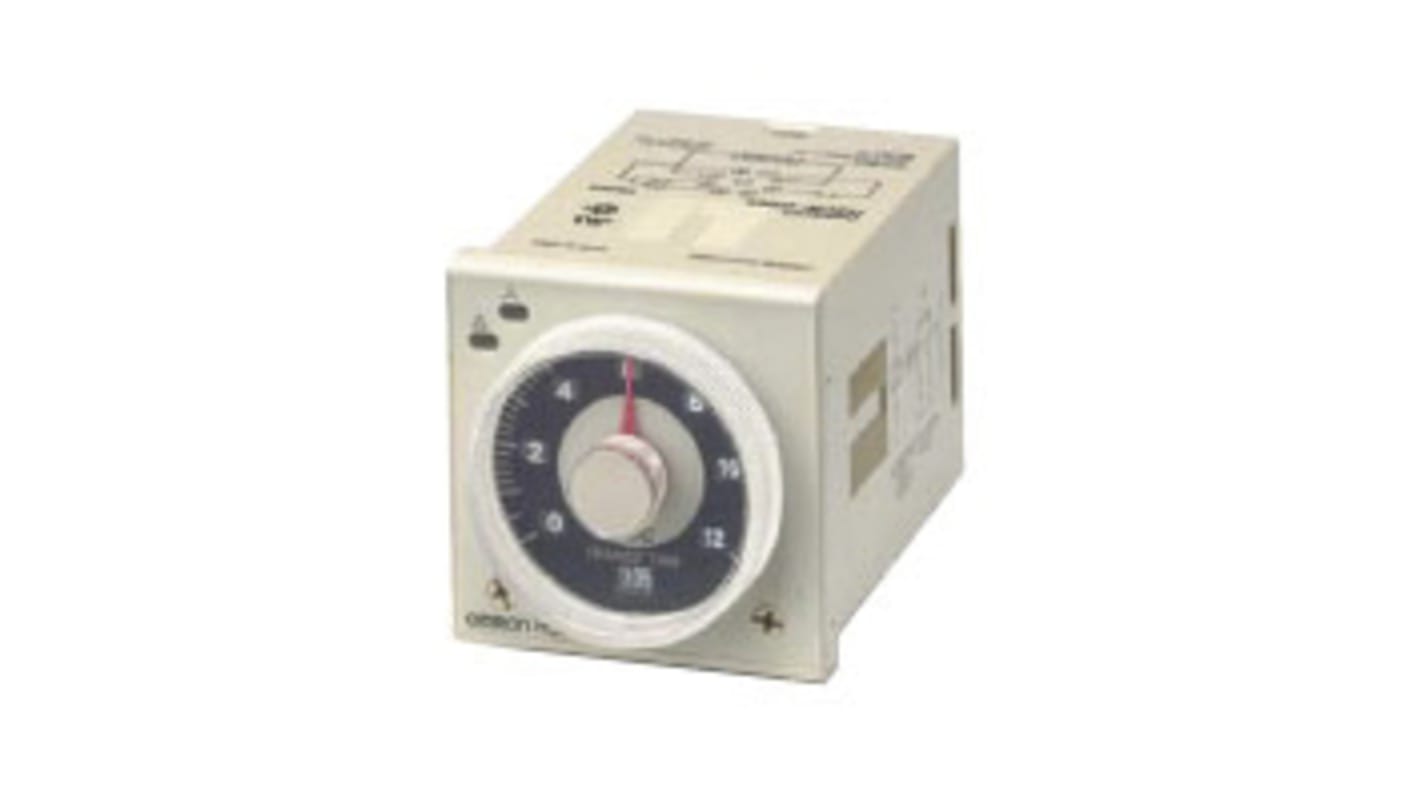

Omron H3CR Series DIN Rail Mount Timer Relay, 100 → 120V ac, 1-Contact, 0.5 → 120s, SPST
- RS Stock No.:
- 177-0089
- Mfr. Part No.:
- H3CR-G8EL AC100-120
- Manufacturer:
- Omron
Temporarily out of stock - back order for despatch 03/07/2024, delivery within 4 working days from despatch date
Added
Price Each
MYR865.36
| Units | Per Unit |
| 1 + | MYR865.36 |
- RS Stock No.:
- 177-0089
- Mfr. Part No.:
- H3CR-G8EL AC100-120
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details
Omron Timer Relay
The Omron H3CR series multifunction relay has a star-delta timer relay along with 1 change over contacts and is DIN rail mount. The relay requires a supply voltage ranging between 100VAC and 120VAC and a maximum current rating of 5A. It has an adjustable time range between 0.5sec and 120sec.
Features and Benefits
• Contact configuration is SPST
• Crimp terminal type
• Operating temperature ranges between -10°C and 55°C
• Crimp terminal type
• Operating temperature ranges between -10°C and 55°C
Applications
• Industrial application
• Timing control
• Timing control
Certifications
• CE approved
• CSA approved
• EN 61812-1
• UL approved
• CSA approved
• EN 61812-1
• UL approved
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 100 → 120V ac |
| Mounting Type | DIN Rail |
| Mode of Operation | Star Delta |
| Time Range | 0.5 → 120s |
| Number of Contacts | 1 |
| Number of Timer Functions | Multi Function |
| Contact Configuration | SPST |
| Time Increment | Seconds |
| Maximum Current | 5A |
| Maximum Voltage | 120V ac |
| Terminal Type | Crimp |
| Switch Configuration | SPST |
| Width | 48mm |
| Minimum Voltage | 100V ac |
| Power Supply | External |
| Length | 48mm |
| Maximum Operating Temperature | +55°C |
| Depth | 93mm |
| Series | H3CR |
| Minimum Current | 10mA |
| Minimum Operating Temperature | -10°C |
