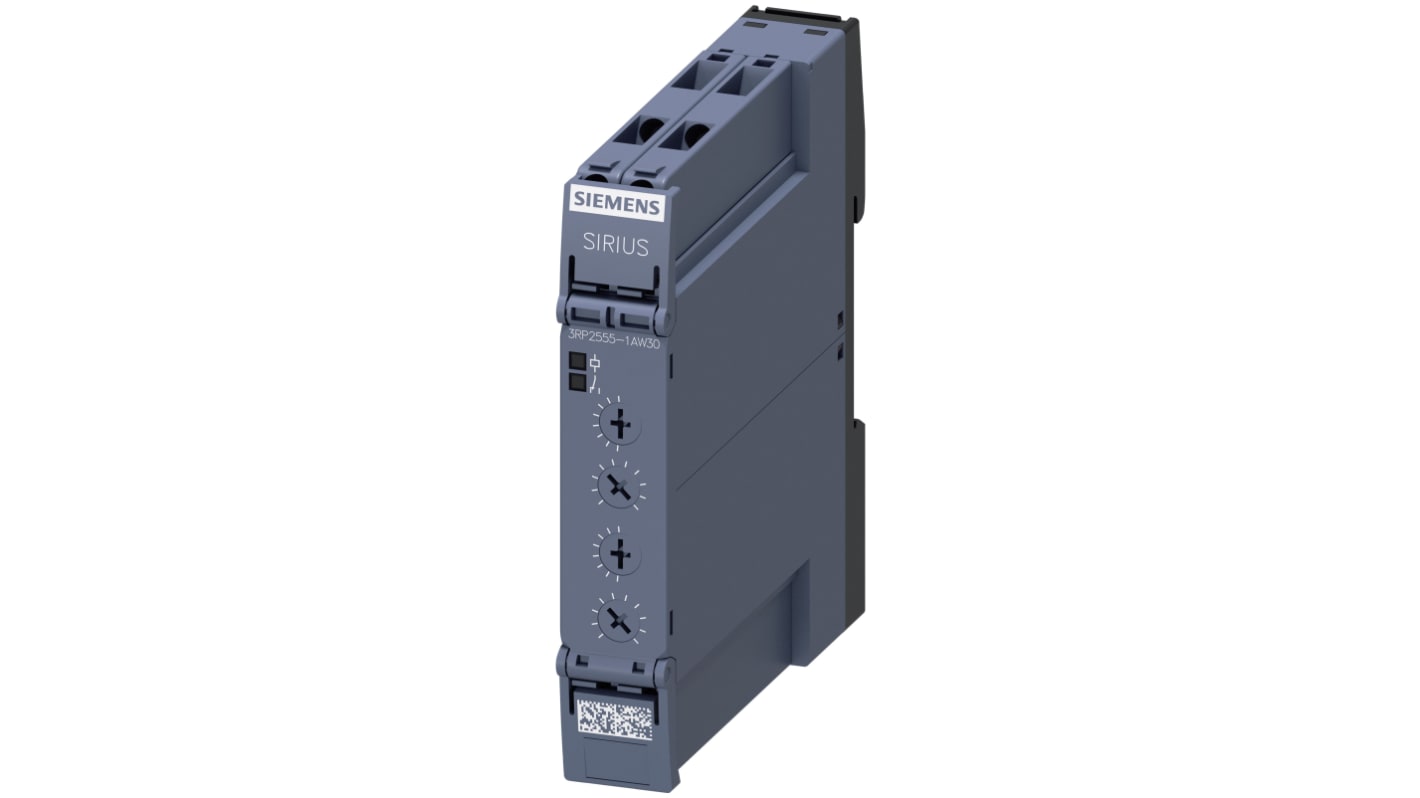

Siemens Asymmetrical Single Timer Relay, Screw, 0.05 s 100 h, SPDT, 1 Contacts, SPDT, 12 240 V ac/dc

  • RS Stock No. 124-9414
  • Mfr. Part No. 3RP2555-1AW30
  • Manufacturer Siemens
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
Product Details

SIRIUS 3RP25 - Multifunction Timer Relay

Timing relay SIRIUS 3RP25, 27 functions, for all switching operations involving time delays in control, starting, protection and regulation circuits.
Wide range of applications due to wide variety of functions within a very small space. Can be used worldwide thanks to international approvals and wide range of voltages. The innovative enclosure concept in an industrial design offers labelled cover caps, removable terminals and much more.

Available as single or multifunctional time relay with semi-conductor output or as electromechanical relay with or without positively driven operation, in each case with various connection technologies.
The scope of supply already includes adhesive films for marking of functions.
The 3RP25 timing relays replace the well-proven 3RP15 series.

Features and Benefits:

  • Multifunction time relay

  • LED indicator

  • Screw-type or spring-loaded terminals

  • Time range selector switch on the front

  • DIN rail mounting

Accessories for 3RP25:

  • Push-in lugs for wall mounting, stock-no. 831-6088

  • Sealing cover for 17.5 mm time relays, stock-no. 831-6081

  • Sealing cover for 22.5 mm time relays, stock-no. 831-6085

Specifications
Attribute Value
Supply Voltage 12 240 V ac/dc
Time Range 0.05 s 100 h
Mode of Operation Asymmetrical
Mounting Type DIN Rail
Number of Timer Functions Single
Number of Contacts 1
Series 3RP25
Time Increment Hours, Seconds
Power Supply External
Contact Configuration SPDT
Current Maximum 3 A
Terminal Type Screw
Minimum Voltage 12 V ac/dc
Maximum Voltage 240 V ac/dc
Length 17.5mm
Minimum Operating Temperature -25°C
Depth 100mm
Contact Material Silver Tin Oxide
Width 91.6mm
Maximum Operating Temperature +60°C
Switch Configuration SPDT
