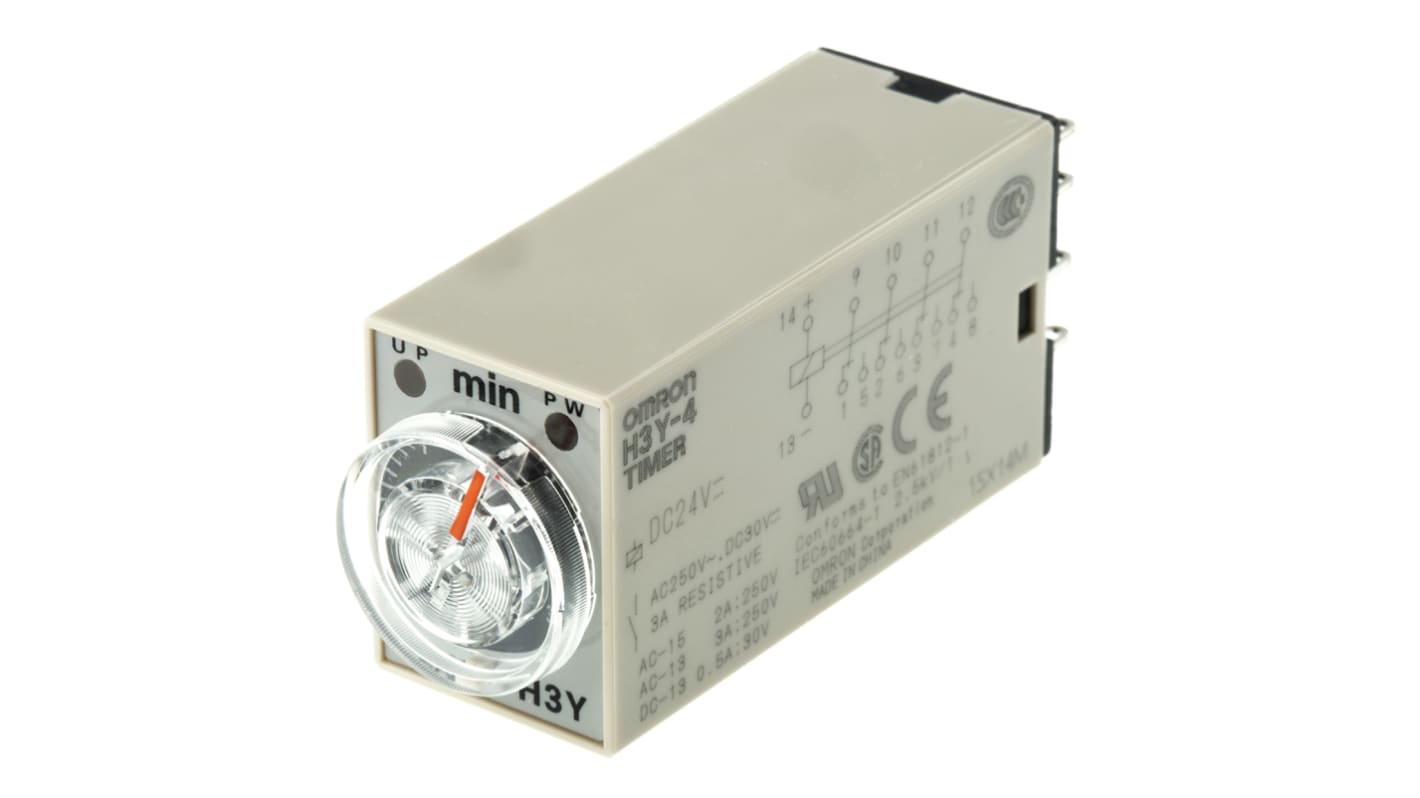

Omron H3Y-4 Series DIN Rail, Surface Mount Timer Relay, 24V dc, 4-Contact, 0.1 → 3min, 1-Function, 4PDT
- RS Stock No.:
- 340-421
- Mfr. Part No.:
- H3Y-4 DC24 3M
- Manufacturer:
- Omron
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR309.92
| Units | Per Unit |
| 1 - 24 | MYR309.92 |
| 25 - 49 | MYR303.41 |
| 50 + | MYR294.31 |
- RS Stock No.:
- 340-421
- Mfr. Part No.:
- H3Y-4 DC24 3M
- Manufacturer:
- Omron
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Miniature - H3Y4
Function - 111
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)
Pin compatible with MY power relay
Time settings adjustable with a screwdriver
All have 14 pins (rectangular format)
Standards
EN 50081-2, EN50082-2, VDE0435/P2021, VDE0110
Approvals
UL, CSA
Specifications
Attribute | Value |
|---|---|
| Supply Voltage | 24V dc |
| Mounting Type | DIN Rail, Surface Mount |
| Mode of Operation | ON Delay |
| Time Range | 0.1 → 3min |
| Number of Contacts | 4 |
| Number of Timer Functions | Single |
| Contact Configuration | 4PDT |
| Time Increment | Minutes |
| Maximum Current | 5A |
| Maximum Voltage | 250V ac |
| Switch Configuration | 4PDT |
| Terminal Type | Plug In |
| Power Supply | External |
| Width | 21.5mm |
| Series | H3Y-4 |
| Maximum Operating Temperature | +50°C |
| Depth | 63mm |
| Length | 28mm |
| Time Delay | 0.1s |
| Minimum Operating Temperature | -10°C |
