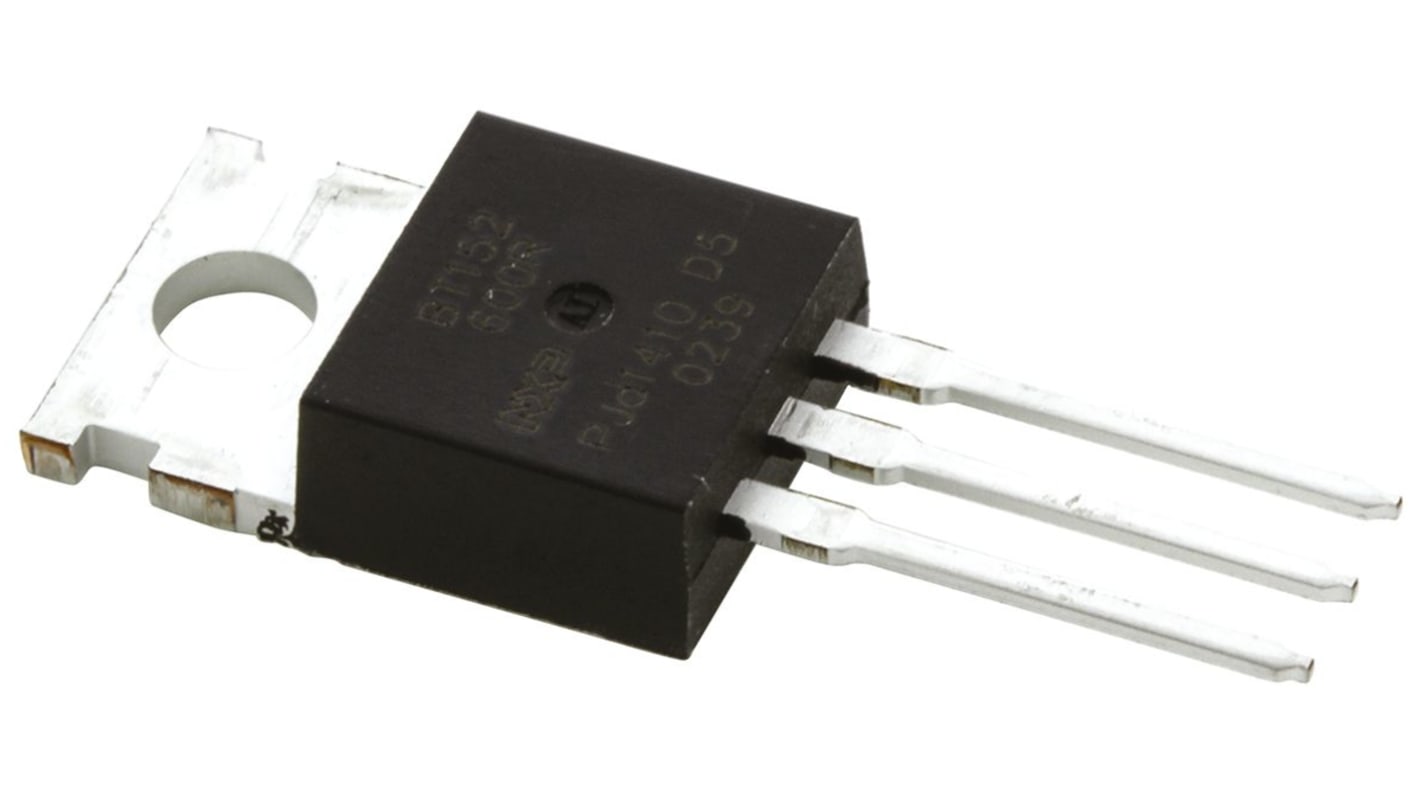

WeEn Semiconductors Co., Ltd BT152-600R,127, Thyristor 650V, 13A 32mA
- RS Stock No.:
- 262-488
- Mfr. Part No.:
- BT152-600R,127
- Manufacturer:
- WeEn Semiconductors Co., Ltd
44 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
268 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR5.70
| Units | Per Unit |
| 1 - 12 | MYR5.70 |
| 13 - 24 | MYR4.99 |
| 25 + | MYR4.63 |
- RS Stock No.:
- 262-488
- Mfr. Part No.:
- BT152-600R,127
- Manufacturer:
- WeEn Semiconductors Co., Ltd
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Phase Control Thyristors, WeEn Semiconductors
Thyristors - WeEn Semiconductors
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Planar passivated Silicon Controlled Rectifier (SCR) in a SOT78 plastic package intended for use in applications requiring high bidirectional blocking voltage capability, high surge current capability and high thermal cycling performance.
Key Features
- High bidirectional blocking voltage capability
- High surge current capability
- High thermal cycling performance
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Note
NXP is a trademark of NXP B.V.
Thyristors - WeEn Semiconductors
A Thyristor is a solid-state semiconductor device with four layers of alternating N and P-type material. They act as bistable switches, conducting when their gate receives a current trigger, and continue to conduct while they are forward biased. Thyristors are synonymous to Silicon-Controlled Rectifier (SCR).
Specifications
Attribute | Value |
|---|---|
| Rated Average On-State Current | 13A |
| Thyristor Type | SCR |
| Package Type | TO-220AB |
| Repetitive Peak Reverse Voltage | 650V |
| Surge Current Rating | 220A |
| Mounting Type | Through Hole |
| Maximum Gate Trigger Current | 32mA |
| Maximum Gate Trigger Voltage | 1.5V |
| Maximum Holding Current | 60mA |
| Pin Count | 3 |
| Dimensions | 10.3 x 4.7 x 9.4mm |
| Repetitive Peak Forward Blocking Voltage | 650V |
| Peak On-State Voltage | 1.75V |
| Repetitive Peak Off-State Current | 1mA |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
