Dormer HSS M10 Straight Flute, Second Threading Tap, 80 mm Length

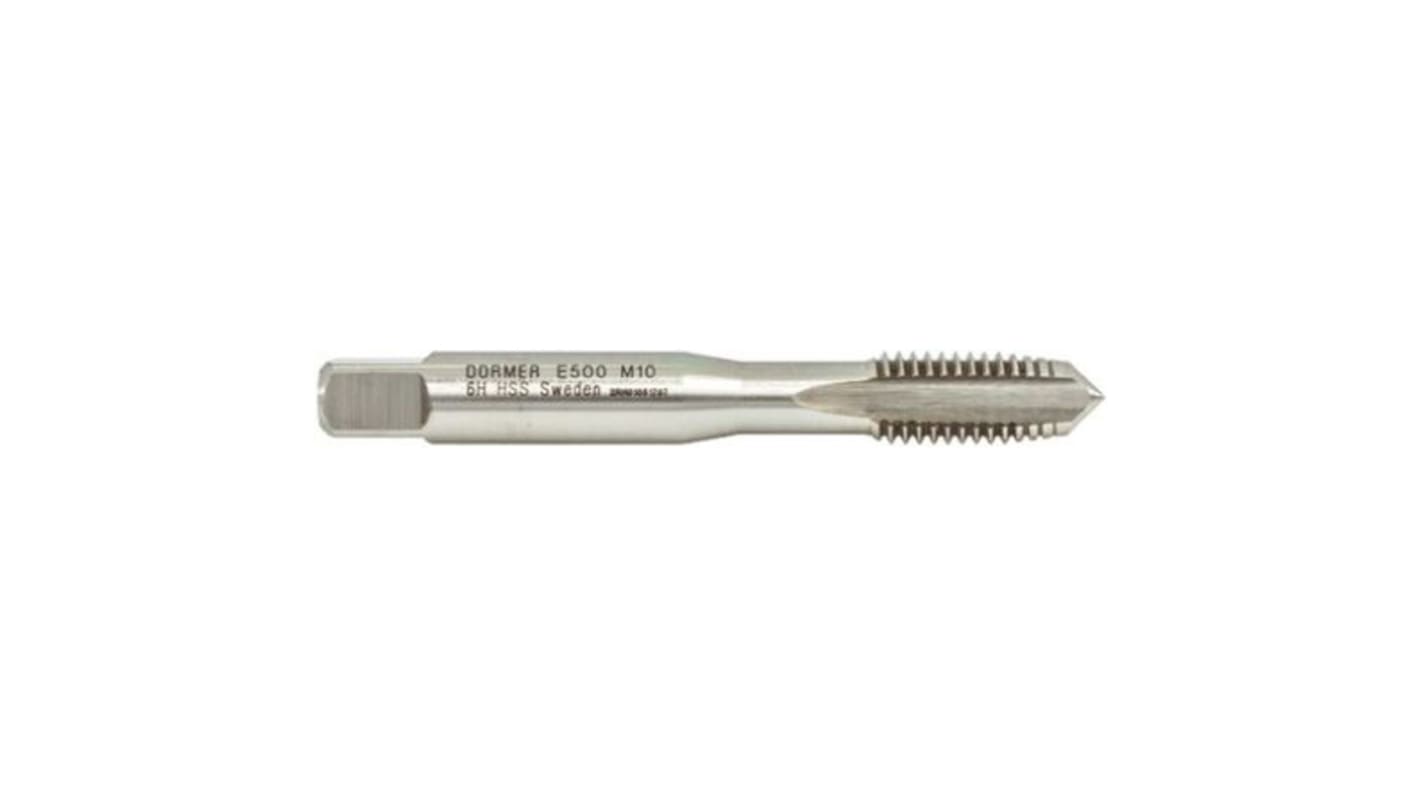

This image is representative of the product range


10 In stock for delivery within 4 working days
Add to Basket

Price Each

MYR94.36

units

Added

RS Stock No.:
240-3338
Mfr. Part No.:
E500 10.0 X 1.50 3FL SEC
Manufacturer:
Dormer

RoHS Status: Not Applicable

COO (Country of Origin):
SE
unitsPer unit
1 +MYR94.36

HSS Straight Flute Metric Coarse Hand Tap (E500)


HSS Straight Flute hand tap for producing metric coarse threads in most materials.


Features and Benefits:


Suitable for tapping repeatable tolerance threads in through or blind holes by hand or machine
7° cutting rake angle
Bright finish


Typical Applications


Taps and dies are used to create screw threads (commonly known as threading). Taps make nuts and a die makes a bolt. Forming threads using a tap is known as tapping, but using a die calls the process threading. Threading taps are used in:
Engineering
Manufacturing


FAQs

What is HSS?

An acronym for High-speed steel, HSS is generally the go-to type of steel needed for tap and drill bits due to their excellent heat resistance at high speeds. As a standard drill can spin upwards of around 500 - 700rpm, the friction can cause a substantial build-up of heat. Something which would not be wanted when working with wood and plastic.

What are the different types of threading taps?
The four most popular ones are:
Straight Flute Taps: most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool.

Spiral Point Taps: suitable for threading through holes. They push chips through holes ahead of the tool.

Spiral Flute Taps: intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole.

Forming Taps: produce a thread by pressing the material rather than cutting and no chips are created.

These Dormer taps are Straight Flute Taps. Straight flute taps and be used by hand and they can also be used in a machine if needed.


Standards

Manufactured to ISO529

Standards

ISO529

Contents

7777

Engineering Taps - Straight Flute (Dormer)

Precision HSS taps to ISO529 designed to produce repeatable tolerance threads in most engineering materials. Suitable for medium/high rate production. All taps are to tolerance class 2, giving 6H fit (metric taps) or 2B fit (UNF & UNC taps)

AttributeValue
Set TypeThreading Tap
Thread SizeM10
TypeStraight Flute, Second
Pitch1.5mm
Thread StandardMetric
Thread DirectionRight Hand
Overall Length80 mm
Number of Pieces1
Hand/Machine TapMachine Tap
MaterialHSS
Shank Diameter10 mm
Class of Fit6H
