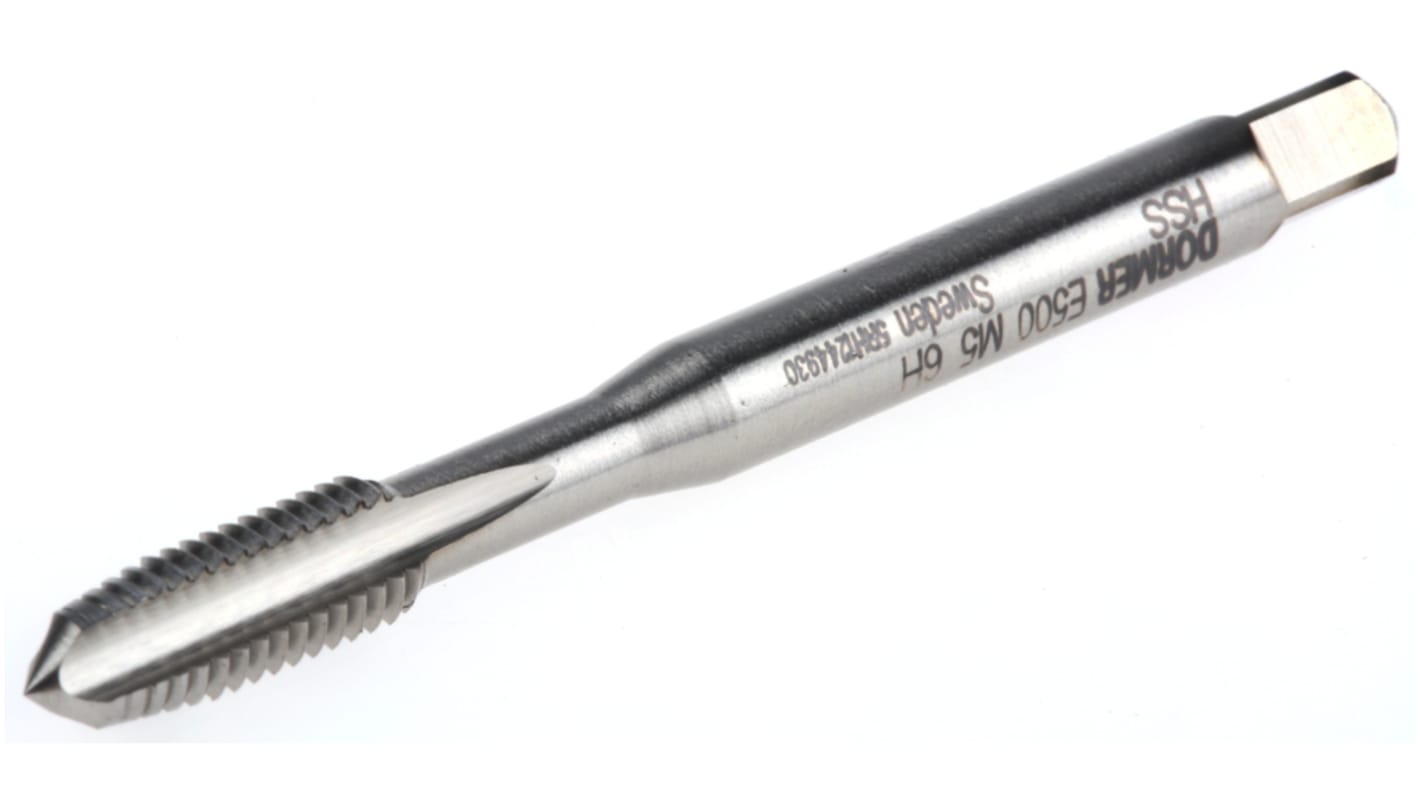

Dormer HSS M5 Straight Flute, Second Thread Tap, 58 mm Length

  • RS Stock No. 240-3209
  • Mfr. Part No. E500 5.0 X 0.80 3FL SEC
  • Manufacturer Dormer
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): SE
Product Details

HSS Straight Flute Metric Coarse Hand Tap (E500)

HSS Straight Flute hand tap for producing metric coarse threads in most materials.

Features and Benefits:

Suitable for tapping repeatable tolerance threads in through or blind holes by hand or machine
7° cutting rake angle
Bright finish

Typical Applications

Taps and dies are used to create screw threads (commonly known as threading). Taps make nuts and a die makes a bolt. Forming threads using a tap is known as tapping, but using a die calls the process threading. Threading taps are used in:
Engineering
Manufacturing

FAQs

What is HSS?

An acronym for High-speed steel, HSS is generally the go-to type of steel needed for tap and drill bits due to their excellent heat resistance at high speeds. As a standard drill can spin upwards of around 500 - 700rpm, the friction can cause a substantial build-up of heat. Something which would not be wanted when working with wood and plastic.

What are the different types of threading taps?
The four most popular ones are:
Straight Flute Taps: most commonly used type of tap and suitable for blind or though hole thread production in most materials, mainly steel and cast iron. These collect chips in the straight flutes of the tool.

Spiral Point Taps: suitable for threading through holes. They push chips through holes ahead of the tool.

Spiral Flute Taps: intended primarily for threading blind holes. They pull chips back from the tip of the tool and up and out of the hole.

Forming Taps: produce a thread by pressing the material rather than cutting and no chips are created.

These Dormer taps are Straight Flute Taps. Straight flute taps and be used by hand and they can also be used in a machine if needed.

Standards

Manufactured to ISO529

Standards

ISO529

Contents

7777

Engineering Taps - Straight Flute (Dormer)

Precision HSS taps to ISO529 designed to produce repeatable tolerance threads in most engineering materials. Suitable for medium/high rate production. All taps are to tolerance class 2, giving 6H fit (metric taps) or 2B fit (UNF & UNC taps)

Specifications
Attribute Value
Thread Size M5
Type Second, Straight Flute
Pitch 0.8mm
Thread Standard Metric
Thread Direction Right Hand
Overall Length 58 mm
Material HSS
Shank Diameter 5 mm
Shank Type Plain
Class of Fit 6H
71 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 51.14
units
Per unit
1 +
MYR51.14
