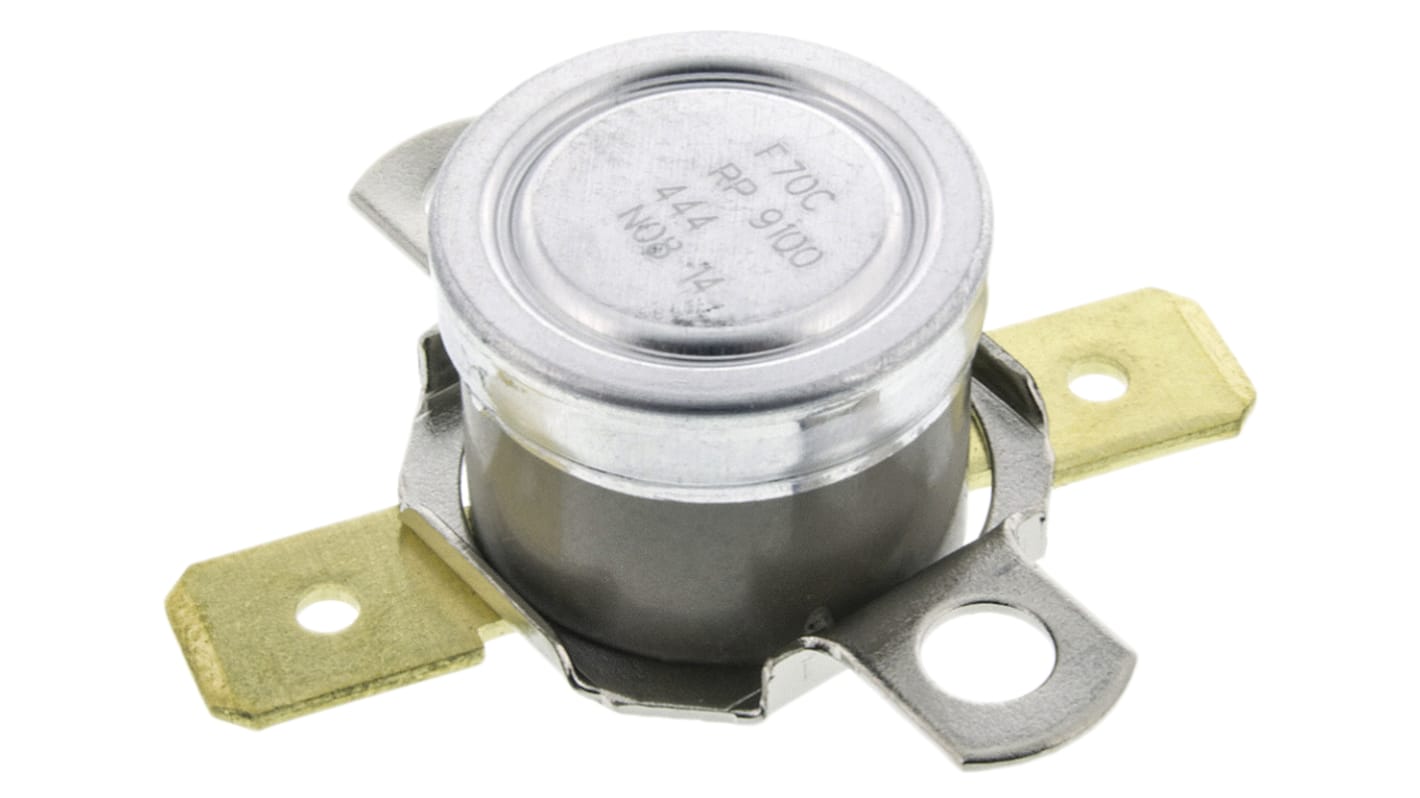

Honeywell Bi-Metallic Thermostat, Opens at +55°C, Closes at +70°C, +186°C Max, NO, Automatic Reset
- RS Stock No.:
- 229-5963
- Mfr. Part No.:
- 2455RP 9100-444 F70C
- Manufacturer:
- Honeywell
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
286 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR148.85
| Units | Per Unit |
| 1 - 14 | MYR148.85 |
| 15 - 49 | MYR145.72 |
| 50 + | MYR141.38 |
- RS Stock No.:
- 229-5963
- Mfr. Part No.:
- 2455RP 9100-444 F70C
- Manufacturer:
- Honeywell
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Basic Bi-MetallicThermostat
PPS Ryton body with steel end cap
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac
Electrical terminals parallel to the mounting face and a floating steel bracket to ease mounting and increase temperature tolerance
N/C types open on temperature rise, N/O types close on temperature rise
1/4in. tab termination
Contacts are rated to 250Vac 10A with a maximum contact resistance of 50mΩ
Dielectric strength of 2000Vac
Note
The contacts are NOT silver plated and are unsuitable for use with low current dc applications
Thermal Switches
Specifications
Attribute | Value |
|---|---|
| Minimum Temperature | 0°C |
| Maximum Temperature | +186°C |
| Opening Temperature | +55°C |
| Thermostat Type | Bi-Metallic |
| Closing Temperature | +70°C |
| Switch Configuration | NO |
| Contact Rating | 10A |
| Contact Voltage Rating | 250V ac |
| Terminal Type | Solder Tab |
| Reset Type | Automatic |
