- RS Stock No.:
- 872-2685
- Manufacturer:
- RS PRO
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR261.18
Units | Per Unit |
1 - 4 | MYR261.18 |
5 - 24 | MYR255.71 |
25 + | MYR210.46 |
- RS Stock No.:
- 872-2685
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

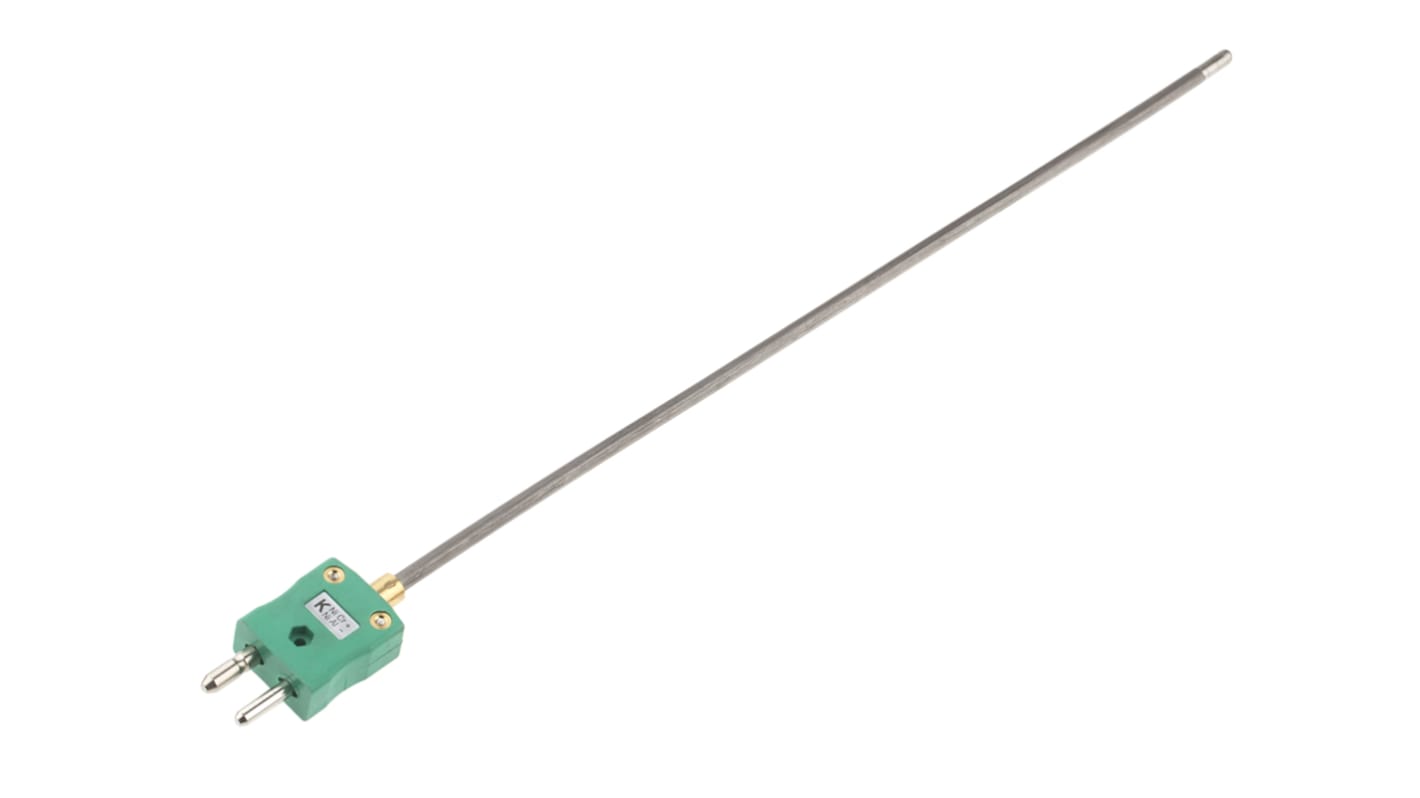

Type K or J Mineral Insulated Thermocouples with Standard Plug
Type K or J thermocouples with insulated hot junction (un-grounded) with highly flexible construction to suit many applications and processes.
Type K uses 310 stainless steel sheath; type J uses 321 stainless steel sheath
1.5, 3.0, 4.5 or 6.0 mm diameters available
Probe temperature range from -40 °C to +1100 °C
Standard plug termination (200 °C)
Conforms to IEC 584 specification
1.5, 3.0, 4.5 or 6.0 mm diameters available
Probe temperature range from -40 °C to +1100 °C
Standard plug termination (200 °C)
Conforms to IEC 584 specification
Specifications
Attribute | Value |
---|---|
Thermocouple Type | K |
Probe Diameter | 4.5mm |
Probe Length | 300mm |
Probe Material | Stainless Steel |
Maximum Temperature Sensed | +1100°C |
Termination Type | Standard Plug |
Standards Met | IEC |
