Product Details
Type J and K Probes and KNE Terminal Head Assembly
200400 and 600mm versions
Stainless steel sheath
Insulated tip junction
Aluminium IP67 terminal head
Push-in process connection
Stainless steel sheath
Insulated tip junction
Aluminium IP67 terminal head
Push-in process connection
Note
All have a temperature range of -100 to 1100°C

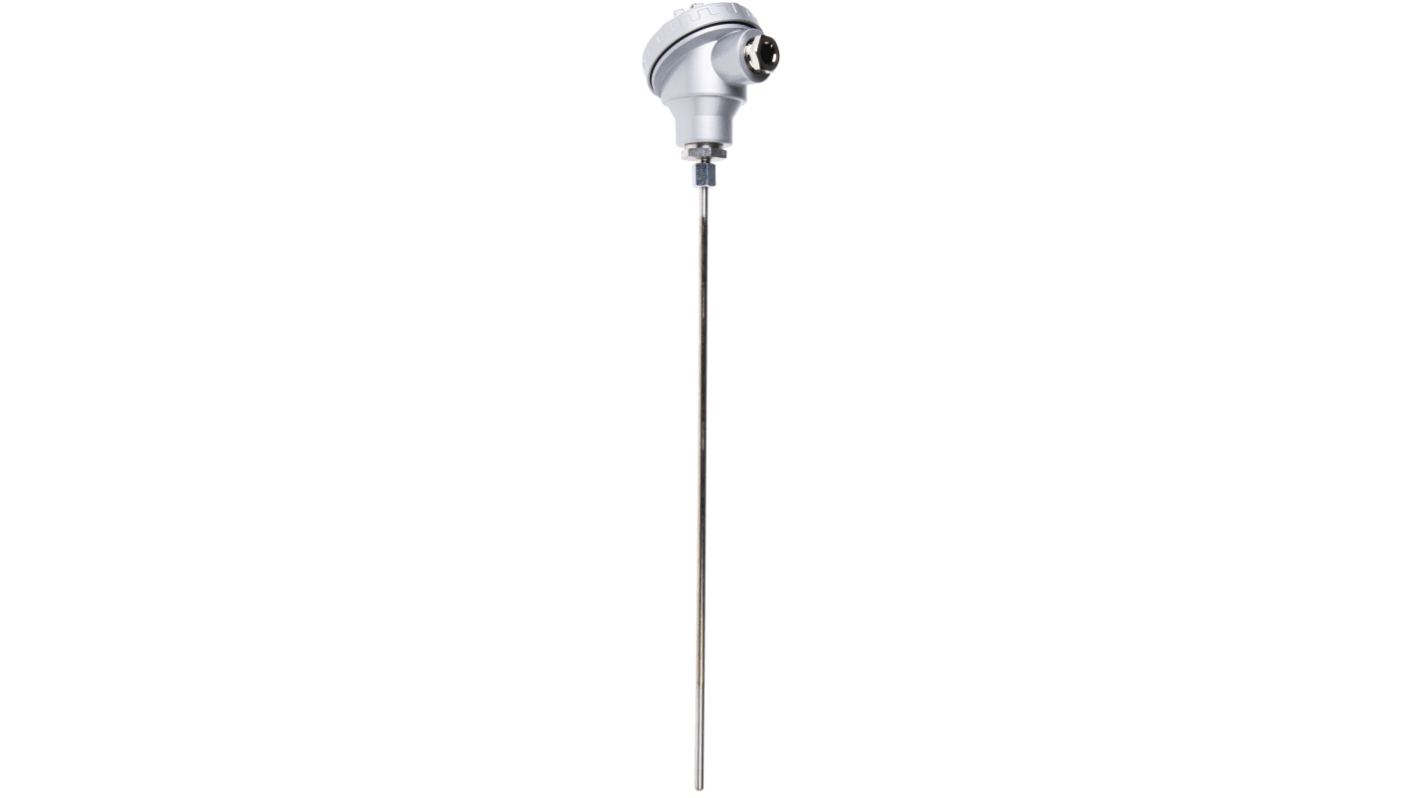

RS PRO Type J Thermocouple, +700°C, 400 mm Length, 6 mm Diameter
You can use this Type J thermocouple from RS PRO to measure changes in temperature. It has a five-second response time to give you a fast reading.
The thermocouple's probe is made from 316-grade stainless steel, so it's protected from rust and corrosion, providing a long working life. The material also has excellent heat resistance, allowing the unit to measure temperatures of up to +700°C.
This thermocouple has a measuring point formed from a positive iron conductor and a negative constantan (copper–nickel) one. These dissimilar alloys meet in a junction and create voltage when the temperature changes. This makes for highly accurate measurement. The product has an aluminium terminal head with an Ingress Protection (IP) rating of IP67, indicating that it's both dust-tight and waterproof. This means you can use it in harsh industrial settings or outdoors.
The thermocouple's probe is made from 316-grade stainless steel, so it's protected from rust and corrosion, providing a long working life. The material also has excellent heat resistance, allowing the unit to measure temperatures of up to +700°C.
This thermocouple has a measuring point formed from a positive iron conductor and a negative constantan (copper–nickel) one. These dissimilar alloys meet in a junction and create voltage when the temperature changes. This makes for highly accurate measurement. The product has an aluminium terminal head with an Ingress Protection (IP) rating of IP67, indicating that it's both dust-tight and waterproof. This means you can use it in harsh industrial settings or outdoors.
Features and Benefits
Maximum sensed temperature of +700°C
Probe diameter of 6 mm
Probe length of 400 mm
316L stainless steel probe material
Response time of 5 s
Meets RoHS (Restriction of Hazardous Substances) standards
Connection head termination type
Type J thermocouple
Probe diameter of 6 mm
Probe length of 400 mm
316L stainless steel probe material
Response time of 5 s
Meets RoHS (Restriction of Hazardous Substances) standards
Connection head termination type
Type J thermocouple
Specifications
Attribute | Value |
---|---|
Thermocouple Type | J |
Probe Diameter | 6mm |
Probe Length | 400mm |
Maximum Temperature Sensed | +700°C |
Probe Material | 316L Stainless Steel |
Termination Type | Connection Head |
Standards Met | RoHS Compliant |
Response Time | 5 s |
