Correge Type J Thermocouple 30mm Length, 5mm Diameter → +400°C
- RS Stock No.:
- 547-7786
- Mfr. Part No.:
- PTC5/2500/J/SCI/2TJ06C03/VERROU/12X14
- Manufacturer:
- Correge
7 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
33 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR285.19
| Units | Per Unit |
| 1 + | MYR285.19 |
- RS Stock No.:
- 547-7786
- Mfr. Part No.:
- PTC5/2500/J/SCI/2TJ06C03/VERROU/12X14
- Manufacturer:
- Correge
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- FR
Product Details

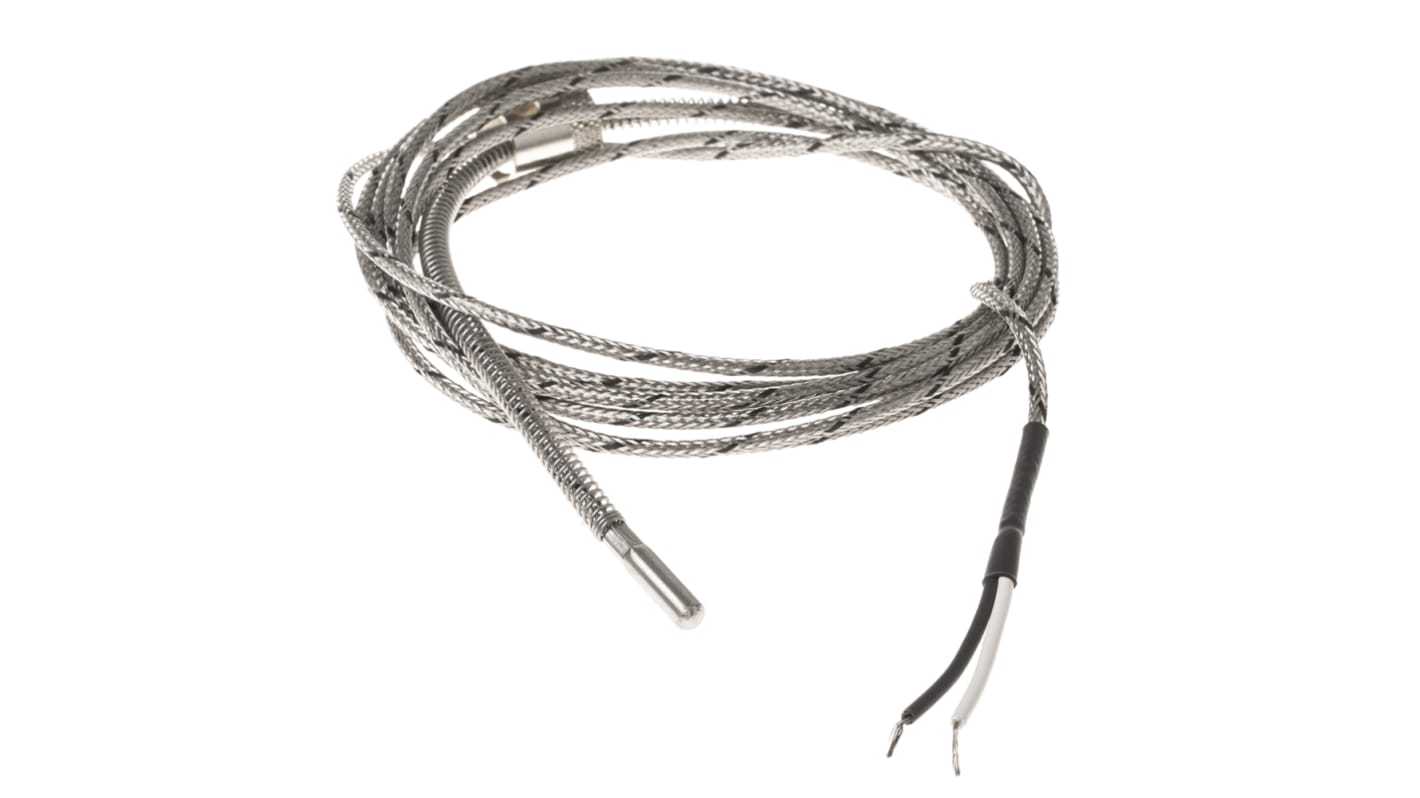

Bayonet type J thermocouple probe
Insulated type J thermocouple probe.
12 x 14 mm two-slot, bayonet connection in nickel-plated brass
Bayonet can be adjusted from 30 and 180 mm.
316L stainless steel protective sleeve, Ø 5 x 1 mm, length 20 mm.
12 x 14 mm two-slot, bayonet connection in nickel-plated brass
Bayonet can be adjusted from 30 and 180 mm.
316L stainless steel protective sleeve, Ø 5 x 1 mm, length 20 mm.
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | J |
| Probe Diameter | 5mm |
| Probe Length | 30mm |
| Maximum Temperature Sensed | +400°C |
| Probe Material | Stainless Steel |
| Termination Type | Cable |
| Cable Length | 2.5m |
| Standards Met | IEC |
| Response Time | 0.7 s |
