Correge Type J Thermocouple 35mm Length, 2.5mm diameter, 0°C → +600°C

  • RS Stock No. 547-7764
  • Mfr. Part No. PTC5R/2000
  • Manufacturer Correge
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

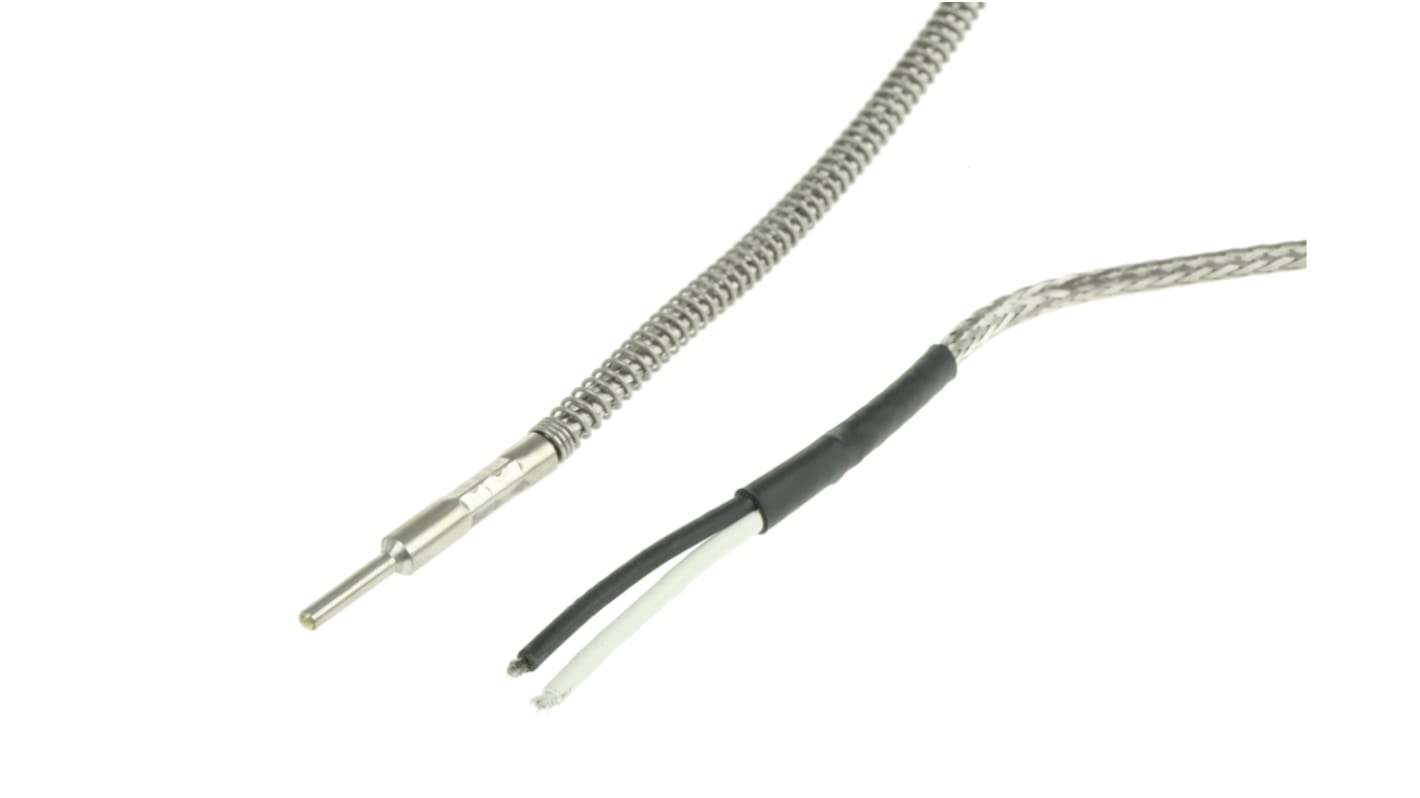

Bayonet type J thermocouple probe (3)

Two-slot bayonet type J thermocouple probe for the plastics industry.
10 x 15 mm nickel-plated bayonet connection.
Hot solder insulated from the earth.
Bayonet can be adjusted from 40 to 200mm.
316L stainless steel protective sheath, Ø 5 x 25 mm, with shrinkage Ø 2.5x12 mm.

Specifications
Attribute Value
Thermocouple Type J
Probe Diameter 2.5mm
Probe Length 35mm
Probe Material Stainless Steel
Maximum Temperature Sensed +600°C
Termination Type Cable
Cable Length 2m
Standards Met IEC
Response Time 0.7 s
4 Within 4 working day(s) (Global stock)
6 Within 4 working day(s) (Global stock)
Price Each
MYR 191.65
units
Per unit
1 +
MYR191.65
