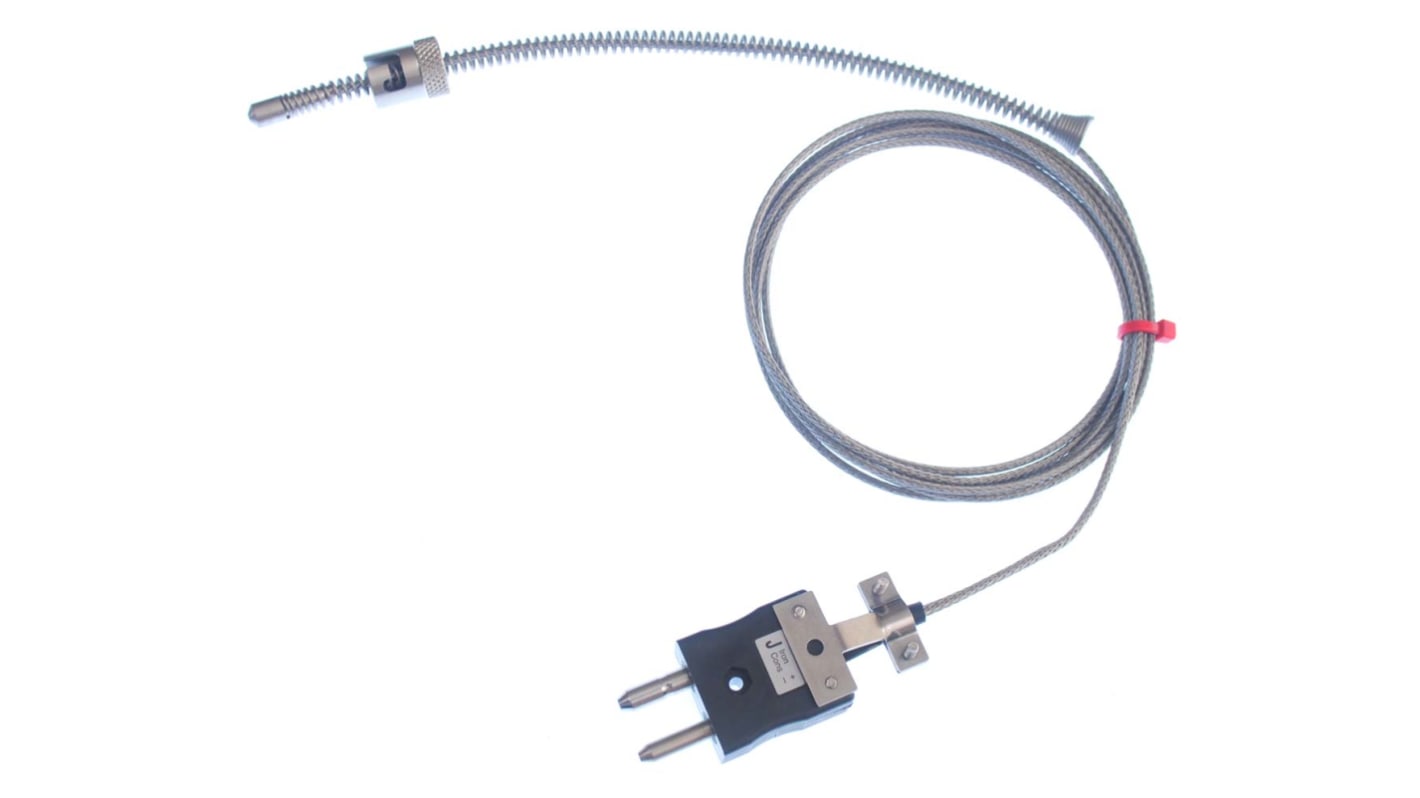

RS PRO Type J Thermocouple 2m Length, 6mm Diameter → +350°C
- RS Stock No.:
- 131-4763
- Manufacturer:
- RS PRO
20 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR260.54
| Units | Per Unit |
| 1 - 4 | MYR260.54 |
| 5 - 24 | MYR253.22 |
| 25 + | MYR208.41 |
- RS Stock No.:
- 131-4763
- Manufacturer:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Type K or J Adjustable Bayonet Thermocouples
Thermocouple with adjustable insertion depth
6.0 mm diameter tip
170 mm spring with adjustable fixing cap (11.5 mm I.D. single slot)
Glassfibre insulated lead with stainless steel overbraid, 7/0.2mm
Rated 350°C
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Type J or K available
6.0 mm diameter tip
170 mm spring with adjustable fixing cap (11.5 mm I.D. single slot)
Glassfibre insulated lead with stainless steel overbraid, 7/0.2mm
Rated 350°C
Fitted with cable clamps and standard thermocouple plug
Good temperature resistance but not suitable where fluids are present
Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3
Type J or K available
Specifications
Attribute | Value |
|---|---|
| Thermocouple Type | J |
| Probe Diameter | 6mm |
| Probe Length | 2m |
| Maximum Temperature Sensed | +350°C |
| Termination Type | Standard Plug |
| Cable Length | 2m |
| Standards Met | IEC |
