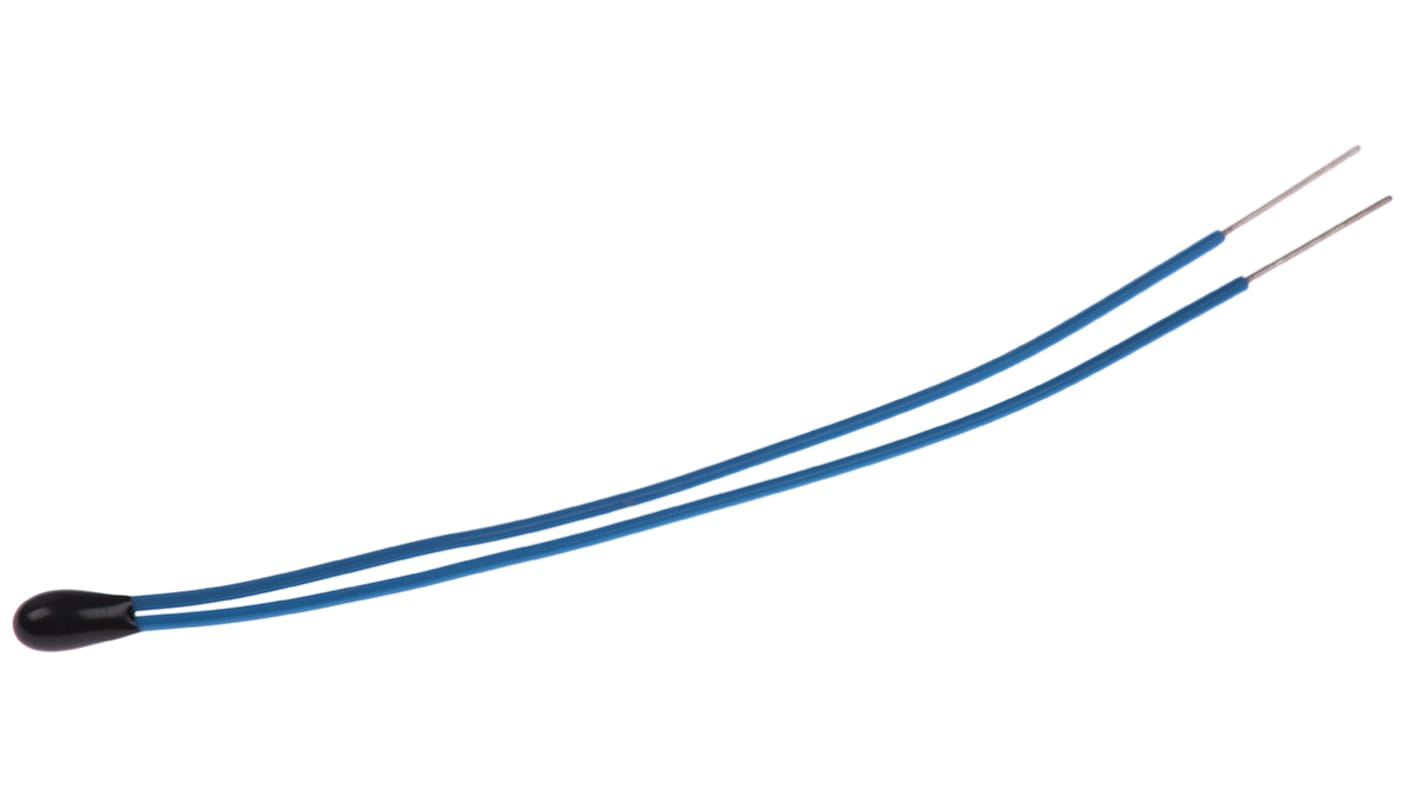

EPCOS Thermistor, 3kΩ Resistance, NTC Type, 2.41 x 6.5mm
- RS Stock No.:
- 167-8225
- Mfr. Part No.:
- B57861S0302J040
- Manufacturer:
- EPCOS
1000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Box of 1000)
MYR4.171
| Units | Per Unit | Per Box* |
| 1000 + | MYR4.171 | MYR4,171.00 |
| *price indicative | ||
- RS Stock No.:
- 167-8225
- Mfr. Part No.:
- B57861S0302J040
- Manufacturer:
- EPCOS
Technical data sheets
Legislation and Compliance
Product Details
Epcos Miniature Sensor S861 Series
From Epcos, this S861 Series of miniature encapsulated NTC bead thermistors and feature high measuring accuracy and a fast thermal response. The S861 series thermistors are for temperature sensing and measurement applications.
Features and Benefits:
• Resistance tolerance ±5% J40 type, ±1% F40 type
• Fast thermal response
• High measuring accuracy
• Epoxy resin encapsulation
• PTFE insulated silver-plated nickel wire leads
• Maximum power dissipation: 60mW @ 25°C
• Dissipation Factor (In Air): 1.5 mW/C (Approx.)
• Thermal time constant (In Air): 15 seconds (Approx.)
• Body Size: 2.41Ø x x 6.5mm
• Resistance tolerance ±5% J40 type, ±1% F40 type
• Fast thermal response
• High measuring accuracy
• Epoxy resin encapsulation
• PTFE insulated silver-plated nickel wire leads
• Maximum power dissipation: 60mW @ 25°C
• Dissipation Factor (In Air): 1.5 mW/C (Approx.)
• Thermal time constant (In Air): 15 seconds (Approx.)
• Body Size: 2.41Ø x x 6.5mm
Note
Beta values shown are for the temperature range 25-100°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Series | B57861S |
| Temperature Coefficient Type | NTC |
| Thermal Coefficient | 4.4%/°C |
| Thermal Time Constant | 15s |
| Resistance @ 25 °C | 3kΩ |
| Tolerance | ±5% |
| Maximum Power Rating | 60mW |
| Depth | 2.41mm |
| Height | 6.5mm |
| Dimensions | 2.41 x 6.5mm |
| Maximum Operating Temperature | +155°C |
| Minimum Operating Temperature | -55°C |
