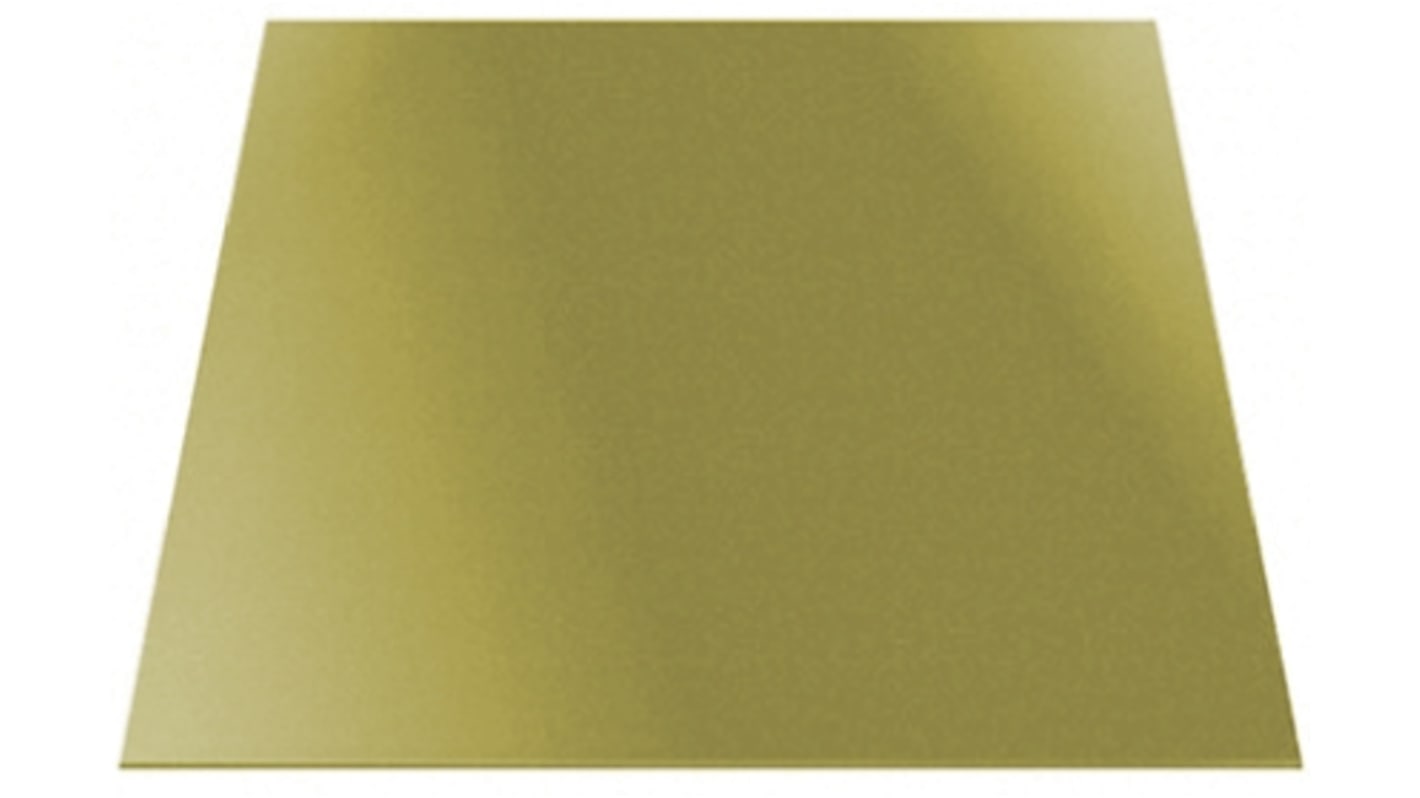

RS PRO Thermal Interface Sheet, 3mm Thick, 4W/m·K, Non-Silicone, 150 x 150mm
- RS Stock No.:
- 722-6741
- Manufacturer:
- RS PRO
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR739.69
| Units | Per Unit |
| 1 - 24 | MYR739.69 |
| 25 - 49 | MYR724.13 |
| 50 - 99 | MYR702.40 |
| 100 + | MYR681.34 |
- RS Stock No.:
- 722-6741
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
RS Series Non-Silicone Thermally Conductive Gap Filler: Red
Low contact thermal impedance
High thermal conductivity
Silicone-free
Long-term stability
Flame rating V - 1 (UL 94)
High thermal conductivity
Silicone-free
Long-term stability
Flame rating V - 1 (UL 94)
Specifications
Attribute | Value |
|---|---|
| Dimensions | 150 x 150mm |
| Thickness | 3mm |
| Length | 150mm |
| Width | 150mm |
| Thermal Conductivity | 4W/m·K |
| Material | Non-Silicone |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +105°C |
| Hardness | Shore OO 80 |
| Colour | Red |
| Operating Temperature Range | -40 → +105 °C |
