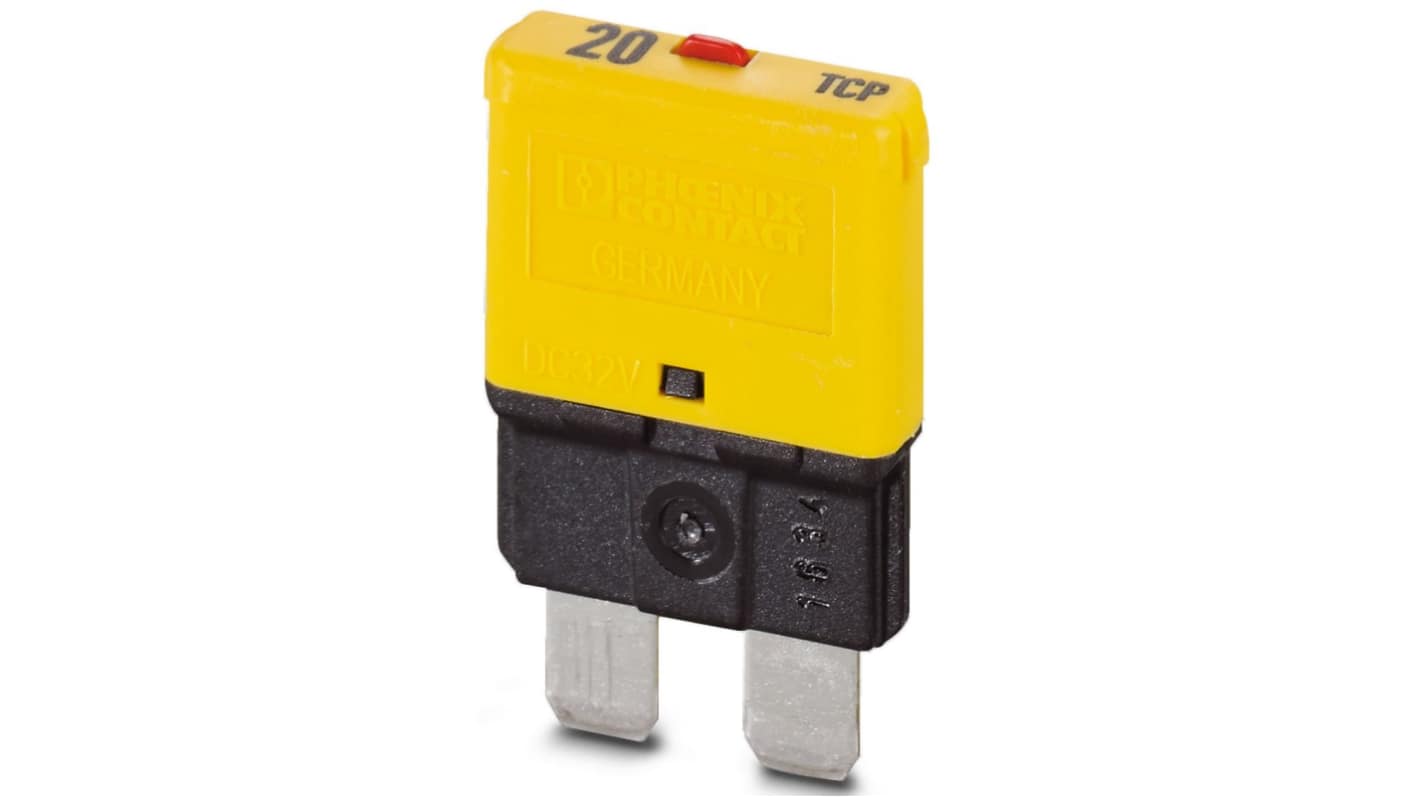

Phoenix Contact Thermal Circuit Breaker - TCP 20/DC32V Single Pole 32V dc Voltage Rating, 20A Current Rating
- RS Stock No.:
- 652-3414
- Mfr. Part No.:
- 0700020
- Manufacturer:
- Phoenix Contact
- RS Stock No.:
- 652-3414
- Mfr. Part No.:
- 0700020
- Manufacturer:
- Phoenix Contact
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
Phoenix Contact TCP Thermal Circuit Breakers
The compact, single pole, snap-in TCP series of thermal device circuit breakers combine a flat fuse safety guard mechanism with the advantages of an automatic circuit breaker.
Features and Benefits
Rearm function on top
Can be used in all battery systems up to 32 V dc
Standard Terminal for DIN Rail Mounted Fuseholder can be ordered separately
Precise nominal current levels
6mm wide
Suitable for all flat-type fuse inserts
Immediate restart after tripping
Can be used in all battery systems up to 32 V dc
Standard Terminal for DIN Rail Mounted Fuseholder can be ordered separately
Precise nominal current levels
6mm wide
Suitable for all flat-type fuse inserts
Immediate restart after tripping
Typical Applications
The automotive thermal circuit breakers are suitable for using with system based sensors and actuators. Typically motors, devices with a high starting current, fans and heating elements.
Specifications
Attribute | Value |
---|---|
Current Rating | 20A |
Number of Poles | 1 |
Voltage Rating | 32V dc |
Width | 6mm |
Series | TCP 20/DC32V |
Overall Length | 20.3mm |
Overall Depth | 24mm |
Overall Dimensions | 24 x 6 x 20.3mm |
Circuit Breaker Type | Thermal Automotive Circuit Breaker |
Breaking Capacity at Maximum Voltage Rating | 150 A |
