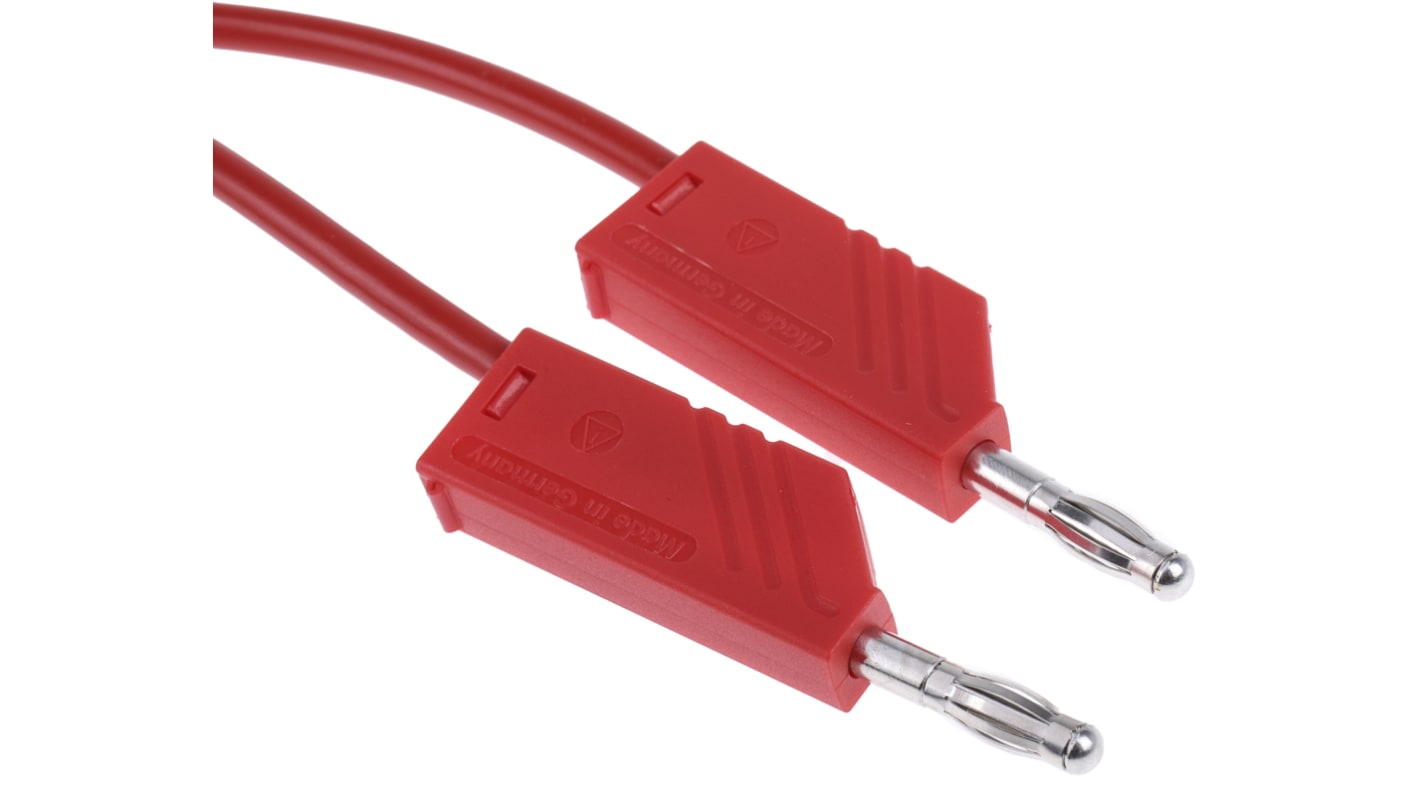

Hirschmann Test & Measurement Test lead, 32A, 60V dc, Red, 1m Lead Length
- RS Stock No.:
- 343-3497
- Mfr. Part No.:
- 934063101
- Manufacturer:
- Hirschmann Test & Measurement
300 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR47.07
| Units | Per Unit |
| 1 - 49 | MYR47.07 |
| 50 - 99 | MYR45.87 |
| 100 + | MYR44.59 |
- RS Stock No.:
- 343-3497
- Mfr. Part No.:
- 934063101
- Manufacturer:
- Hirschmann Test & Measurement
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details
MLN 2.5 Stackable 4mm Measuring Leads
Hirschmann Test and Measurement MLN 2.5, 4mm measuring leads have at either end a 4mm diameter plug with caged spring and 4mm diameter socket for tower construction. These measuring and test leads have a nickel or gold plated, copper beryllium contact spring, highly flexible,double insulated stranded lead and a shatter-proof sleeve. The test lead cable has a built in colour indicator for easy identification of insulation damage by means of a different coloured inner core of insulation.
Rated voltage 30 VAC / 60 VDC
Rated current 32A
CAT I
PVC Insulated
Wire stranding 320 x 0.10mm
Contact resistance 12mΩ (100cm) 20mΩ (200cm)
Rated current 32A
CAT I
PVC Insulated
Wire stranding 320 x 0.10mm
Contact resistance 12mΩ (100cm) 20mΩ (200cm)
Note
All manufacturing part numbers ending in 7** are gold plated variants.
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Lead Length | 1m |
| Current Rating | 32A |
| Colour | Red |
| Voltage Rating | 60V dc |
| Connector A Gender | Male |
| Connector B Gender | Male |
| Connector A Orientation | Straight |
| Connector B Orientation | Straight |
| Contact Material | Beryllium Copper, Brass |
| Insulation Material | PVC |
| Operating Temperature Range | -15 → +70 °C |
| Minimum Operating Temperature | -15°C |
| Maximum Operating Temperature | +70°C |
