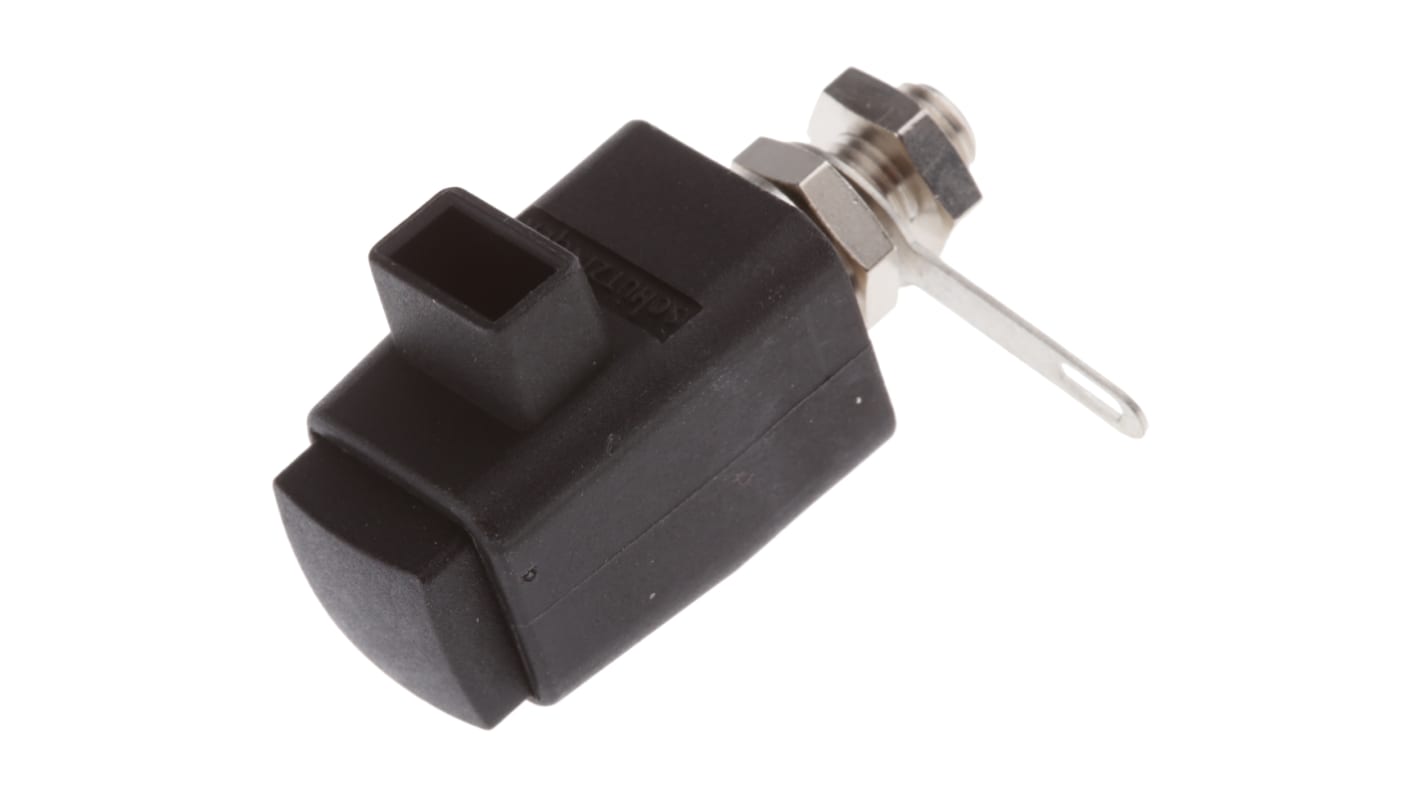

Schutzinger Black Terminal Post, 300V, 16A

  • RS Stock No. 230-6259
  • Mfr. Part No. SDK801 BLK
  • Manufacturer Schutzinger
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Quick-Connect Panel Terminal

Safety quick-connect terminal for panel mounting. The strong (thumb pressure) button is depressed to insert the conductor that is then gripped upon release of the button. Contact material Nickel plated brass. Available with either 2.8mm x 0.5mm solder termination or 6.3mm x 0.8mm tab termination.,CAT II 300V Rated

//media.rs-online.com/t_line/L230626-01.gif
//media.rs-online.com/t_line/LD230626-01.gif
//media.rs-online.com/t_line/LE230626-01.gif
//media.rs-online.com/t_line/LF230623-10.gif
Specifications
Attribute Value
Colour Black
Current Rating 16A
Voltage Rating 300V
Insulated Yes
Maximum Panel Thickness 5mm
129 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR56.96
MYR 32.51
units
Per unit
1 - 14
MYR32.51
15 - 49
MYR29.22
50 - 99
MYR26.32
100 - 249
MYR23.66
250 +
MYR21.33
