Siretta Antenna DELTA12A/x/SMAM/S/S/17, Whip SMA 458MHz 433MHz

  • RS Stock No. 124-8670
  • Mfr. Part No. DELTA12A/x/SMAM/S/S/17
  • Manufacturer Siretta
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

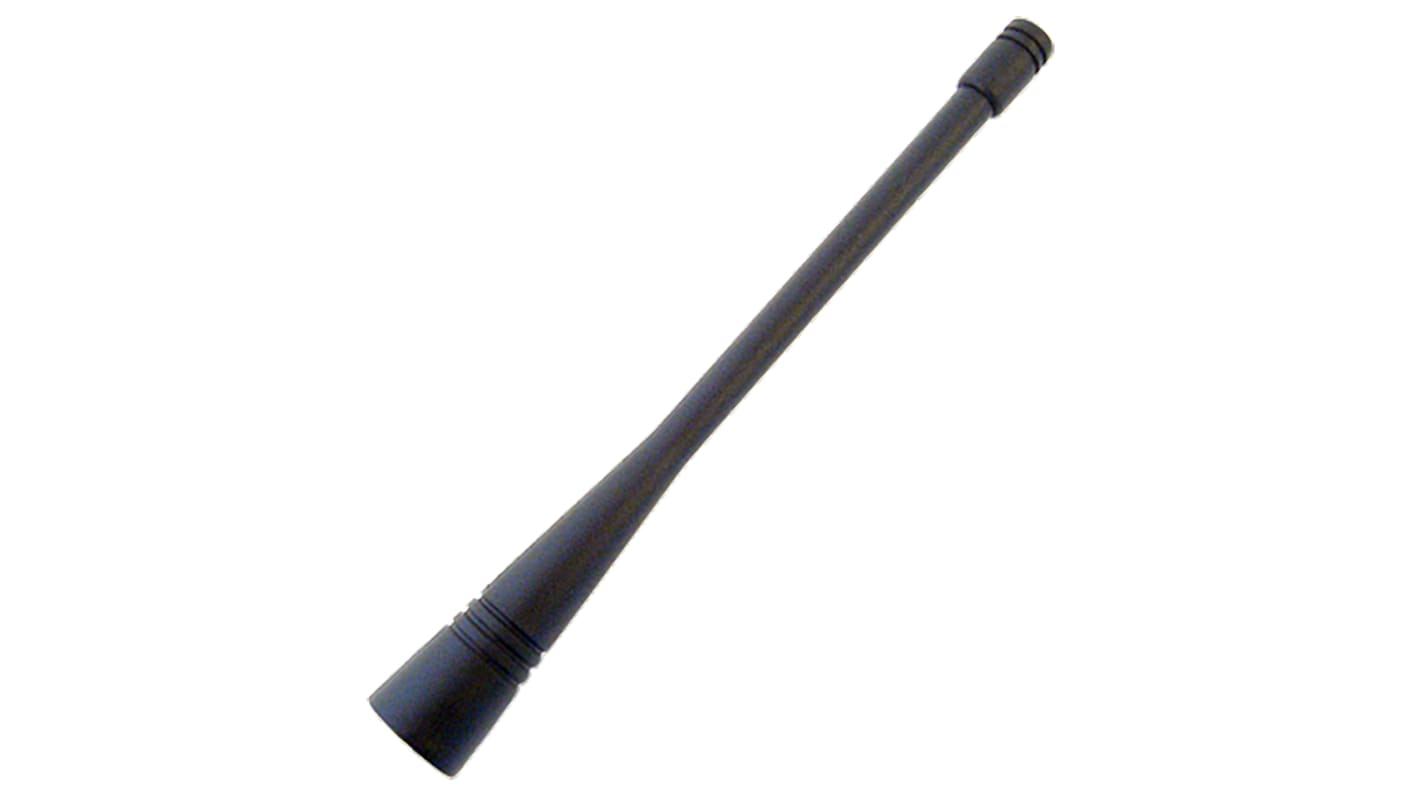

DELTA12A - 433/458 MHz Whip Antenna

The Delta 12A ISM band antennas are tuned for 433/458 MHz frequencies. The 1/4 wave whip antenna is housed in flexible rubber with the connector moulded in.

Available with 2 different connectors:

DELTA12A/x/BNCM/S/S/17 - BNC Male connector (RS 124-8669)
DELTA12A/x/SMAM/S/S/17 - SMC Male connector (RS 124-8670)

Temperature range: -30 to +75˚C
Impedance: 50 Ω
Gain: 3 dBi
VSWR: ≤ 2.0:1
Max input power: 50 W
Freq. range: ISM bands 433/458 MHz
Polarisation: Vertical
Radiating element: 1/4 wave whip
Dimensions: 130 mm
Connector: SMA Male or BNC Male
Housing: Black rubber

433MHz Antenna

Specifications
Attribute Value
Antenna Style Whip
Connector Type SMA
Antenna Length 130mm
Maximum Frequency 458MHz
Minimum Frequency 433MHz
Series DELTA 12A
5 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 55.38
units
Per unit
1 - 9
MYR55.38
10 +
MYR52.49
