RS PRO 4.7μF Electrolytic Tantalum Electrolytic Capacitor 10V dc

RS Stock No.:: 181-4700
Manufacturer:: RS PRO

RS PRO 4.7μF Electrolytic Tantalum Electrolytic Capacitor 10V dc

1850 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 50)

MYR1.542

Units	Per Unit	Per Pack*
50 - 200	MYR1.542	MYR77.10
250 - 1200	MYR1.361	MYR68.05
1250 +	MYR1.12	MYR56.00
*price indicative

RS Stock No.:: 181-4700
Manufacturer:: RS PRO

Technical data sheets

RS PRO Datasheet

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

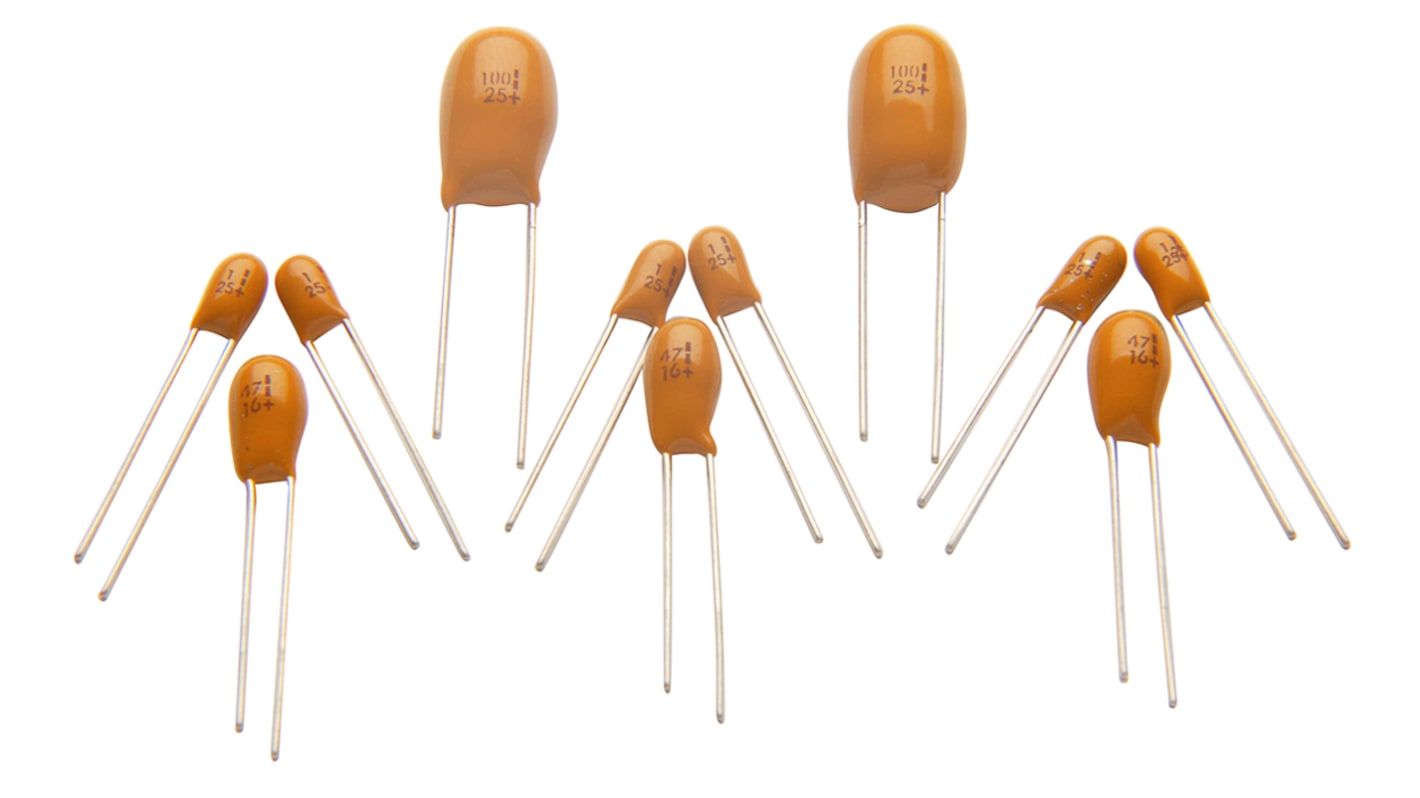

RS PRO Tantalum Capacitor

The RS PRO CB series 4.7μF epoxy-coated solid electrolytic tantalum capacitor has a voltage rating of 10VDC and a leakage current of 500nA. It has dimensions of 4.5mm x 4.5mm x 7mm x 0.5mm (L x D x H x lead diameter).

Features and Benefits

• Tolerance: ±20%
• Operating temperature ranges between -55°C and +125°C
• Life test: 1000 hours
• Lead pitch: 2.5mm
• Dissipation factor: Less than 0.06%
• Through hole mount
• Package/Case: A
• Positive polarized

Applications

• Electronics industry

Certifications

• ANSI/ESD S20.20: 2014
• BS EN 61340-5-1: 2007

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Technology	Electrolytic
Capacitance	4.7µF
Voltage	10V dc
Mounting Type	Through Hole
Package/Case	A
Lead Pitch	2.5mm
Tolerance	±20%
Length	4.5mm
Depth	4.5mm
Height	7mm
Dimensions	4.5 x 4.5 x 7mm
Electrolyte Type	Solid
Maximum Operating Temperature	+125°C
Tolerance Minus	-20%
Polarised	Positive
Lead Diameter	0.5mm
Tolerance Plus	+20%
Dielectric Material Family	Tantalum
Minimum Operating Temperature	-55°C
Dissipation Factor	<lteq/>0.06%
Leakage Current	500 nA
