- RS Stock No.:
- 917-4056
- Mfr. Part No.:
- SKQBARA010
- Manufacturer:
- Alps Alpine
90 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Bag of 10)
MYR3.107
Units | Per Unit | Per Bag* |
10 - 40 | MYR3.107 | MYR31.07 |
50 - 90 | MYR3.014 | MYR30.14 |
100 - 240 | MYR2.921 | MYR29.21 |
250 - 490 | MYR2.859 | MYR28.59 |
500 + | MYR2.798 | MYR27.98 |
*price indicative |
- RS Stock No.:
- 917-4056
- Mfr. Part No.:
- SKQBARA010
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

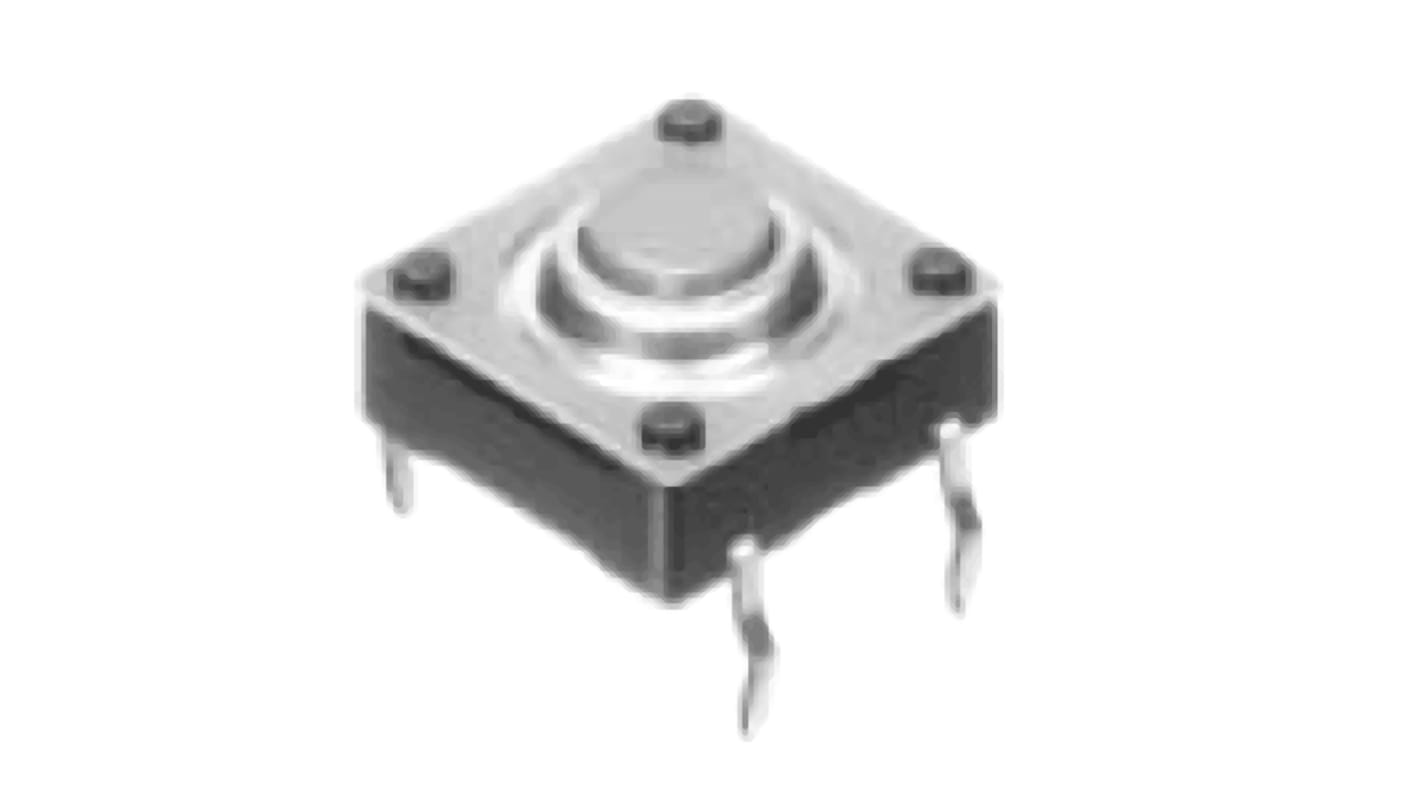

Alps SKQB Series Tactile Switch
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Tactile
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Terminal Type | Pc Pin |
Switch Operation | Momentary |
Actuator Length | 0.85mm |
Actuator Colour | Grey |
Actuator Type | Button |
Length | 10mm |
Width | 10mm |
Dimensions | 10 x 10 x 5mm |
Illuminated | No |
Mounting Type | Snap-In |
Contact Current Rating | 50 mA |
Operating Force | 1.57 N |
Height | 5mm |
Voltage Rating | 12V dc |
Maximum Operating Temperature | +90°C |
Operating Temperature Range | -40 → +90°C |
Minimum Operating Temperature | -40°C |
Mechanical Life | 100000Cycles |
