- RS Stock No.:
- 917-3839
- Mfr. Part No.:
- SKTDLDE010
- Manufacturer:
- Alps Alpine
290 In Global stock for delivery in 4-6 working days for West Malaysia, 5-8 working days for Free Trade Zone, and 7-10 working days for East Malaysia.
Price Each (In a Bag of 10)
MYR2.024
units | Per Unit | Per Bag* |
10 - 40 | MYR2.024 | MYR20.24 |
50 - 90 | MYR1.982 | MYR19.82 |
100 - 240 | MYR1.923 | MYR19.23 |
250 - 490 | MYR1.876 | MYR18.76 |
500 + | MYR1.835 | MYR18.35 |
*price indicative |
- RS Stock No.:
- 917-3839
- Mfr. Part No.:
- SKTDLDE010
- Manufacturer:
- Alps Alpine
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- JP
Product Details

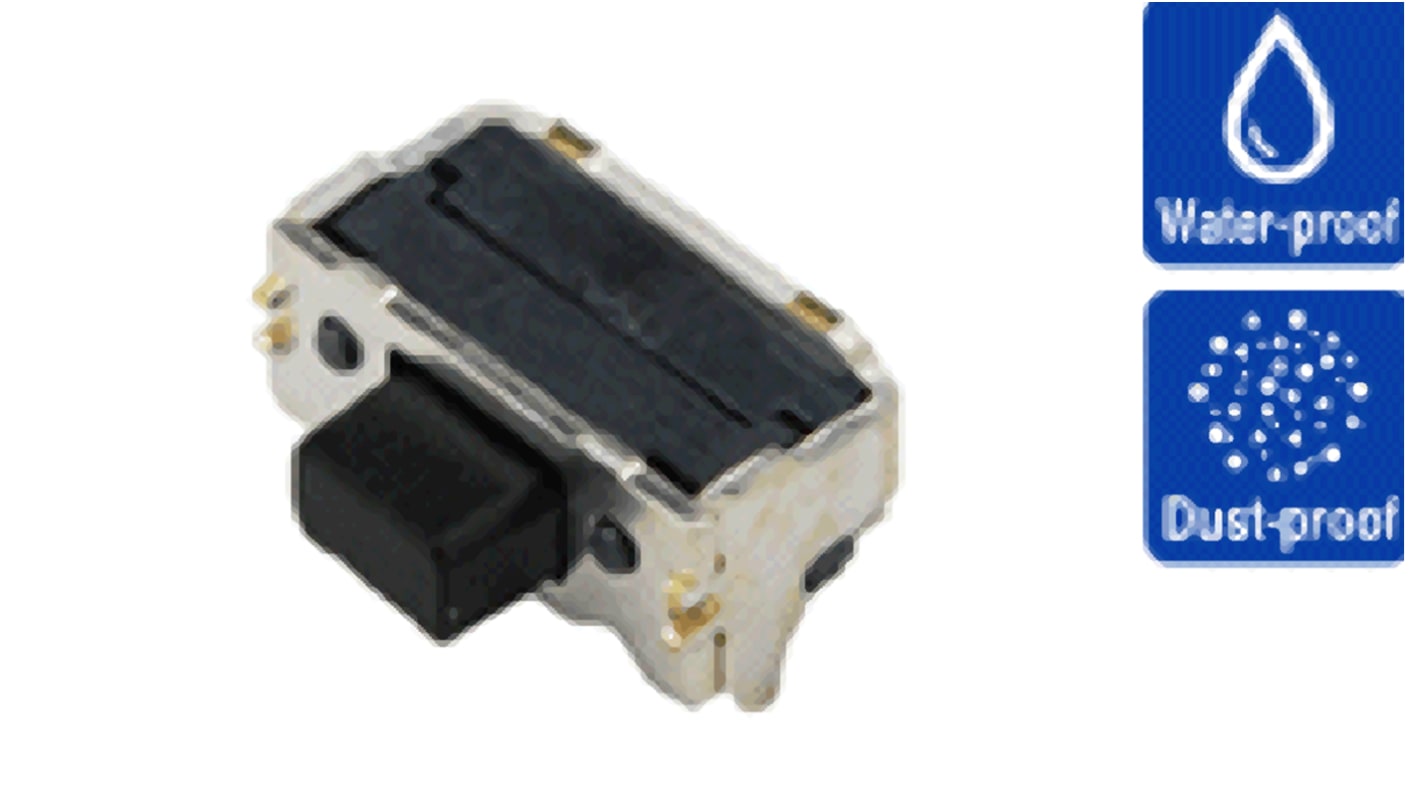

Alps SKTD Series Tactile Switch
Alps Tactile or Tact switches are SPST snap action switches to be used with small currents. This series also provide a minimum rating of 10 μA at 1 V dc and a maximum rating of 50 mA at 12 V dc. These Tact switches have SMT terminals, low contact resistance, high contact reliability and come in a wide selection of operating forces and switching travels.
Suitable for use in a wide variety of applications, such as audio & visual equipment and automotive applications.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Available in various actuator types, such as flat stems & joint stems.
Various actuator colours are also available, to ensure your application is covered.
Tactile
Specifications
Attribute | Value |
---|---|
Contact Configuration | SPST |
Switch Operation | Momentary |
Actuator Length | 0.95mm |
Actuator Colour | Black |
Actuator Type | Button |
Length | 3.9mm |
Width | 2.9mm |
Dimensions | 3.9 x 2.9mm |
Illuminated | No |
Mounting Type | Surface Mount |
Contact Current Rating | 50 mA |
IP Rating | IP67 |
Operating Force | 1.6 N |
Height | 1.55mm |
Voltage Rating | 12V dc |
Operating Temperature Range | -30 → +85°C |
Maximum Operating Temperature | +85°C |
Minimum Operating Temperature | -30°C |
Mechanical Life | 200000Cycles |
