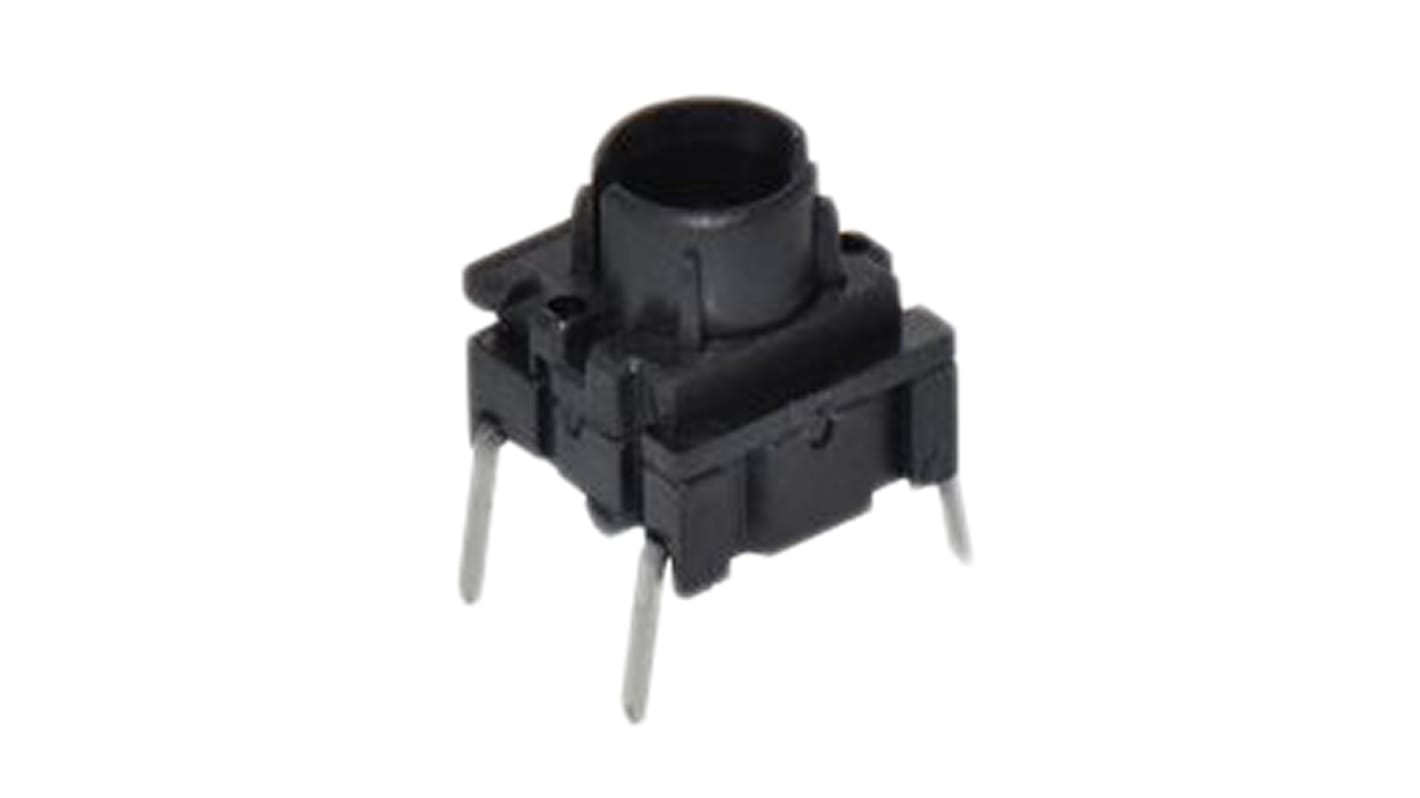

IP67 Green, Red Side Cap Tactile Switch, SPST 50 mA 6.5 (Dia.)mm PCB
- RS Stock No.:
- 912-0421
- Mfr. Part No.:
- 3FTH98020
- Manufacturer:
- MEC
Stock check temporarily unavailable - call for stock availability
Added
Price Each (In a Tube of 50)
MYR30.895
| Units | Per Unit | Per Tube* |
| 50 - 50 | MYR30.895 | MYR1,544.75 |
| 100 - 200 | MYR29.968 | MYR1,498.40 |
| 250 - 450 | MYR29.041 | MYR1,452.05 |
| 500 - 950 | MYR28.423 | MYR1,421.15 |
| 1000 + | MYR27.805 | MYR1,390.25 |
| *price indicative | ||
- RS Stock No.:
- 912-0421
- Mfr. Part No.:
- 3FTH98020
- Manufacturer:
- MEC
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® 3F Switches
SPNO momentary action
Sealed to IP67
Sealed to IP67
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Green, Red |
| Actuator Type | Side Cap |
| Length | 12.5mm |
| Width | 10.4mm |
| Dimensions | 12.5 x 10.4mm |
| Illuminated | Yes |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Voltage Rating | 24V dc |
| Operating Temperature Range | -40 → +160°C |
| Maximum Operating Temperature | +160°C |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 10000000Operations |
