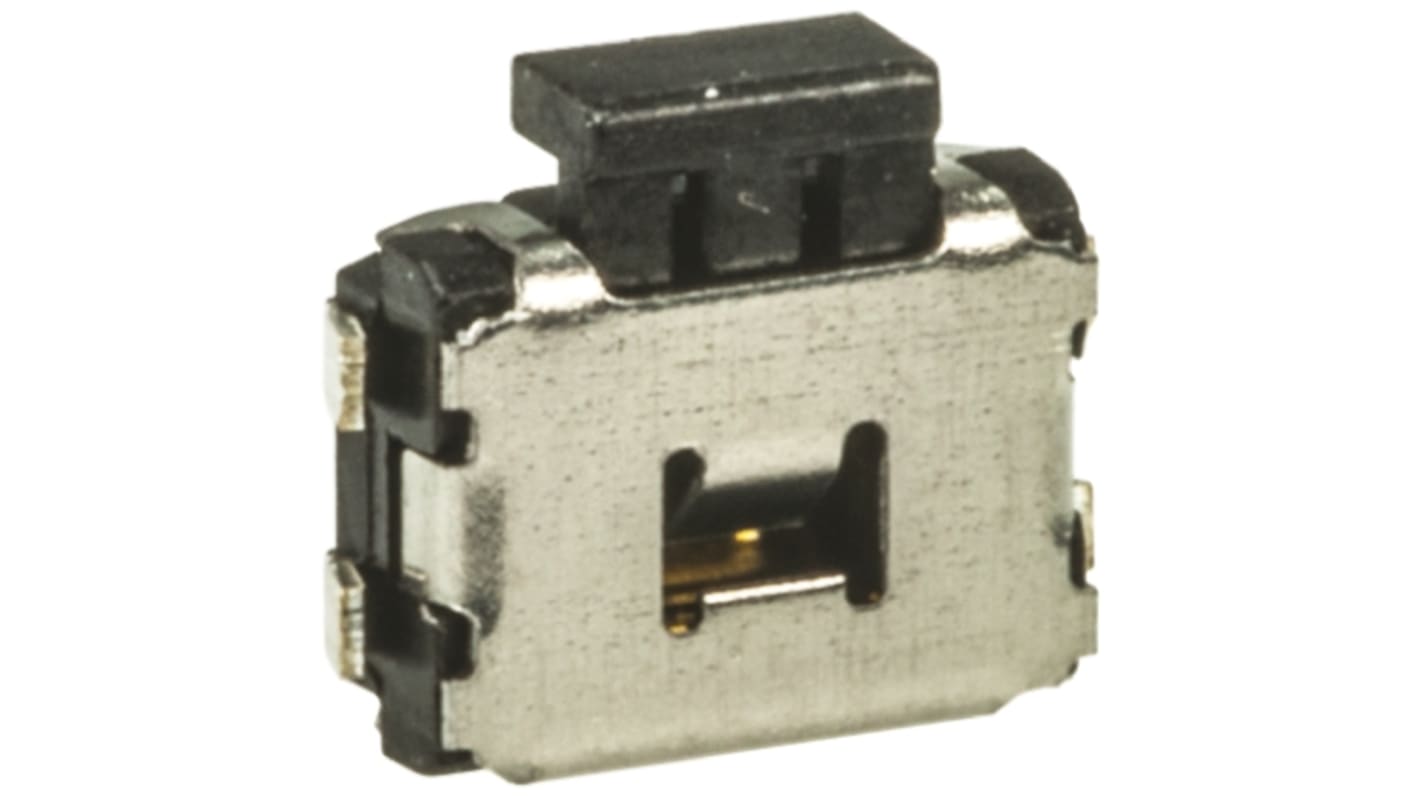

Black Tactile Switch, SPST 50 mA @ 12 V dc 2.6mm Surface Mount
- RS Stock No.:
- 785-6453
- Mfr. Part No.:
- 436333045822
- Manufacturer:
- Wurth Elektronik
14 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR3.11
| Units | Per Unit |
| 1 + | MYR3.11 |
- RS Stock No.:
- 785-6453
- Mfr. Part No.:
- 436333045822
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Tactile Switch WS-TUS
Stainless Steel cover
Silver clad Stainless Steel contact
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C
Silver clad Stainless Steel contact
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder |
| Switch Operation | Momentary |
| Actuator Length | 2.6mm |
| Actuator Colour | Black |
| Actuator Type | Tactile |
| Length | 4.7mm |
| Width | 4.5mm |
| Dimensions | 4.5 x 4.7mm |
| Illuminated | No |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA @ 12 V dc |
| Voltage Rating | 12V dc |
| Height | 1.65mm |
| Operating Force | 220 g |
| Contact Material | Stainless Steel |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
| Mechanical Life | 100000Cycles |
| Minimum Operating Temperature | -40°C |
