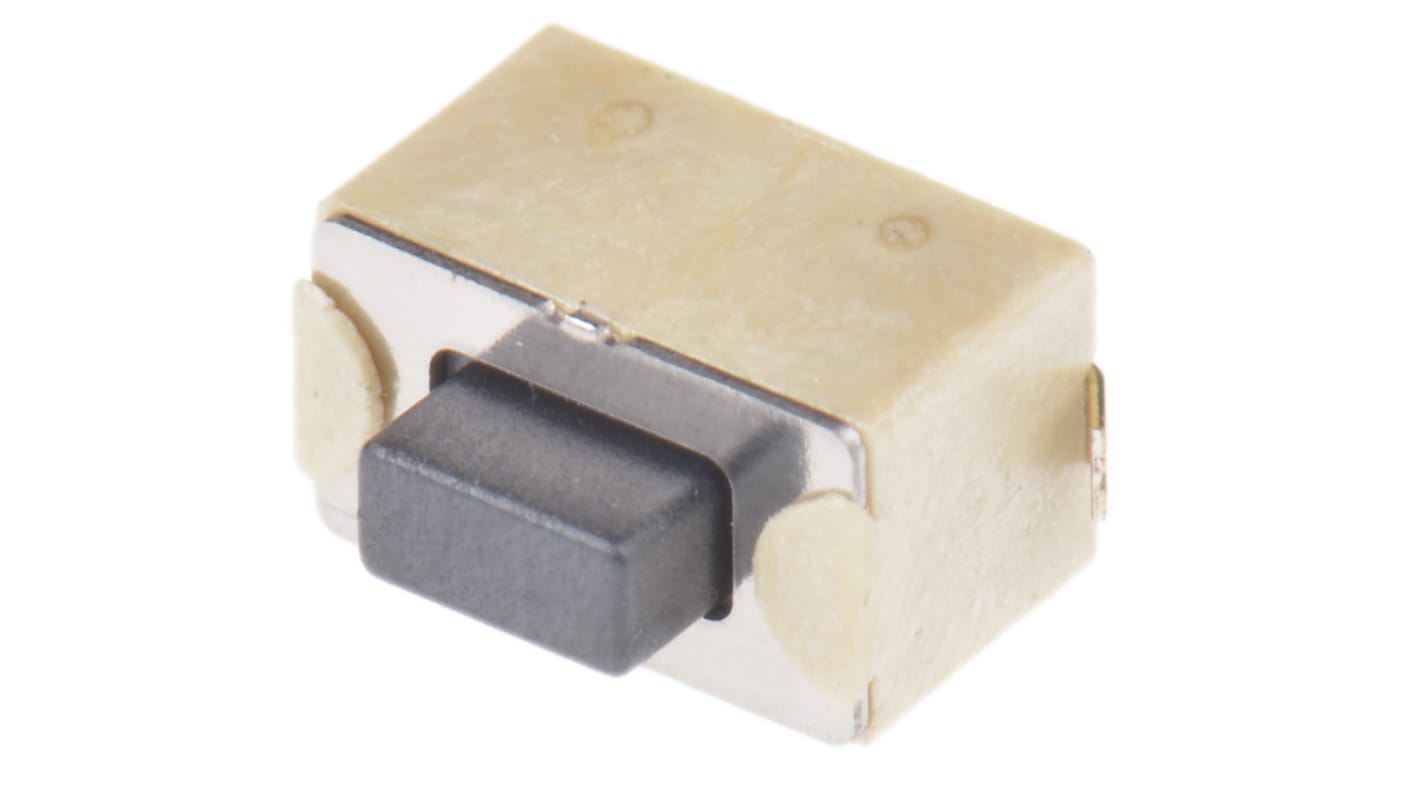

Black Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 1.5mm Surface Mount

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Tactile Switch WS-TRS

Stainless Steel cover
Silver cladded Stainless Steel contacts
Reflow soldering according to JEDEC J-STD 020 Hot Air
Operating temperature range -40°C to +85°C

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Solder
Switch Operation Momentary
Actuator Length 1.5mm
Actuator Colour Black
Actuator Type Tactile
Length 6mm
Width 3.5mm
Dimensions 6 x 3.5 x 5mm
Mounting Type Surface Mount
Contact Current Rating 50 mA @ 12 V dc
Operating Force 160 g
Maximum Operating Temperature +85°C
Mechanical Life 50000Cycles
Contact Material Stainless Steel
Operating Temperature Range -40 → +85°C
Minimum Operating Temperature -40°C
Voltage Rating 12V dc
Height 5mm
57 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 2.82
units
Per unit
1 - 24
MYR2.82
25 - 49
MYR2.71
50 - 99
MYR2.59
100 - 399
MYR2.44
400 +
MYR2.36
