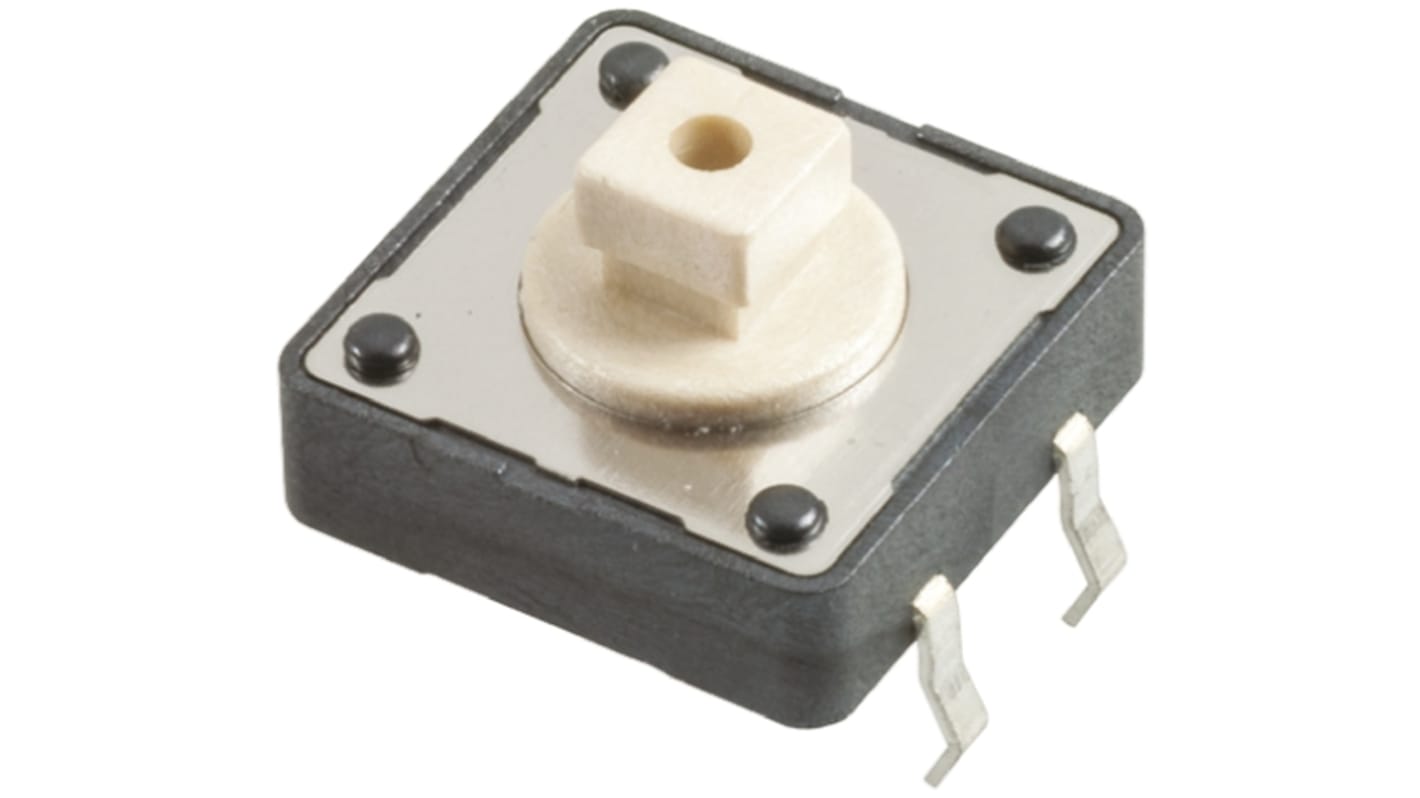

White Button Tactile Switch, SPST 50 mA @ 12 V dc 3.8mm Through Hole
- RS Stock No.:
- 785-6314
- Mfr. Part No.:
- 430466073726
- Manufacturer:
- Wurth Elektronik
29 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR2.70
| Units | Per Unit |
| 1 + | MYR2.70 |
- RS Stock No.:
- 785-6314
- Mfr. Part No.:
- 430466073726
- Manufacturer:
- Wurth Elektronik
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Tactile Switch Washable THT
Stainless Steel cover
Stainless Steel contacts with silver cladding
Wave soldering 260°C 10 seconds. Max.
Operating temperature range -40°C to +85°C
Stainless Steel contacts with silver cladding
Wave soldering 260°C 10 seconds. Max.
Operating temperature range -40°C to +85°C
Tactile
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | Single Pole Single Throw (SPST) |
| Terminal Type | Solder, Through Hole |
| Switch Operation | Momentary |
| Actuator Length | 3.8mm |
| Actuator Colour | White |
| Actuator Type | Button |
| Length | 12.5mm |
| Width | 12mm |
| Dimensions | 12 x 12.5mm |
| Illuminated | No |
| Mounting Type | Through Hole |
| Contact Current Rating | 50 mA @ 12 V dc |
| Voltage Rating | 12V dc |
| Height | 7.3mm |
| Operating Force | 260 g |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 300000Cycles |
| Contact Material | Silver Plated Stainless Steel |
| Maximum Operating Temperature | +85°C |
