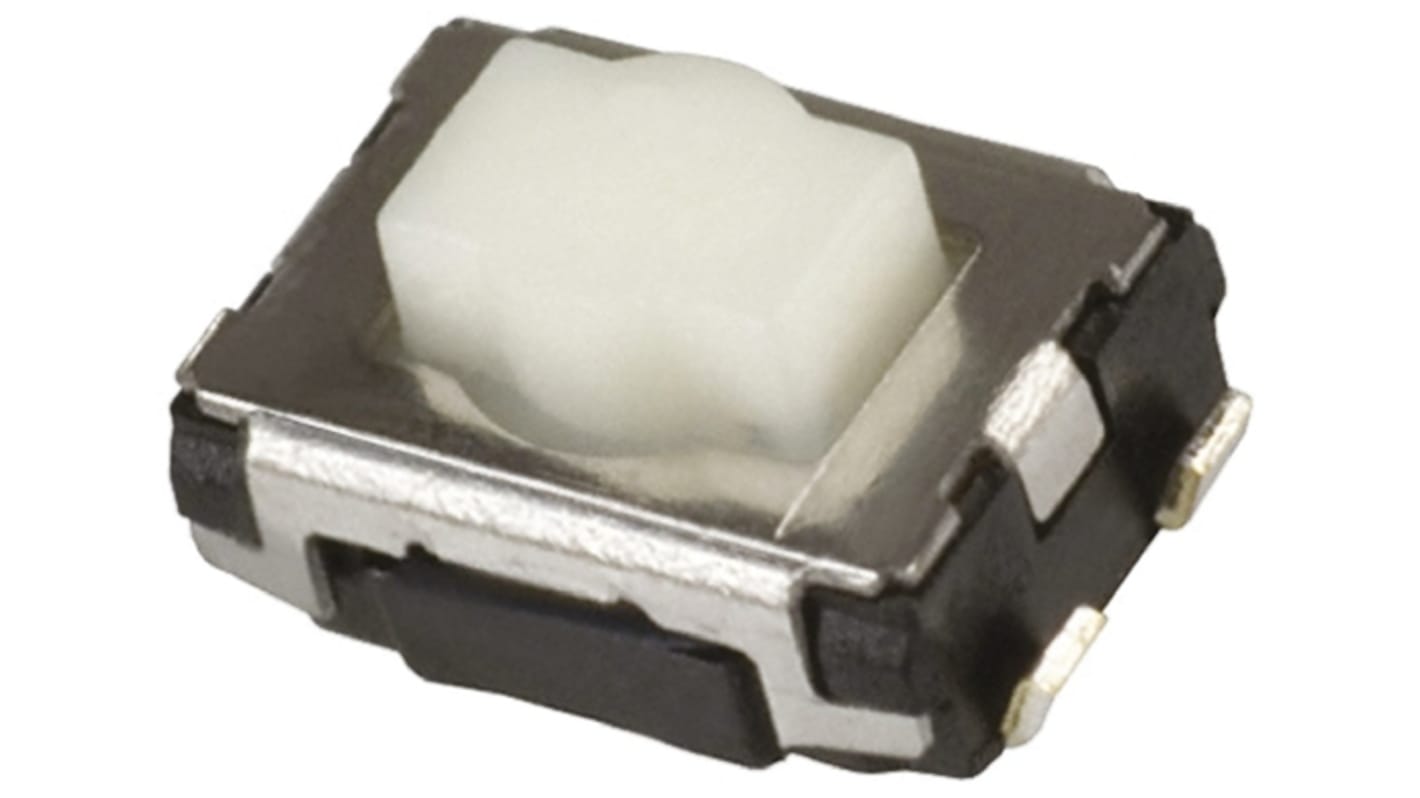

White Button Tactile Switch, Single Pole Single Throw (SPST) 20 mA 1.7mm

  • RS Stock No. 756-1644
  • Mfr. Part No. EVPAA402W
  • Manufacturer Panasonic
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): JP
Product Details

Panasonic SMT Tact Switches - EVP and EVQ Series

Panasonic Light Touch switches, commonly referred as Tactile or Tact switches, are momentary snap action switches to be used with small currents (rated at 20mA 15Vdc). These Tact Switches provide a unique sharp, clear and assuring click operating feel, have low contact resistance, small bouncing noise, high contact
reliability and come in a wide selection of operating forces.
This SMT range of Tactile Switches have features that include options such as ultra thin profiles, small form factor, side mount versions, with or without ground terminal or positioning/fixing boss, long travel (stroke), over travel, as well as surface mount and J-bent terminal mounting options.

Assuring click feel
Wide range of operating forces
Single pole with normally open contacts, apart from the side-operational edge mount version (EVQQ0G03K), stock number 756-1811 which is a single pole with change-over contacts

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Surface Mount
Switch Operation Momentary
Actuator Length 1.7mm
Actuator Colour White
Actuator Type Push Plate
Dimensions 3.5 x 2.9 x 1.7mm
Contact Current Rating 20 mA
Operating Force 2.4 N
Operating Temperature Range -40 → +85°C
Minimum Operating Temperature -40°C
Mechanical Life 200000Cycles
Maximum Operating Temperature +85°C
Height 1.7mm
