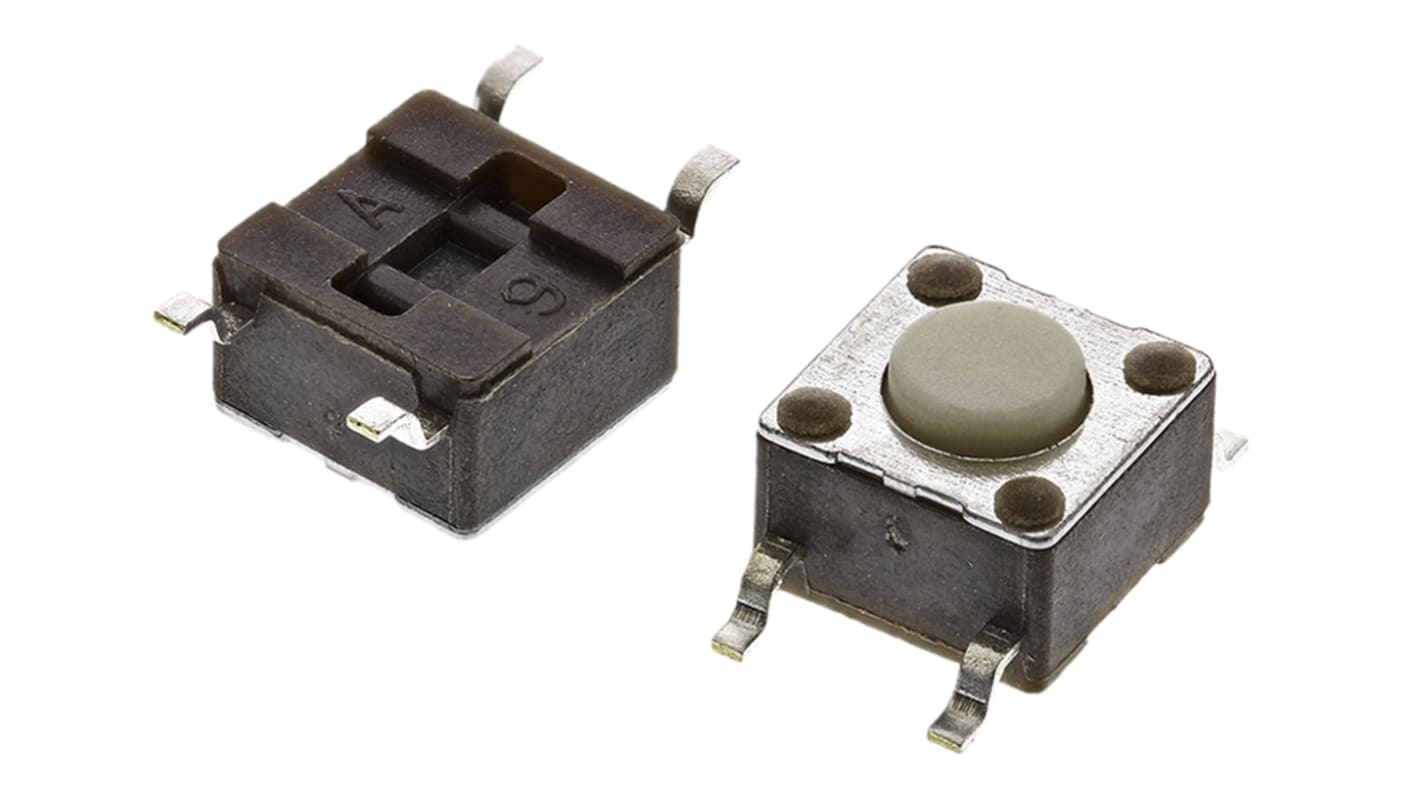

White Button Tactile Switch, SPST 50 mA @ 24 V dc 0.7mm Surface Mount

RS Stock No.:: 718-2474
Mfr. Part No.:: FSM2JSMAATR
Manufacturer:: TE Connectivity

White Button Tactile Switch, SPST 50 mA @ 24 V dc 0.7mm Surface Mount

105 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

305 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ

Added

Price Each (In a Pack of 5)

MYR1.254

Units	Per Unit	Per Pack*
5 - 45	MYR1.254	MYR6.27
50 - 245	MYR1.228	MYR6.14
250 - 495	MYR1.194	MYR5.97
500 - 1245	MYR1.166	MYR5.83
1250 +	MYR1.142	MYR5.71
*price indicative

RS Stock No.:: 718-2474
Mfr. Part No.:: FSM2JSMAATR
Manufacturer:: TE Connectivity

Technical data sheets

Tactile switch,SMT,SPST,raised white act

Legislation and Compliance

Product Details

TE Connectivity FSM Series Tactile Switches

The professional range of tactile switches from TE Connectivity. FSM series switches are suitable for use with mobile devices.

Features and benefits:

SPNO tactile switches available in THT, SMD & right angle mountings
SMD types suitable for immersion

Applications:

• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Tactile

Specifications

Attribute	Value
Contact Configuration	Single Pole Single Throw (SPST)
Terminal Type	Surface Mount
Switch Operation	Momentary
Actuator Length	0.7mm
Actuator Colour	White
Actuator Type	Button
Length	6mm
Width	6mm
Dimensions	6 x 6 x 4.3mm
Mounting Type	Surface Mount
Contact Current Rating	50 mA @ 24 V dc
Voltage Rating	24V dc
Height	4.3mm
Operating Force	2.6 N
Maximum Operating Temperature	+85°C
Operating Temperature Range	-20 → +85°C
Minimum Operating Temperature	-20°C
Contact Material	Silver Copper Alloy
