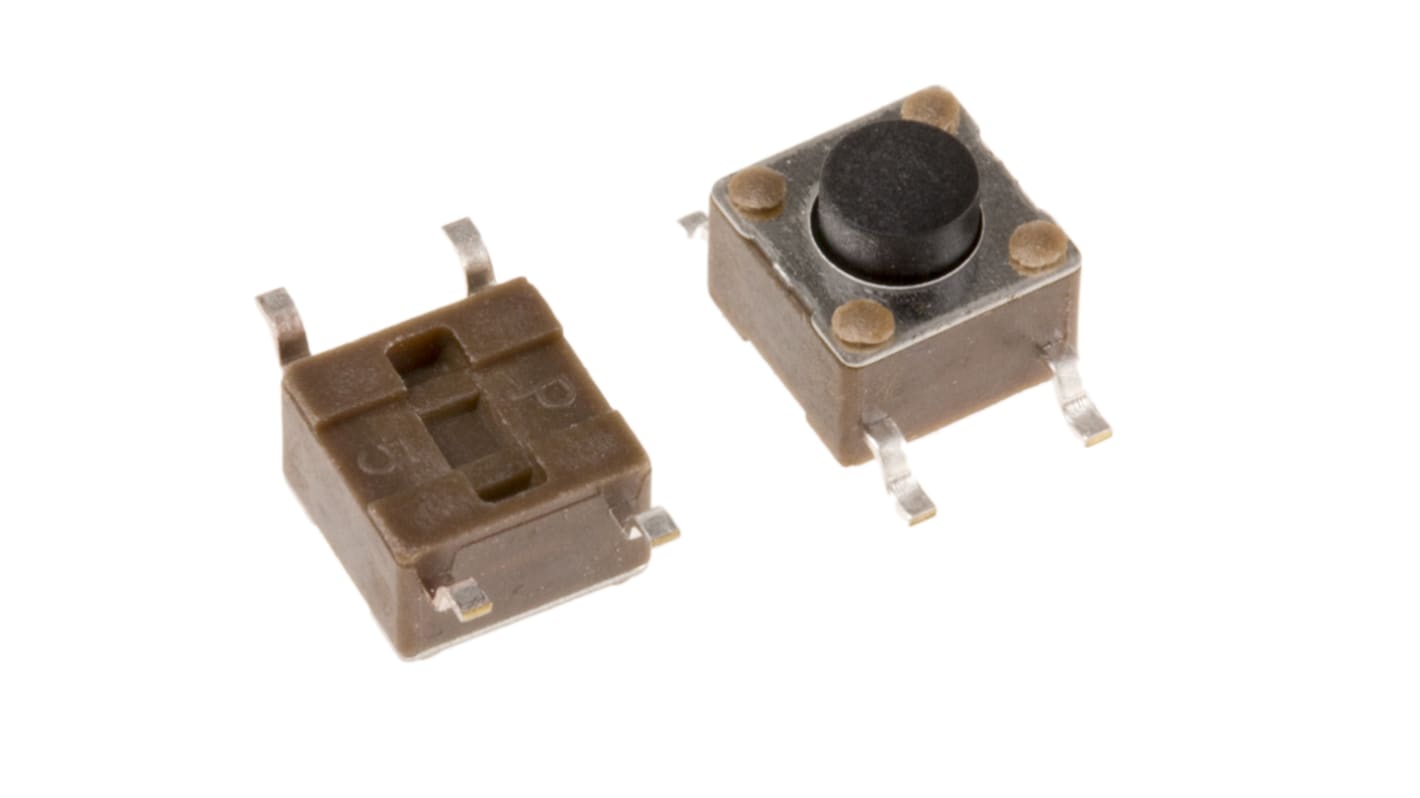

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V ac 1.4mm Surface Mount

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

TE Connectivity FSM Series Tactile Switches

The professional range of tactile switches from TE Connectivity. FSM series switches are suitable for use with mobile devices.

Features and benefits:

SPNO tactile switches available in THT, SMD & right angle mountings
SMD types suitable for immersion

Applications:

• Keyboards
• Keypads
• Telephones
• Radios
• General consumer electronics
• Closing the circuit on a PCV

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Surface Mount
Switch Operation Momentary
Actuator Length 1.4mm
Actuator Colour Black
Actuator Type Button
Dimensions 6 x 6 x 5mm
Mounting Type Surface Mount
Contact Current Rating 50 mA @ 12 V ac
Operating Force 1.57 N
Contact Material Silver Plated Copper Alloy
Height 8.5mm
2440 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 20)
MYR 0.524
units
Per unit
Per Pack*
20 - 80
MYR0.524
MYR10.48
100 - 480
MYR0.495
MYR9.90
500 - 980
MYR0.483
MYR9.66
1000 - 1980
MYR0.471
MYR9.42
2000 +
MYR0.459
MYR9.18
*price indicative
