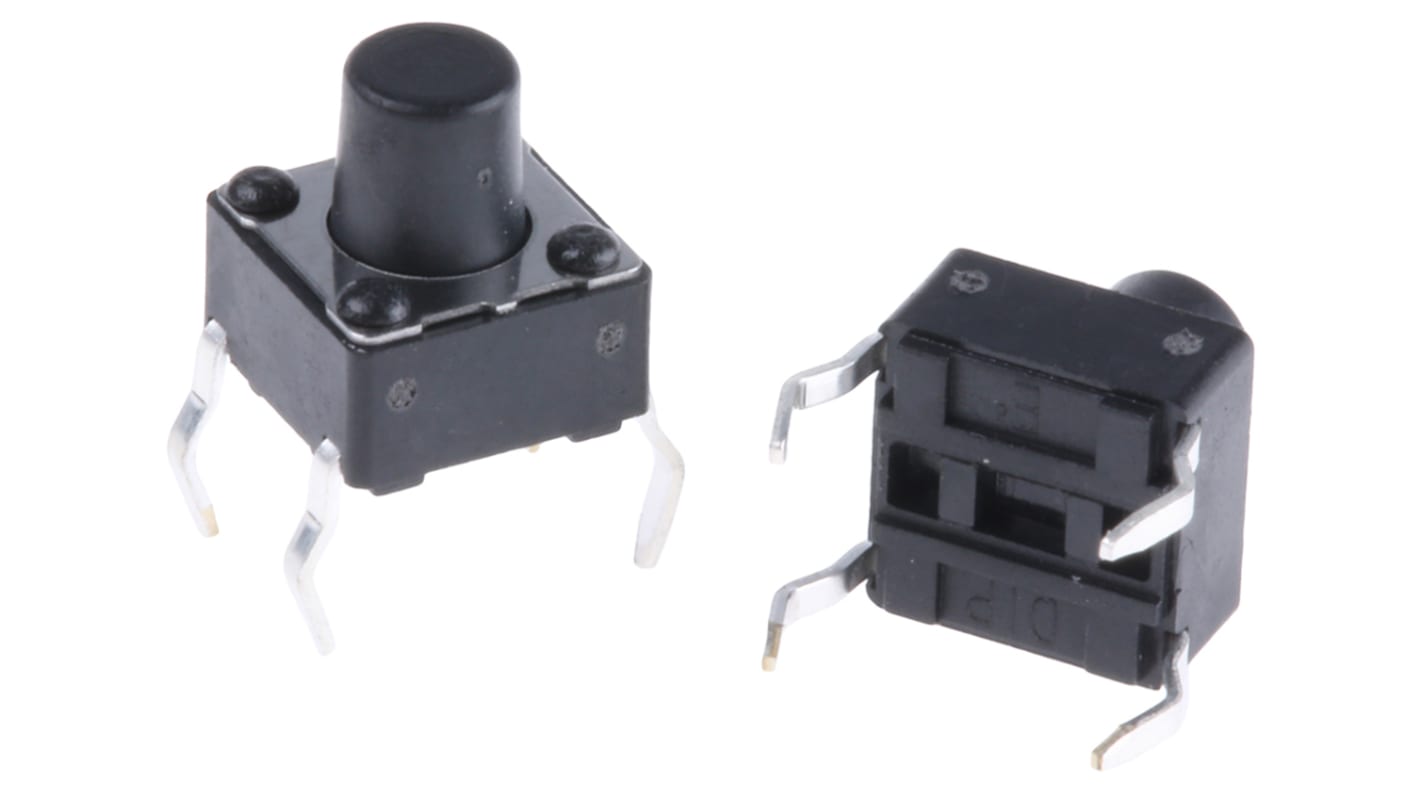

Black Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 3.5mm

  • RS Stock No. 378-6448
  • Mfr. Part No. DTS63KV
  • Manufacturer APEM
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

Commercial Tactile Switches

SPNO “tact” switches offer wide choice of size, mounting and operating characteristics
Through-hole or surface-mount options with optional caps available

Note

Colour of switch actuator signifies operating force.

Tactile

Specifications
Attribute Value
Contact Configuration Single Pole Single Throw (SPST)
Terminal Type Through Hole
Switch Operation Momentary
Actuator Length 3.5mm
Actuator Colour Black
Actuator Type Button
Dimensions 6 x 6 x 7mm
Contact Current Rating 50 mA @ 12 V dc
Operating Force 0.98 N
Height 7mm
Contact Material Silver Plated Phosphor Bronze
2440 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 20)
MYR 0.74
units
Per unit
Per Pack*
20 - 80
MYR0.74
MYR14.80
100 - 480
MYR0.657
MYR13.14
500 - 980
MYR0.574
MYR11.48
1000 - 1980
MYR0.496
MYR9.92
2000 +
MYR0.413
MYR8.26
*price indicative
