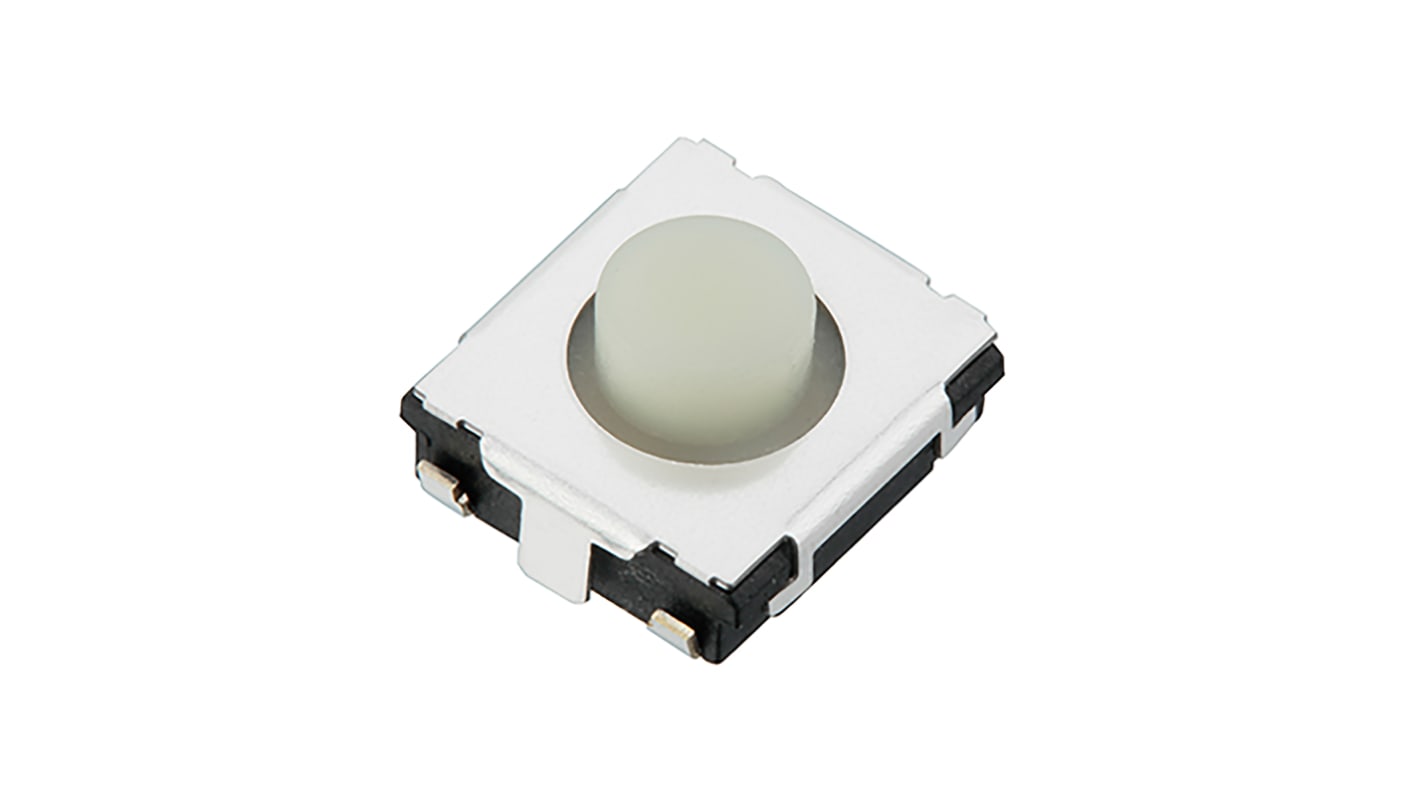

White Push Plate Tactile Switch, SPST 10 μA → 20 mA 1.3mm Surface Mount
- RS Stock No.:
- 178-9278
- Mfr. Part No.:
- EVQQ2H03W
- Manufacturer:
- Panasonic
1760 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 20)
MYR1.40
| Units | Per Unit | Per Pack* |
| 20 - 480 | MYR1.40 | MYR28.00 |
| 500 - 980 | MYR1.351 | MYR27.02 |
| 1000 + | MYR1.283 | MYR25.66 |
| *price indicative | ||
- RS Stock No.:
- 178-9278
- Mfr. Part No.:
- EVQQ2H03W
- Manufacturer:
- Panasonic
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Features
External dimensions : 6.5 mmx6.0mm,Height1.8mm
(Excluding the push plate)
With or without ground terminal, height, operating force
Overstroke travel
Recommended Applications
Operating switches for other electronic equipment
Operation switches for PC mouse
Car audio systems
Game
External dimensions : 6.5 mmx6.0mm,Height1.8mm
(Excluding the push plate)
With or without ground terminal, height, operating force
Overstroke travel
Recommended Applications
Operating switches for other electronic equipment
Operation switches for PC mouse
Car audio systems
Game
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 1.3mm |
| Actuator Colour | White |
| Actuator Type | Push Plate |
| Length | 6.5mm |
| Width | 1.8mm |
| Dimensions | 6.5 x 1.8mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 10 μA → 20 mA |
| Operating Force | 1 N |
| Voltage Rating | 2 → 15V dc |
| Operating Temperature Range | -40 → +85°C |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
