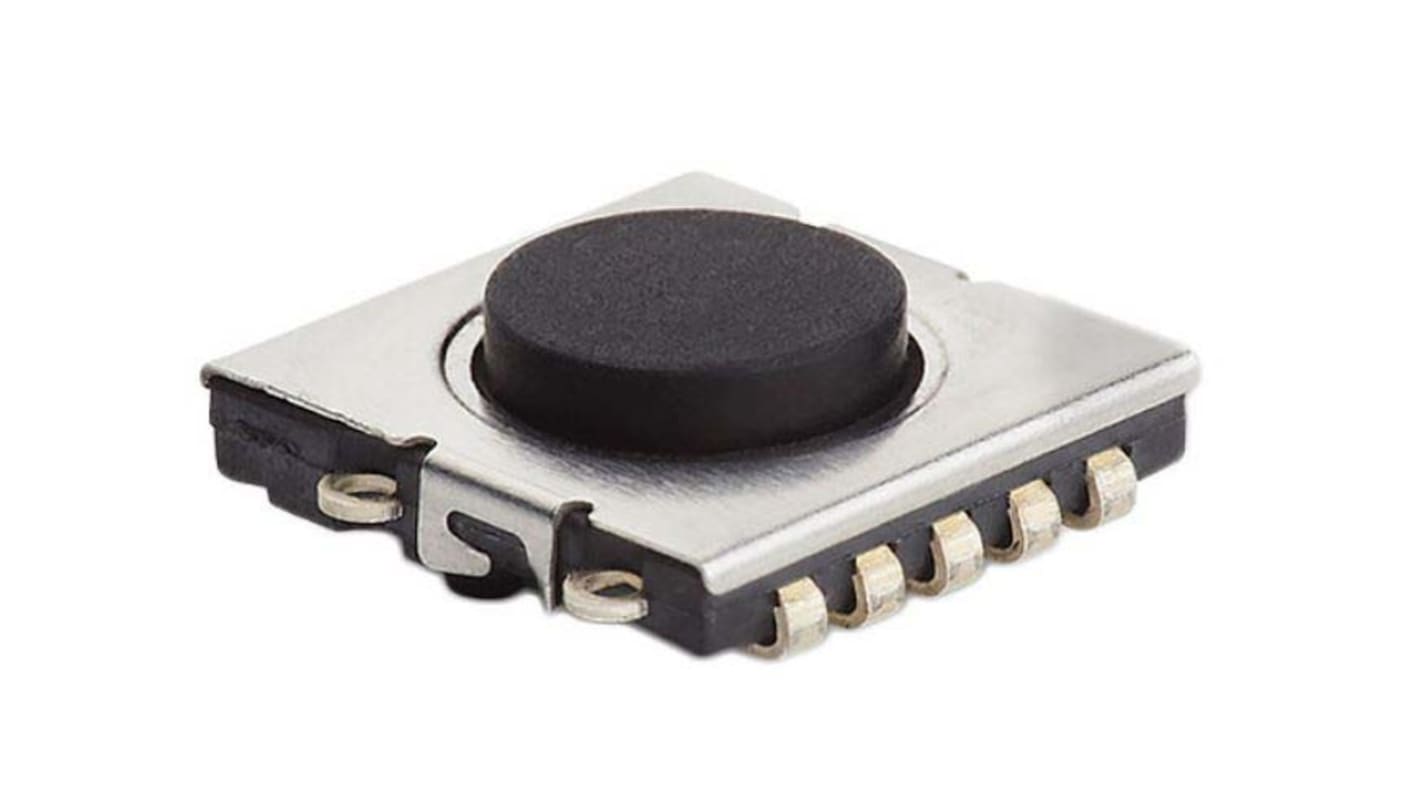

IP67 Black Round Tactile Switch, SPST 50 mA 1mm Surface Mount
- RS Stock No.:
- 146-3491
- Mfr. Part No.:
- 6CJ1NOPR
- Manufacturer:
- APEM
1 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price 1 Reel of 1000
MYR10,382.17
| Reel(s) | Per Reel | Per Unit* |
| 1 - 1 | MYR10,382.17 | MYR10.382 |
| 2 - 3 | MYR10,153.76 | MYR10.154 |
| 4 + | MYR9,966.88 | MYR9.967 |
| *price indicative | ||
- RS Stock No.:
- 146-3491
- Mfr. Part No.:
- 6CJ1NOPR
- Manufacturer:
- APEM
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Ultramec™ is a whole new switch line from MEC. 6C is the first switch in the line. Ultramec™ 6C switch is a low profile switch with crisp sound and feel. It has IP67 sealing, 3 million cycles and pins for accurate mounting with the J-bend terminals. The switch is excellent for under overlay and custom caps as well as when space is limited.
h=2.5 mm
8 x 8 mm
Momentary NO
IP67 sealing
3,000,000 cycles
J-bend
8 x 8 mm
Momentary NO
IP67 sealing
3,000,000 cycles
J-bend
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | J Bend |
| Switch Operation | Momentary |
| Actuator Length | 1mm |
| Actuator Colour | Black |
| Actuator Type | Round |
| Length | 8mm |
| Width | 8mm |
| Dimensions | 8 x 8mm |
| Mounting Type | Surface Mount |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.7 N |
| Voltage Rating | 24V dc |
| Contact Material | Nickel Gold Plated Copper Zinc |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
| Operating Temperature Range | -40 → +85°C |
