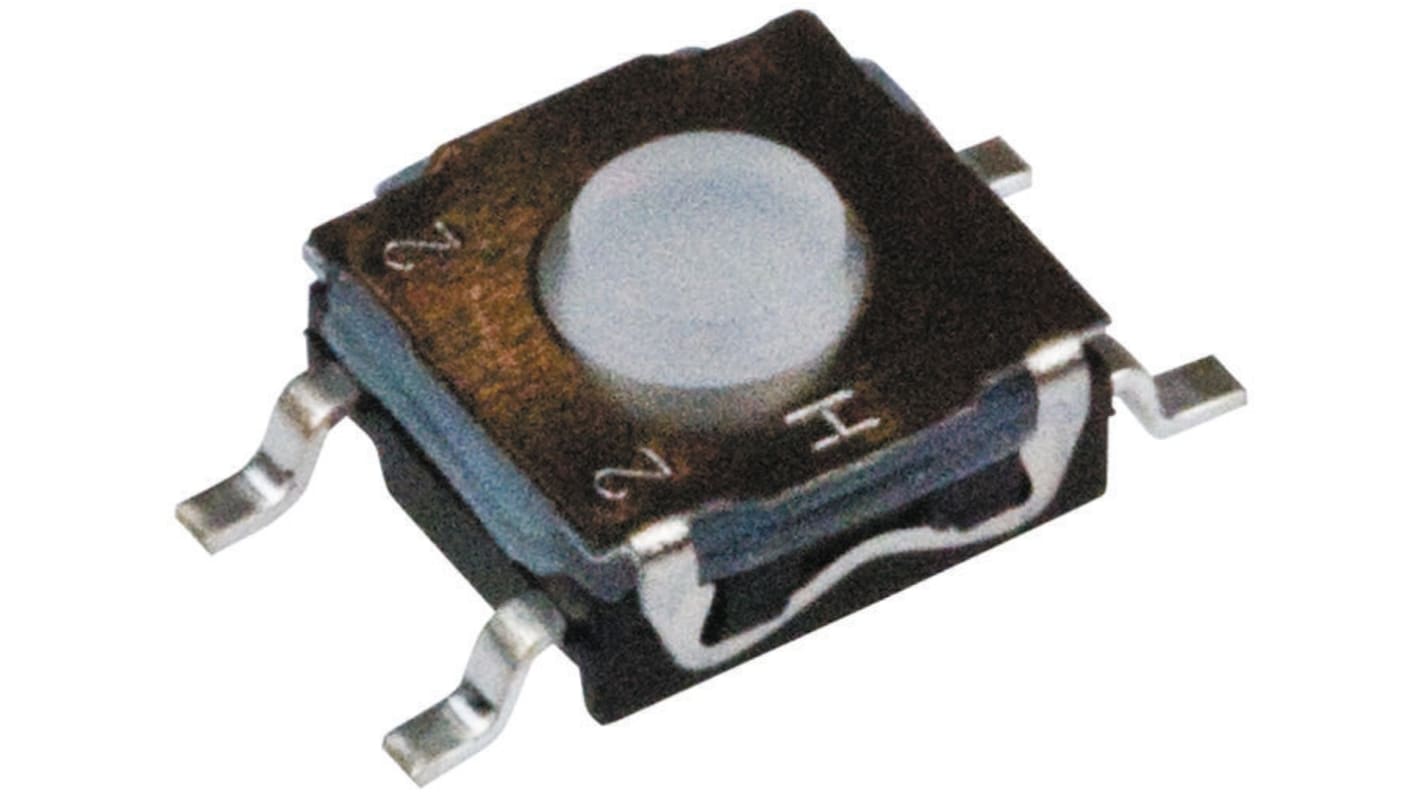

IP67 Button Tactile Switch, SPST-NO 50 mA @ 32 V dc 0.9mm Surface Mount

  • RS Stock No. 516-249
  • Mfr. Part No. KSC222J LFS
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KSC Series Tactile Switches

The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals. Potential applications include automotive, cellular phones, industrial electronics, network infrastructure, IT and elevators. They are sealed to IP67 and have a single pole, normally open contact with a momentary action.

Life; 1 million cycles
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action

//media.rs-online.com/t_line/L0516243-01.gif
//media.rs-online.com/t_line/L0516328-01.gif

Tactile

Specifications
Attribute Value
Contact Configuration SPST-NO
Terminal Type Surface Mount
Switch Operation Off-(On)
Actuator Length 0.9mm
Actuator Type Button
Dimensions 6.2 x 6.2 x 3.5mm
Mounting Type Surface Mount
Contact Current Rating 50 mA @ 32 V dc
IP Rating IP67
Operating Force 2.5 N
Maximum Operating Temperature +85°C
Mechanical Life 1000000Operations
Contact Material Silver
Minimum Operating Temperature -40°C
Height 3.5mm
Voltage Rating 32V dc
190 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
Was MYR2.764
MYR 2.111
units
Per unit
Per Pack*
10 - 40
MYR2.111
MYR21.11
50 - 240
MYR2.002
MYR20.02
250 - 490
MYR1.751
MYR17.51
500 - 990
MYR1.509
MYR15.09
1000 +
MYR1.261
MYR12.61
*price indicative
