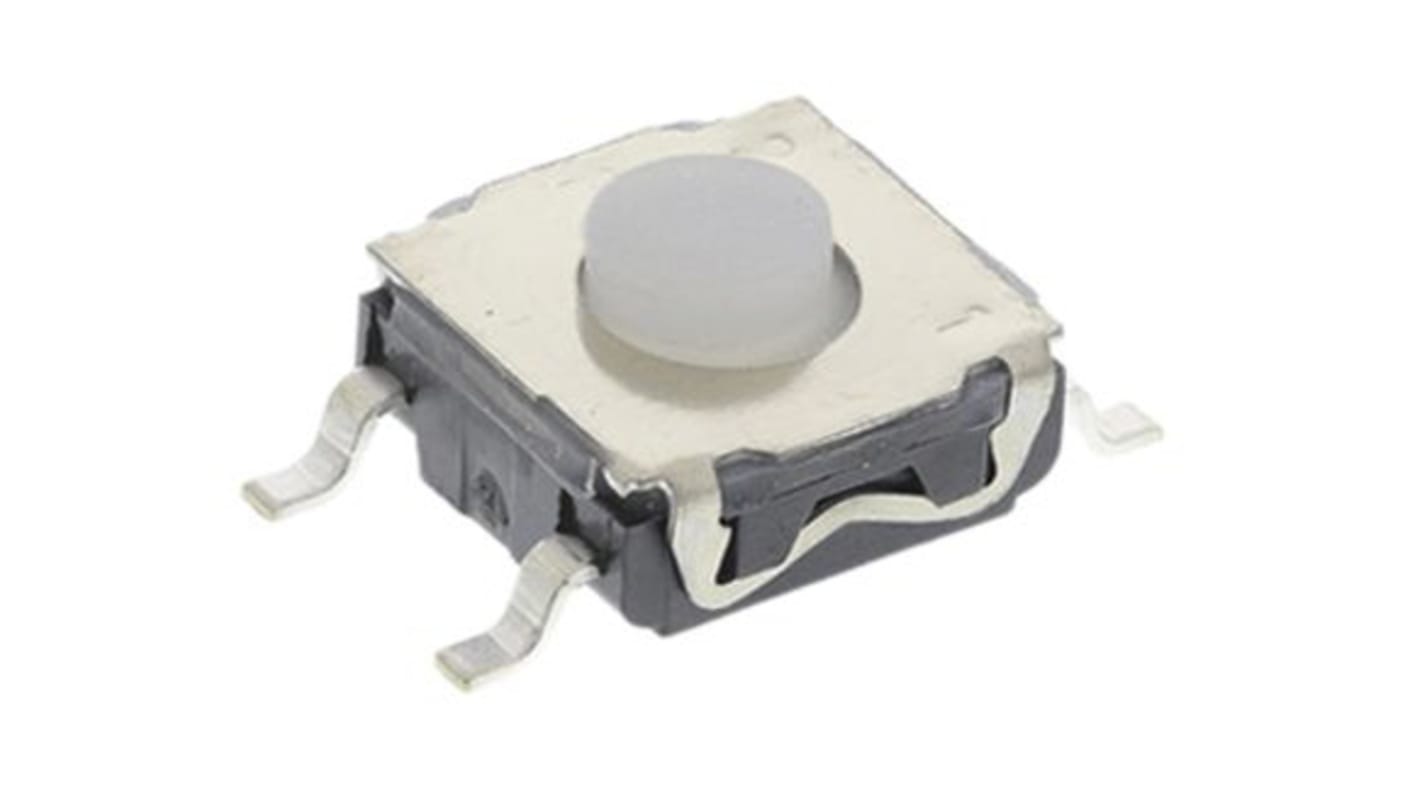

IP67 Tactile Switch, SPST-NO 50 mA 0.6mm Surface Mount

  • RS Stock No. 255-667
  • Mfr. Part No. KSC241G LFS
  • Manufacturer C & K
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): FR
Product Details

KSC Series Tactile Switches

The KSC Series tactile switches have been designed for surface mount applications with a choice of either J or gull wing terminals. Potential applications include automotive, cellular phones, industrial electronics, network infrastructure, IT and elevators. They are sealed to IP67 and have a single pole, normally open contact with a momentary action.

Life; 1 million cycles
Positive tactile feeling
Available in 1.6N and 3N actuator forces
J bend or Gullwing terminations
IP67
Long life Silver contacts
2 Actuator lengths; 3.5mm & 5.2mm
Momentary action

Tactile

Specifications
Attribute Value
Contact Configuration SPST-NO
Terminal Type Gull Wing
Switch Operation Momentary
Actuator Length 0.6mm
Actuator Type Tactile
Length 6.2mm
Width 6.2mm
Dimensions 6.20 x 6.20 x 3.50mm
Mounting Type Surface Mount
Contact Current Rating 50 mA
IP Rating IP67
Operating Force 4.4 N
Maximum Operating Temperature +85°C
Minimum Operating Temperature -40°C
Mechanical Life 300000Operations
Contact Material Silver
Height 3.5mm
Voltage Rating 32V dc
280 In Global stock for delivery within 4 - 6 working days
Price Each (In a Pack of 10)
MYR 1.989
units
Per unit
Per Pack*
10 - 40
MYR1.989
MYR19.89
50 - 240
MYR1.892
MYR18.92
250 - 490
MYR1.79
MYR17.90
500 - 990
MYR1.68
MYR16.80
1000 +
MYR1.569
MYR15.69
*price indicative
