Button Tactile Switch, SPST 10 mA@ 12 V dc 2.5mm

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

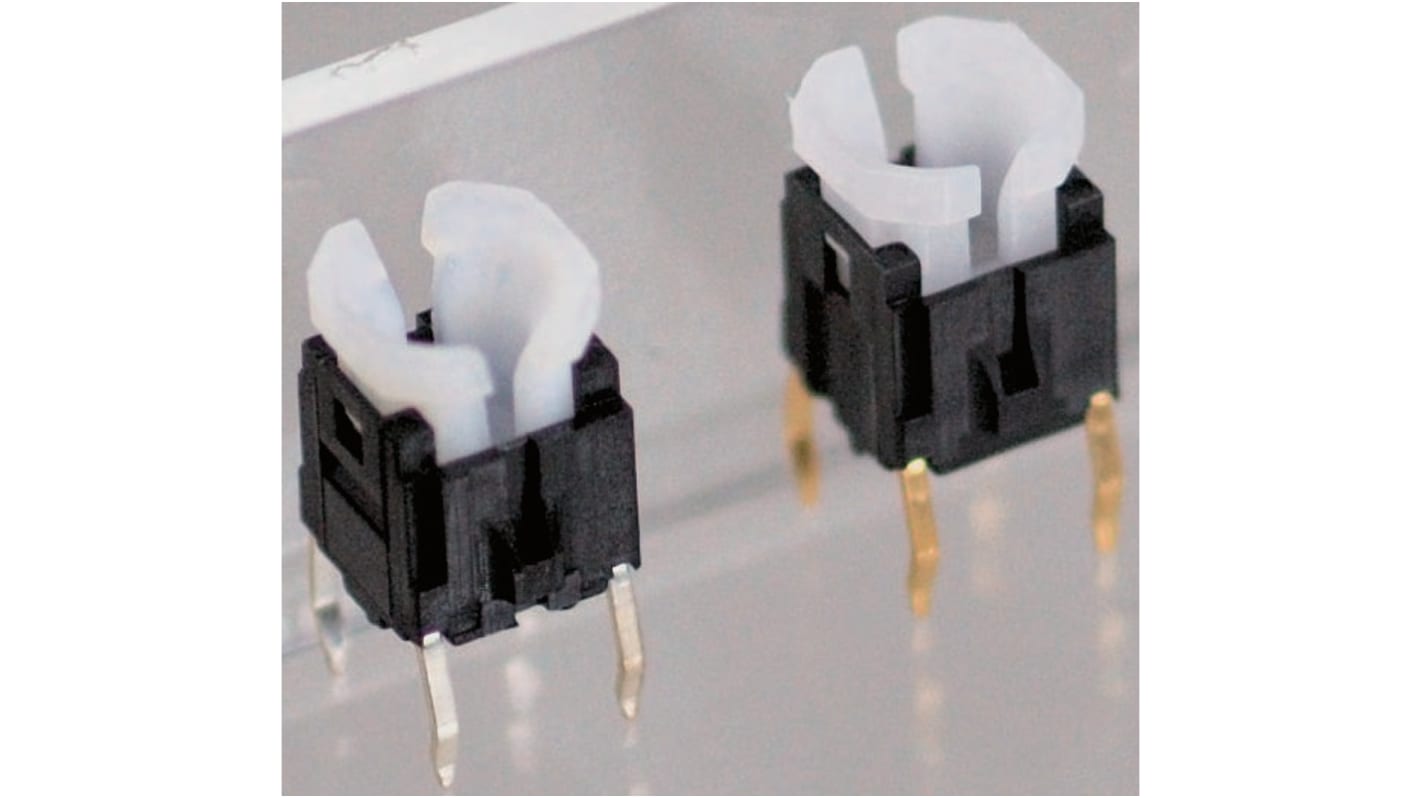

LTR1 Series

PCB mounting SPNO momentary pushbutton switches

Conductive rubber contacts for soft click-effect feel
Can be used in keyboard unit design and production
0.2in (5.08mm) pitch mounting pins, gold plated

Note

Coloured pushbutton caps and fixing frames are available on the RS website

//media.rs-online.com/t_line/LJ224332-01.gif

Fujisoku Push Button Switches

Specifications
Attribute Value
Contact Configuration SPST
Terminal Type Through Hole
Switch Operation Off-(On)
Actuator Length 2.5mm
Actuator Type Button
Contact Current Rating 10 mA@ 12 V dc
Maximum Operating Temperature +70°C
Operating Temperature Range -25 → +70°C
Contact Material Gold Plated
Minimum Operating Temperature -25°C
210 In Global stock for delivery within 4 - 6 working days
Price Each
Was MYR3.56
MYR 2.99
units
Per unit
1 +
MYR2.99
