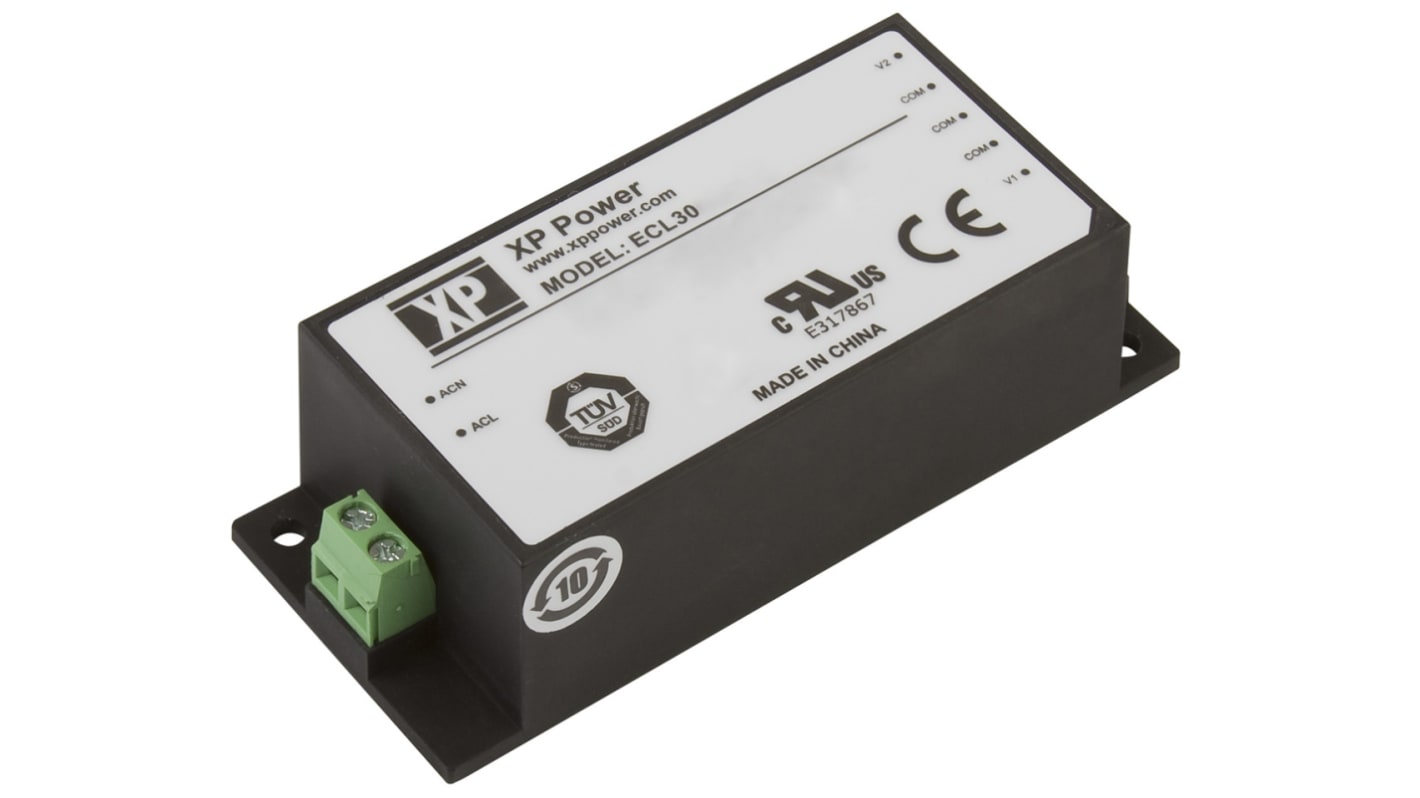

XP Power Switching Power Supply, ECL30UT03-S, 5 V dc, ±15 V dc, 3 A, 500mA, 30W, Triple Output, 120 → 370 V dc,
- RS Stock No.:
- 122-7802
- Mfr. Part No.:
- ECL30UT03-S
- Manufacturer:
- XP Power
5 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR336.56
| Units | Per Unit |
| 1 - 9 | MYR336.56 |
| 10 - 49 | MYR329.50 |
| 50 + | MYR319.62 |
- RS Stock No.:
- 122-7802
- Mfr. Part No.:
- ECL30UT03-S
- Manufacturer:
- XP Power
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
XP Power - ECL Series of 5-30 W AC-DC Power Supplies
The ECL series from XP Power offers an excellent range of single, dual and triple output, 5 W to 30 W, AC-DC power supplies. These ultra-compact power supplies are available in open-frame PCB, open-frame chassis mount, encapsulated PCB and encapsulated chassis mount versions. The range attributes less than 0.3 W no load input power, peak load capability and a high efficiency of up to 84%.
5 W to 30 W AC-DC power supplies
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature
Single, dual and triple outputs
Encapsulated PCB and chassis mount versions
Open-frame PCB and chassis mount versions
Ultra-compact size
<0.3 W no load input power
Peak load capability
High efficiency up to 84%
-20 °C to +70 °C Operating temperature
XP Power
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5 V dc, ±15 V dc |
| Output Current | 3 A, 500mA |
| Power Rating | 30W |
| Number of Outputs | 3 |
| Input Voltage | 120 → 370 V dc, 85 → 264 V ac |
| Mounting Type | Chassis Mount |
| Package Type | Encapsulated |
| Length | 96mm |
| Width | 40mm |
| Depth | 28.5mm |
| Efficiency | 81% |
| Weight | 175g |
| Maximum Temperature | +70°C |
| Minimum Temperature | -20°C |
