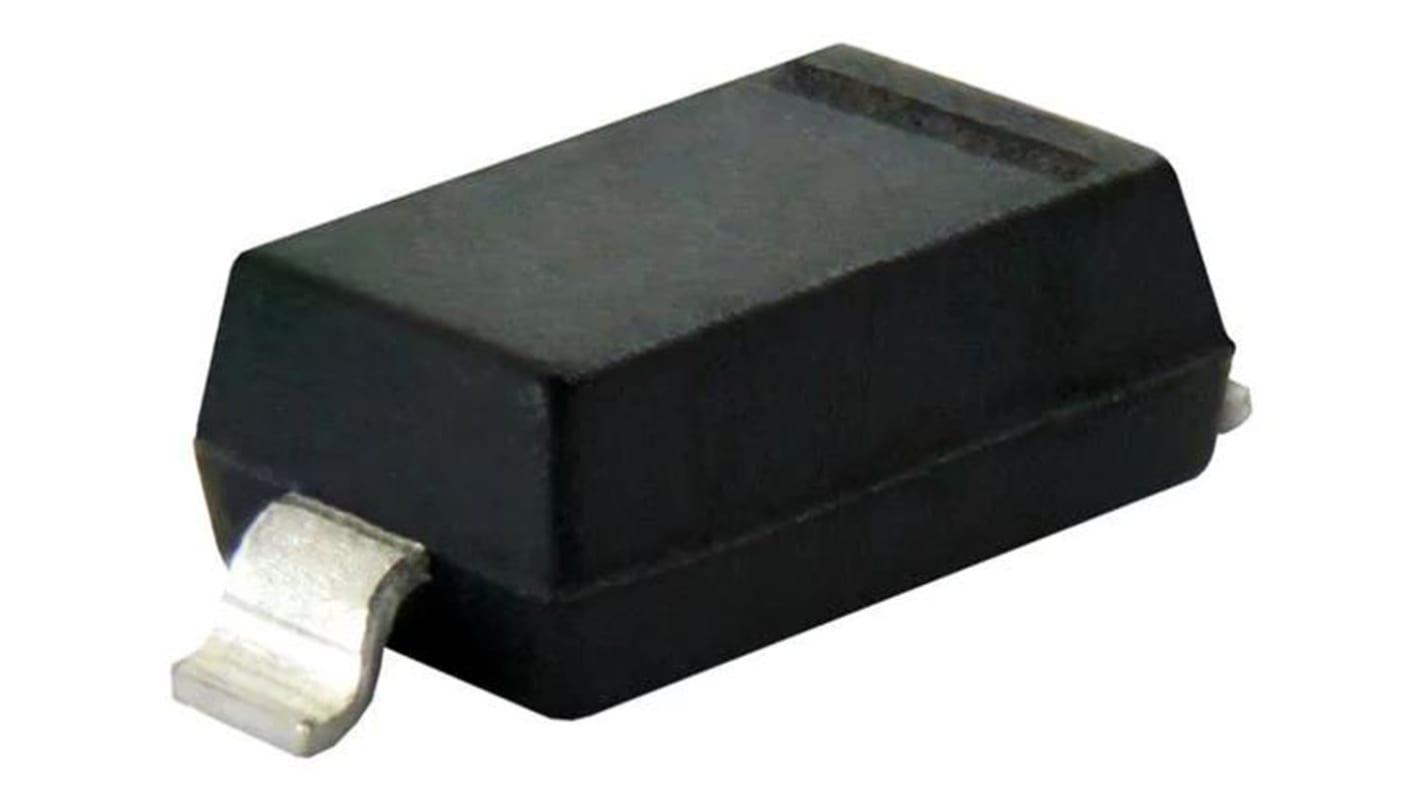

Vishay Switching Diode, 150mA 75V, 2-Pin SOD-123 1N4148W-E3-08
- RS Stock No.:
- 700-3671
- Mfr. Part No.:
- 1N4148W-E3-08
- Manufacturer:
- Vishay
1600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
2600 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (In a Pack of 100)
Was MYR0.483
You pay
MYR0.344
| Units | Per Unit | Per Pack* |
| 100 - 700 | MYR0.344 | MYR34.40 |
| 800 - 1400 | MYR0.337 | MYR33.70 |
| 1500 + | MYR0.33 | MYR33.00 |
| *price indicative | ||
- RS Stock No.:
- 700-3671
- Mfr. Part No.:
- 1N4148W-E3-08
- Manufacturer:
- Vishay
Technical data sheets
- Datasheet
- Application Note- Design Guidelines for Schottky Rectifiers
- Diodes Group Body Marking
- Application Note- Fundamentals of Rectifiers
- Application Note- High Speed Data Line Protection
- Application Note- Physical Explanation
- Application Note- Power Factor Correction with Ultrafast Diodes
- Application Note- Rectifiers for Power Factor Correction
- Application Note- Superectifier Design Brings New Level of Reliability to Surface Mount Comp
- Application Note- Trim and Form Process Reccomendation
Legislation and Compliance
Product Details
Glass Passivated Junction Fast Switching Plastic Rectifier
Features
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.
Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
• Superectifier structure for high reliability condition
• Cavity-free glass-passivated junction
• Fast switching for high efficiency
• Low leakage current, typical IR less than 0.2 μA
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
Typical Applications
High voltage rectification of G2 grid CRT and TV, snubber
circuit of camera flash.
Mechanical Data
Case: DO-204AL, molded epoxy over glass body
Molding compound meets UL 94 V-0 flammability rating
Base P/N-E3 - RoHS-compliant, commercial grade
Terminals: Matte tin plated leads, solderable per
J-STD-002 and JESD 22-B102
E3 suffix meets JESD 201 class 1A whisker test
Polarity: Color band denotes cathode end
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Diodes and Rectifiers, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Maximum Forward Current | 150mA |
| Diode Configuration | Single |
| Number of Elements per Chip | 1 |
| Mounting Type | Surface Mount |
| Maximum Reverse Voltage | 75V |
| Package Type | SOD-123 |
| Maximum Forward Voltage Drop | 1.2V |
| Pin Count | 2 |
| Maximum Diode Capacitance | 4pF |
| Minimum Operating Temperature | -55 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.85mm |
| Width | 1.7mm |
| Height | 1.25mm |
| Dimensions | 2.85 x 1.7 x 1.25mm |
