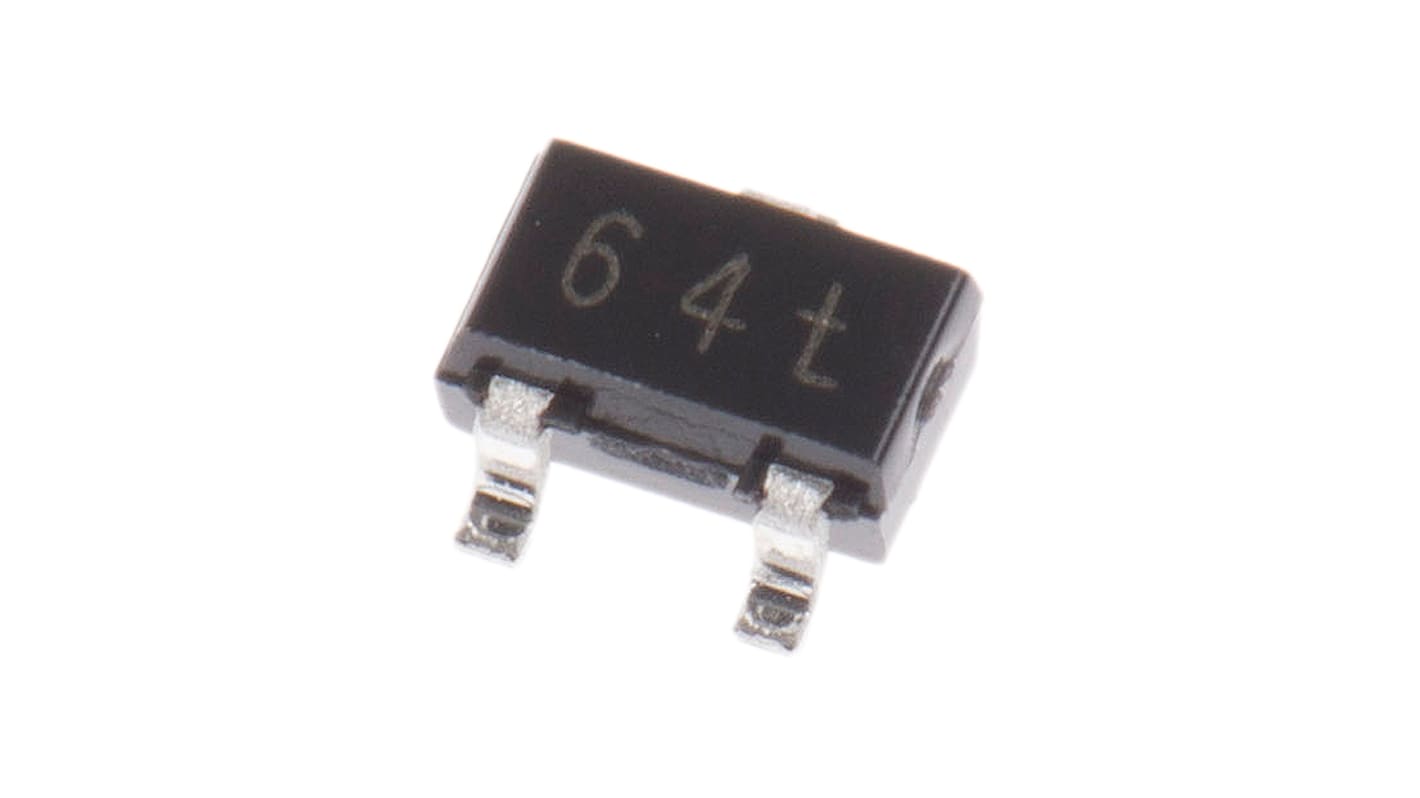

Nexperia Dual Small Signal Diode, Series, 120mA 40V, 3-Pin SOT-323 BAS40-04W,115
- RS Stock No.:
- 165-9900
- Mfr. Part No.:
- BAS40-04W,115
- Manufacturer:
- Nexperia
24000 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each (On a Reel of 3000)
MYR0.27
| Units | Per Unit | Per Reel* |
| 3000 + | MYR0.27 | MYR810.00 |
| *price indicative | ||
- RS Stock No.:
- 165-9900
- Mfr. Part No.:
- BAS40-04W,115
- Manufacturer:
- Nexperia
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Schottky Barrier Diodes, up to 120mA, Nexperia
High efficiency
Ultra-small, low-profile surface-mount packages
Optimized for Low forward voltage drop and high junction temperature
Low capacitance
Negligible power switching losses
Low leakage current
Ultra-small, low-profile surface-mount packages
Optimized for Low forward voltage drop and high junction temperature
Low capacitance
Negligible power switching losses
Low leakage current
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
|---|---|
| Diode Configuration | Series |
| Maximum Forward Current | 120mA |
| Mounting Type | Surface Mount |
| Number of Elements per Chip | 2 |
| Maximum Reverse Voltage | 40V |
| Package Type | SOT-323 (SC-70) |
| Diode Technology | Schottky |
| Pin Count | 3 |
| Maximum Forward Voltage Drop | 1V |
| Maximum Diode Capacitance | 5pF |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Length | 2.2mm |
| Width | 1.35mm |
| Height | 1.1mm |
| Dimensions | 2.2 x 1.35 x 1.1mm |
