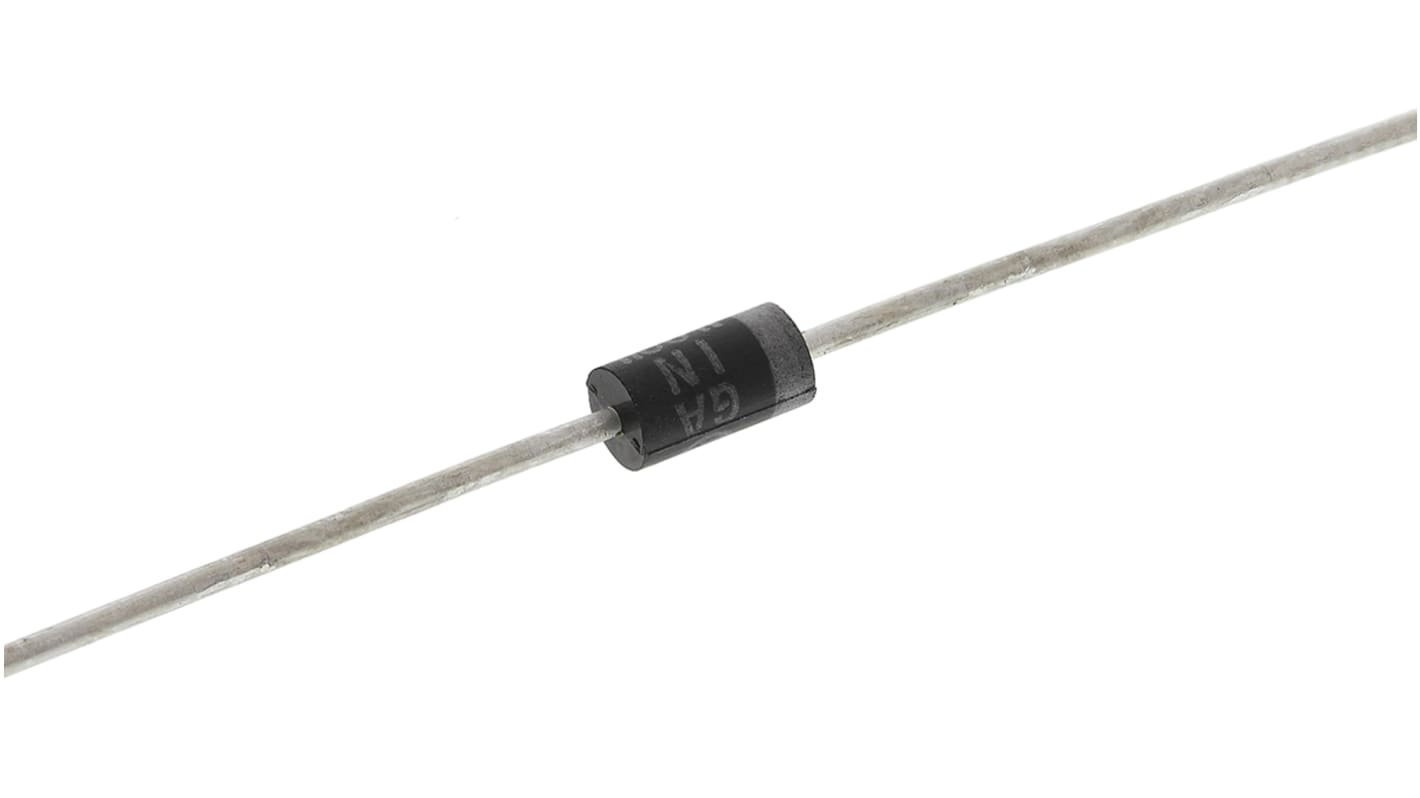

ON Semi 400V 1A, Diode, 2-Pin DO-41 1N4004G

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
Product Details

ON Semi 1N4001-1N4007 Axial Lead Standard Recovery Rectifiers

This range of ON Semiconductor products are the standard rectifiers which are specifically designed for general purpose, low power applications. With a finish that ensures its external surfaces are corrosion resistant and terminal leads are readily solderable, this product offers an effective and reliable product to it’s customers.

Features:

• Case: Epoxy, Molded
• Weight: 0.4 Gram
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max for 10 Seconds
• Polarity: Cathode Indicated by Polarity Band

Typical Applications

• High frequency inverters
• Free wheeling diodes
• Polarity protection diodes

Specifications
Attribute Value
Diode Configuration Single
Mounting Type Through Hole
Number of Elements per Chip 1
Package Type DO-41
Diode Technology Silicon Junction
Pin Count 2
Maximum Forward Voltage Drop 1.1V
Minimum Operating Temperature -65 °C
Maximum Operating Temperature +175 °C
Height 5.2mm
Dimensions 2.7 (Dia.) x 5.2mm
Diameter 2.7mm
2000 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 1000)
MYR 0.182
units
Per unit
Per Bag*
1000 - 1000
MYR0.182
MYR182.00
2000 - 3000
MYR0.138
MYR138.00
4000 - 9000
MYR0.135
MYR135.00
10000 - 19000
MYR0.127
MYR127.00
20000 +
MYR0.124
MYR124.00
*price indicative
