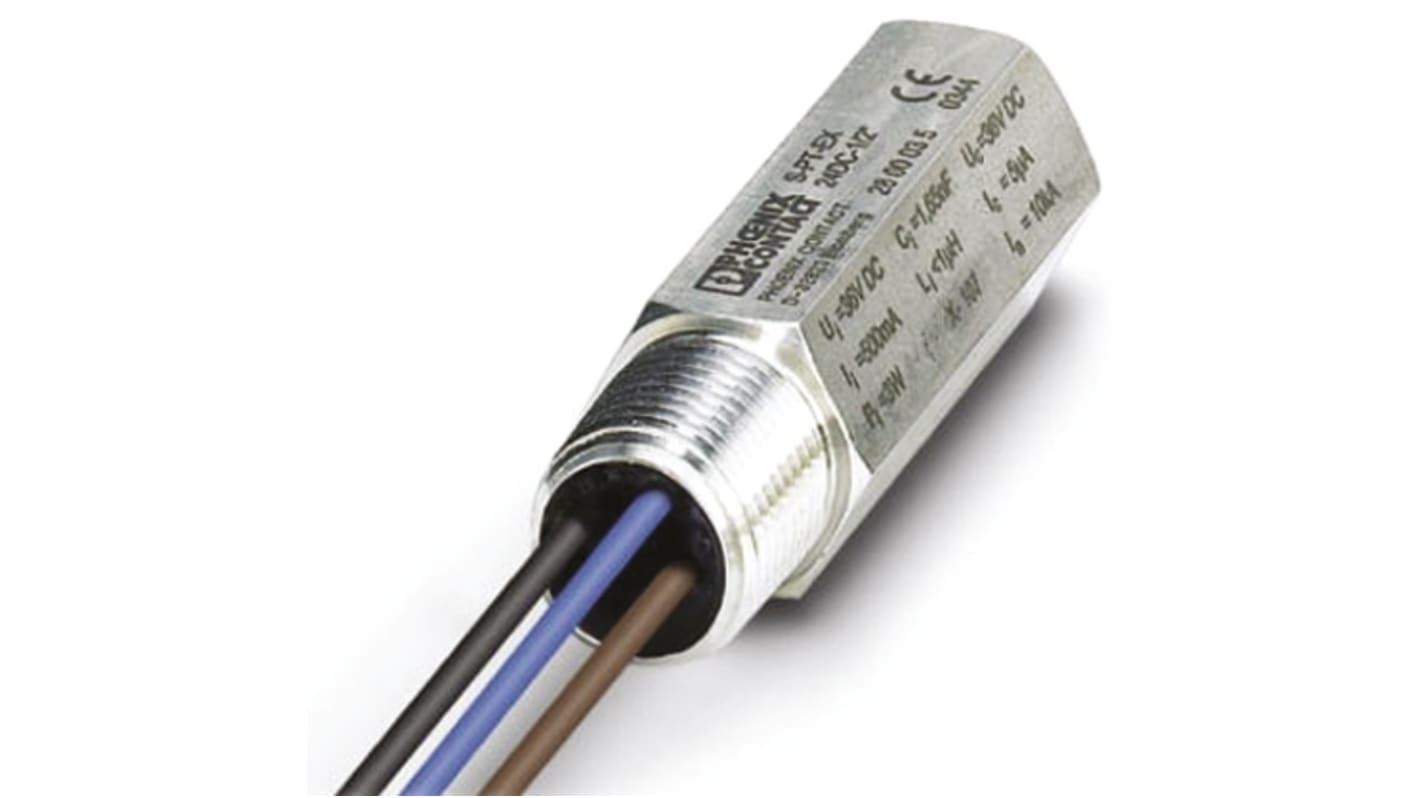

Phoenix Contact 24 V dc 20kA S-PT-EX-24DC-1/2 Surge Arrester Protection Module, Screw Mount Mounting

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): DE
Product Details

Surge Suppressor

Professional range of Phoenix Contact IP67 surge suppressors for protecting sensor heads

IP67 Rated
Screw Termination
24 and 240 Vdc versions available

TP Series

Specifications
Attribute Value
Suppressor Type Surge Arrester Protection Module
Maximum Voltage Rating 24 V dc
Mounting Type Screw Mount
Maximum Surge Current 20kA
Series S-PT-EX-24DC-1/2
Length 28mm
Depth 79mm
Height 28mm
Dimensions 28 x 79 x 28mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +80°C
