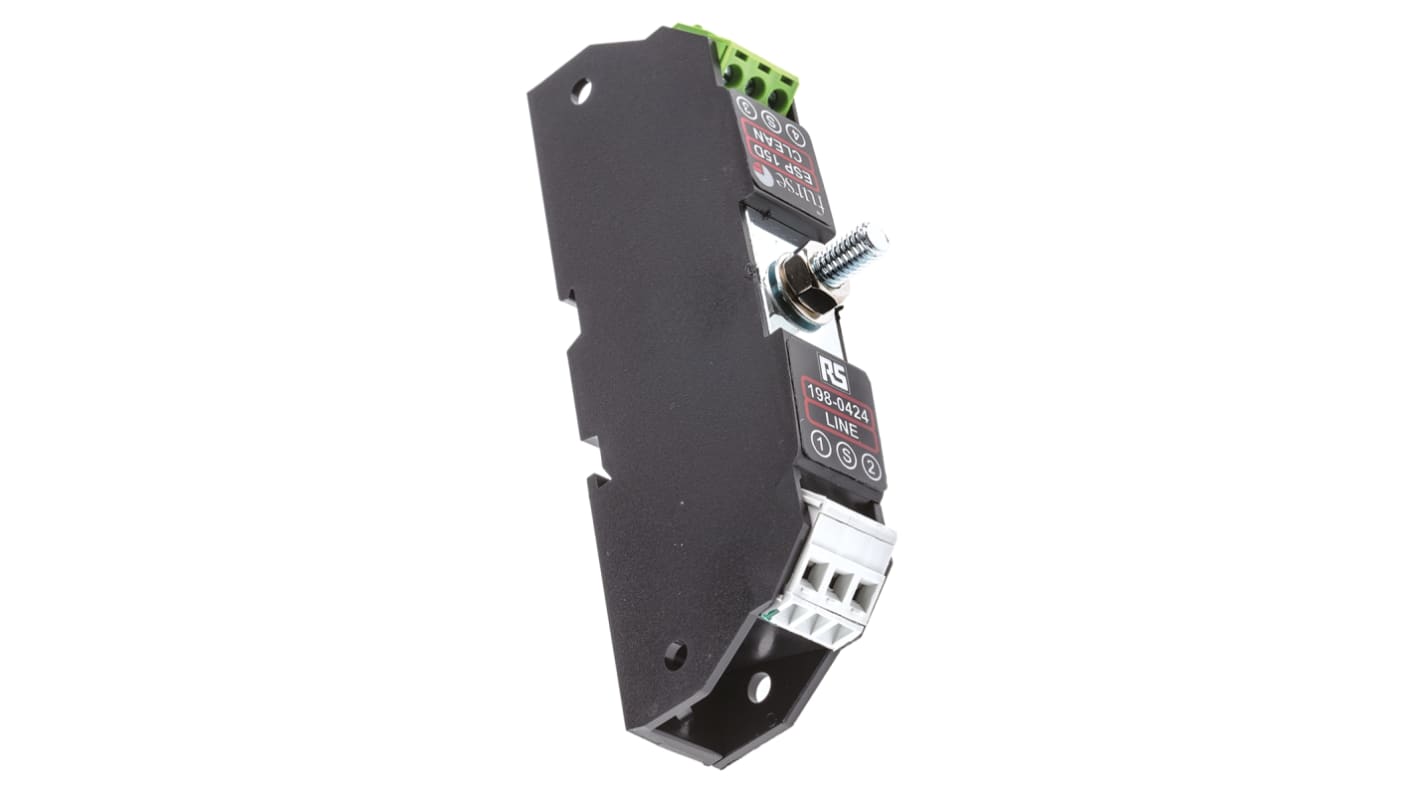

WJ Furse 19 V 5 kA, 20 kA ESP D/TN Twisted Pair Surge Protector, DIN Rail Mounting

  • RS Stock No. 198-0424
  • Mfr. Part No. ESP 15D
  • Manufacturer WJ Furse
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): GB
Product Details

WJ Furse twisted- pair lightning Surge Arrestors - ESP D & TN Series

From WJ Furse, these lightning surge arrestors are designed for use on twisted-pair lines found in process control equipment, modems and communications interfaces. These surge protectors offer full mode protection with very low let through voltage (to BS EN 62305) between all lines. The full mode design allows for the continued operation of protected equipment while also handling partial lightning currents. ESP series surge protectors offer repeated protection in lightning intense environments and are encased within a strong, flame retardant ABS housing.

Features and benefits:

300 mA current rating Low inline resistance
Colour coded terminals
Effective earthing from substantial earth stud
Integral earthing plate for enhanced connection to earth with a CME kit
Supplied ready for flat mounting on the side or on the base
A built-in foot allows for clip-on mounting for top hat DIN Rails
Easy connection of cable screen to earth with screen terminal

Installation:

These surge protectors should be installed closely to the system's earth start point. They should be connected in series with the data communication or signal line close to the equipment that is being protected, such as the control panel. Alternatively, these surge protectors should be installed where the signal line enters or leaves the building. Surge protectors should be installed within a separate enclosure or in an existing enclosure.

Accessories

CME 4 (239-731), WBX 3 (456-8112), WBX 4 (456-8106)

Transient Voltage Suppressors (Data Lines)

Specifications
Attribute Value
Suppressor Type Twisted Pair Surge Protector
Maximum Voltage Rating 19 V
Mounting Type DIN Rail
Maximum Surge Current 5 kA, 20 kA
Series ESP D/TN
Length 120mm
Depth 19mm
Height 54mm
Dimensions 120 x 54 x 19mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
67 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 456.83
units
Per unit
1 - 9
MYR456.83
10 +
MYR448.66
