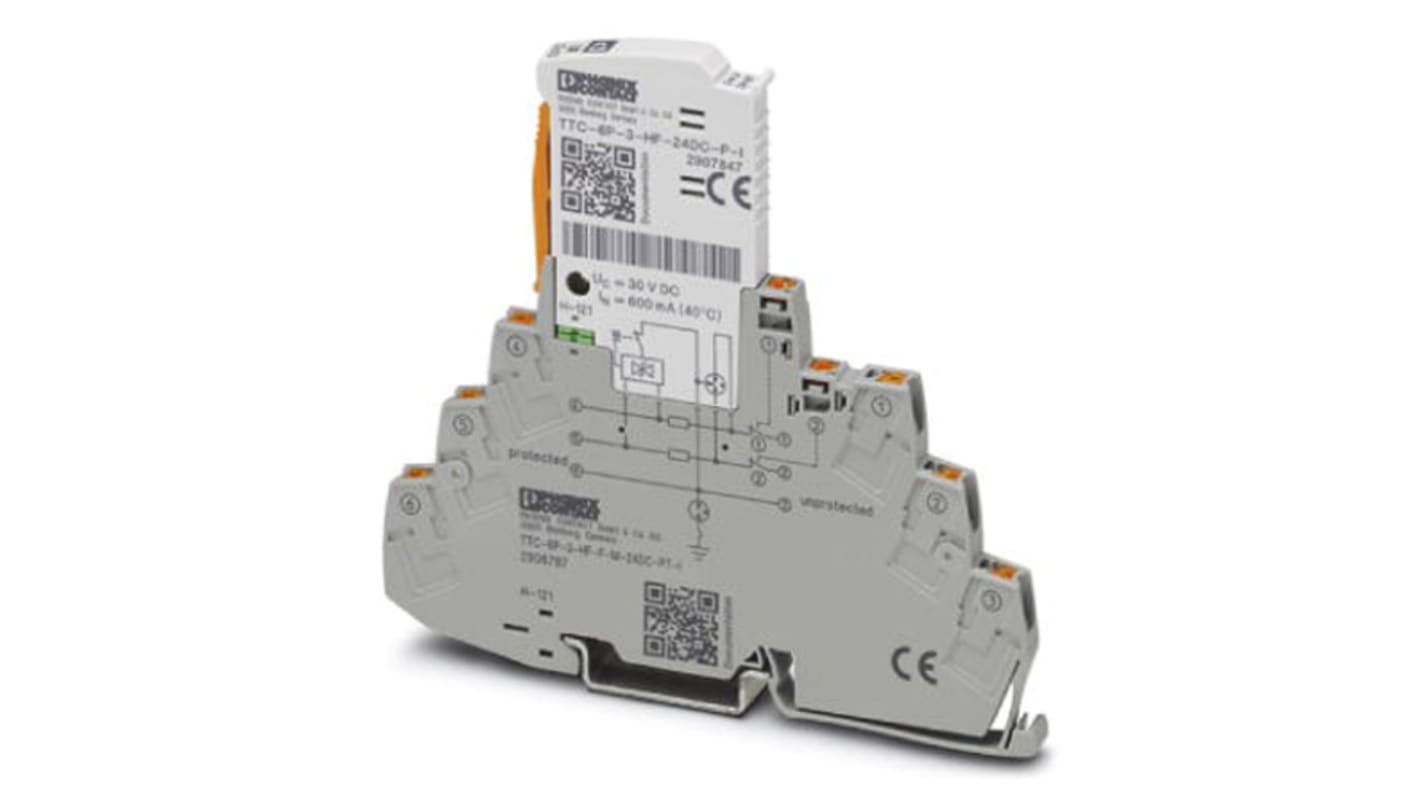

Phoenix Contact 30 V dc 10 (Discharge)kA TTC-6P-3-HF-F-M-24DC-PT-I Surge Protection Device, DIN Rail Mounting

Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

Phoenix Contact TTC Series

A professional range of Phoenix Surge Protection Devices. These surge protection devices come with integrated status indicator and knife disconnection for either a 2 or 3 wire floating signal circuit. All products are highly reliable and of excellent quality.

Features and Benefits

- 6 mm overall width
- Push-in connection technology
- Integrated status indicator without auxiliary energy and option of remote signaling
- Integrated knife disconnection for easier maintenance work

Surge Protection Devices, SPDs (DIN-rail)

Voltage surges, often referred to as spikes or transients are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning and can reach up to 6000V, with current surges of over 3000A. The maximum size of the voltage and current surges depends on the location within the building's wiring system. BS7671: 2011 Amendment 1 Sections 443 and 534 cover risk assessment and provides guidance on protection of electronic equipment for installation engineers to follow. The fullest information on lightning and surge protection comes from the BSEN 62305 series of standards.

Specifications
Attribute Value
Suppressor Type Surge Protection Device
Maximum Voltage Rating 30 V dc
Mounting Type DIN Rail
Maximum Surge Current 10 (Discharge)kA
Series TTC-6P-3-HF-F-M-24DC-PT-I
Length 100mm
Depth 6.2mm
Height 105.8mm
Dimensions 100 x 6.2 x 105.8mm
Minimum Operating Temperature -40°C
Maximum Operating Temperature +85°C
Temporarily out of stock - back order for despatch 11/02/2020, delivery within 4 working days from despatch date
Price Each
MYR 723.93
units
Per unit
1 +
MYR723.93
