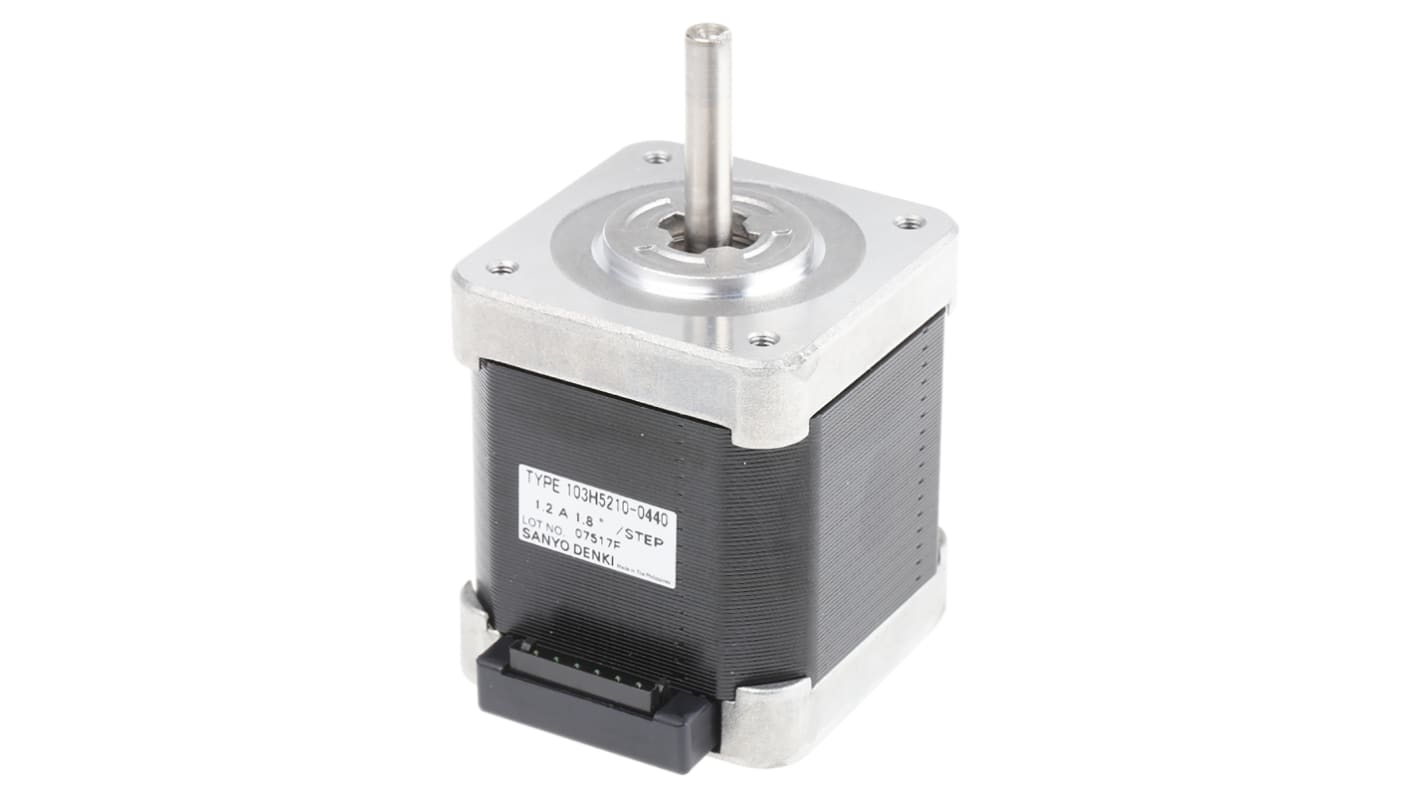

Sanyo Denki Unipolar Hybrid Stepper Motor 1.8°, 0.37Nm, 24 V dc, 1.2 A, 6 Wires

  • RS Stock No. 829-3506
  • Mfr. Part No. 103H5210-0440
  • Manufacturer Sanyo Denki
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): PH
Product Details

Sanyo Denki Sanmotion 103H5 Series Stepper Motor

Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

Sanyo Denki Stepper Motor

Specifications
Attribute Value
Step Angle 1.8°
Holding Torque 0.37Nm
Number Of Wires 6
Voltage Rating 24 V dc
Frame Size 42 x 42mm
Stepper Motor Type Hybrid
Shaft Diameter 5mm
Current Rating 1.2 A
Winding Arrangement Unipolar
Shaft Length 22.5mm
Depth 49.5mm
Resistance Per Phase 3.3Ω
4 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 181.06
units
Per unit
1 +
MYR181.06
