McLennan Servo Supplies Unipolar Permanent Magnet Stepper Motor 7.5°, 0.20Nm, 5 V dc, 550 mA, 6 Wires

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details

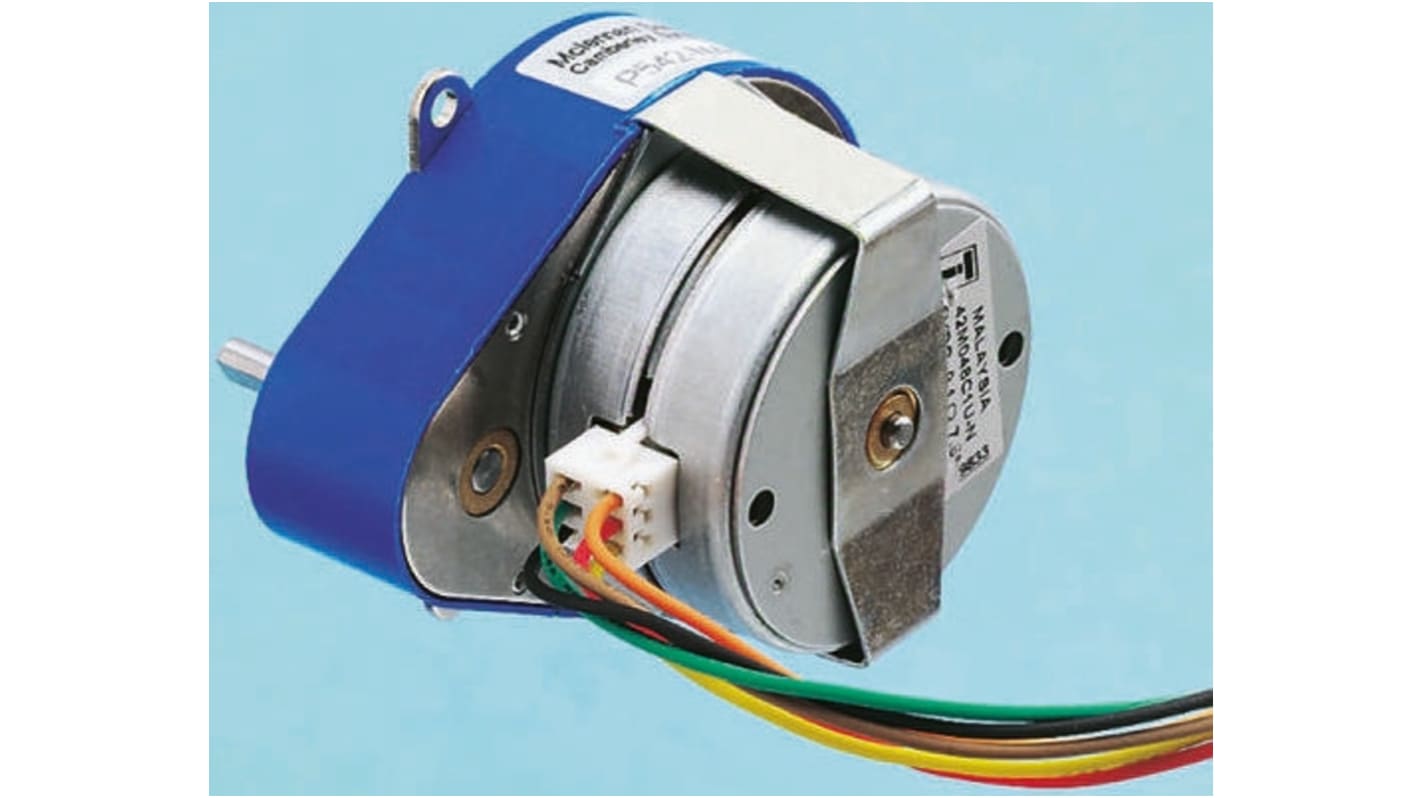

7.5° Unipolar Geared, Stepper Motor

A permanent magnet 5V stepper motor fitted with an ovoid gearhead, which provides a rotational speed reduction and increased torque output.

Ideal for applications where digital control of speed and position is required
Gearbox utilises metal gears for optimum torque transmission

Specifications
Attribute Value
Step Angle 7.5°
Holding Torque 0.20Nm
Number Of Wires 6
Voltage Rating 5 V dc
Stepper Motor Type Permanent Magnet
Shaft Diameter 4mm
Current Rating 550 mA
Winding Arrangement Unipolar
Shaft Length 17.2mm
Depth 25mm
Number of Pole Pairs 2
Resistance Per Phase 9.1Ω
25 In Global stock for delivery within 4 - 6 working days
Price Each
MYR 302.02
units
Per unit
1 +
MYR302.02
