Valsteam ADCA 4.5 bar SG Iron Thermostatic Steam Trap Set

Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): PT
Product Details

Trap Set with GV32B, IS140, RT25 and FLT17HC

Trap sets containing a globe valve, Y strainer, non-return valve and a float and thermostatic steam trap.

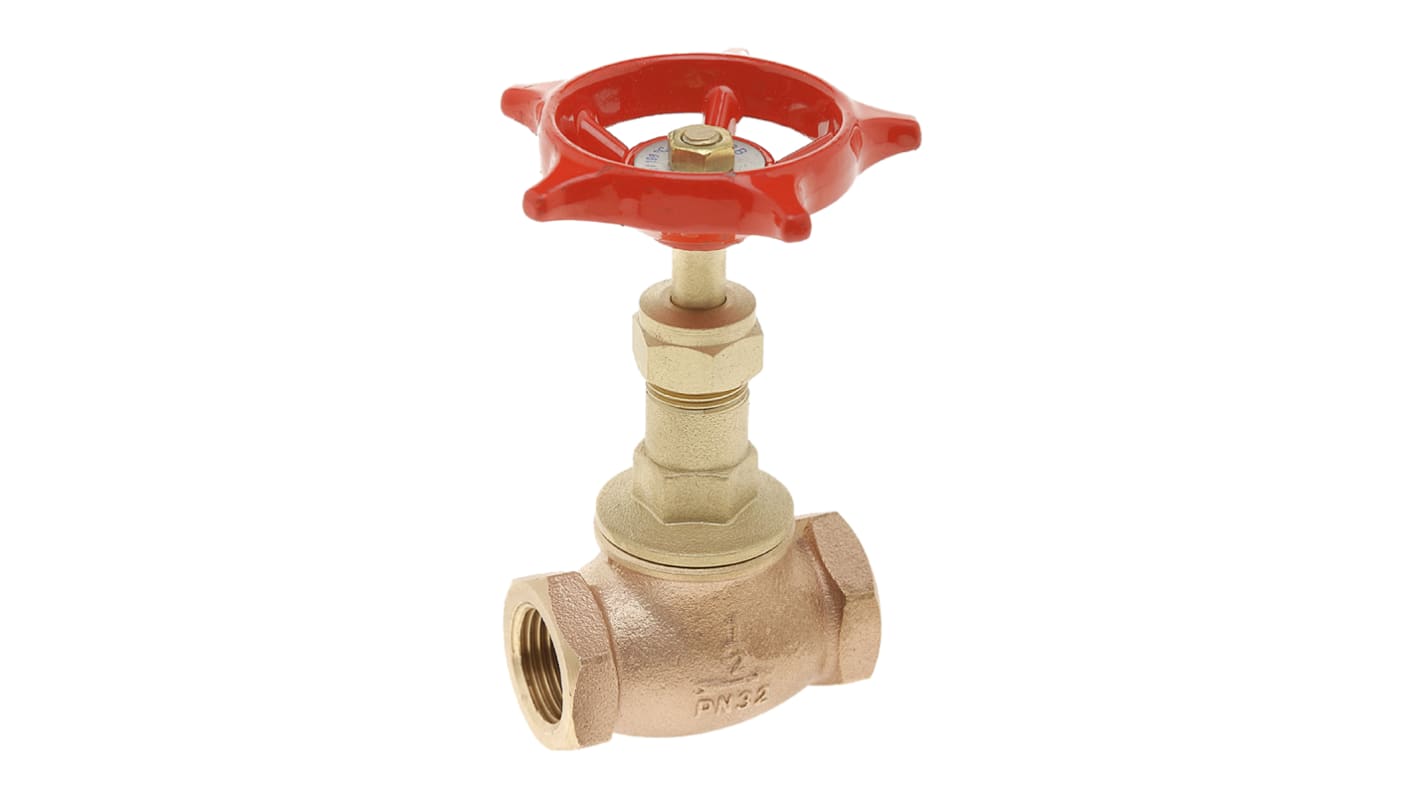

Bronze Globe Valve GV32B

GV32B bronze inline stop valve with a rising stem, PTFE renewable disk and high-quality packing.

• Female screwed ISO7/1Rp (BS21)
• Body design conditions PN32
• 198°C at 14 bar
• 100°C at 32 bar

Y Strainers IS140

The IS140 Y strainer has been designed to protect traps, regulating valves and piping from dirt.

• Female screwed ISO7/1Rp (BS21)
• Horizontal or vertical downstream installation

Non-Return Valve RT25

The RT25 stainless steel disc check valve specially designed for use with steam and hot condensate.

• Female screwed ISO7/1Rp (BS21)
• Low-pressure drop
• Horizontal or vertical installation

Float & Thermostatic Steam Trap FLT17LC

The FLT17HC float and thermostatic steam trap is designed for high and low-pressure steam heating and process equipment.

• Modulating discharge
• Discharges condensate at steam temperature
• Unaffected by pressure changes
• Excellent air discharge
• Female screwed ISO7/1Rp (BS21)
• Standard horizontal installation from left to right
• DN 1” HC – DN25 HC

Application Information

For use with saturated steam, condensate, compressed air, water, oil and other fluids.

Specifications
Attribute Value
Trap Type Thermostatic
Orientation Horizontal, Vertical
Maximum Working Pressure 4.5 bar
Body Material SG Iron
Gasket Material Stainless Steel
Connection Gender Female
Temporarily out of stock - back order for despatch 17/03/2020, delivery within 4 working days from despatch date
Price Each
MYR 4,068.62
units
Per unit
1 +
MYR4,068.62
