- RS Stock No.:
- 720-9254
- Manufacturer:
- RS PRO
6 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR1,950.40
Units | Per Unit |
1 - 4 | MYR1,950.40 |
5 + | MYR1,605.18 |
- RS Stock No.:
- 720-9254
- Manufacturer:
- RS PRO
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PT
Product Details

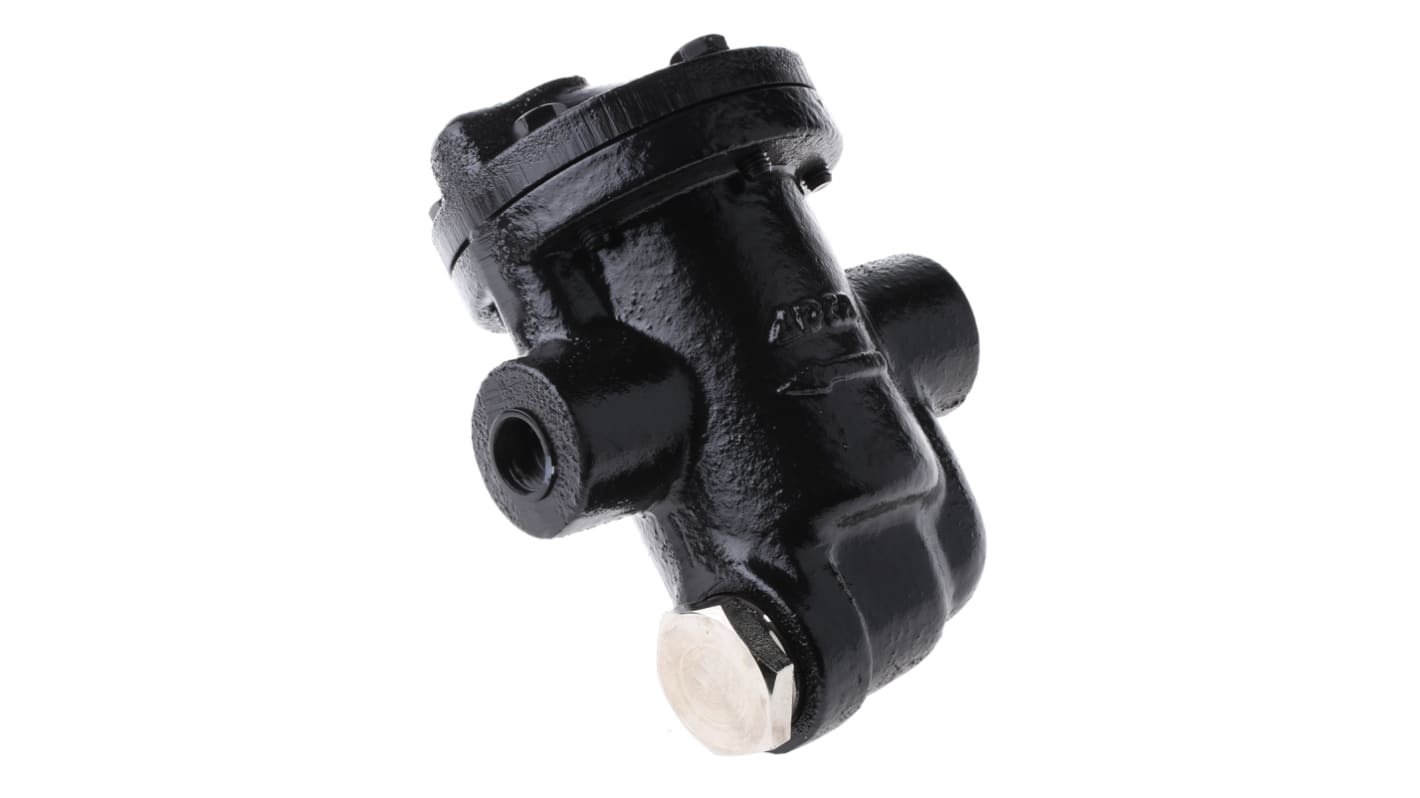

RS PRO 12 bar Iron Inverted Bucket Steam Trap, 1/2 in BSP Female
Searching for a robust mechanical steam trap you can use in your steam application? This RS PRO inverted bucket steam trap is a perfect choice when you require efficiency and trouble-free service life at medium and high-steam pressures.
The internal parts of this steam trap are made from stainless steel to guarantee it's strong and resistant to impact and corrosion. The stainless steel material also ensures the trap will operate in temperatures up to +230°C. Its gasket is made from graphite which makes it resistant to thermal shocks.
You can install this unit horizontally so it's easy to maintain. The trap has female threaded connections conforming to the BSP (British Standard Pipe) requirements specifying technical standards for screw threads used for sealing pipes and fittings. It has a Pressure Nominale (PN) rating of PN12, which means you can safely use it in systems with a pressure of up to 12 bar.
The internal parts of this steam trap are made from stainless steel to guarantee it's strong and resistant to impact and corrosion. The stainless steel material also ensures the trap will operate in temperatures up to +230°C. Its gasket is made from graphite which makes it resistant to thermal shocks.
You can install this unit horizontally so it's easy to maintain. The trap has female threaded connections conforming to the BSP (British Standard Pipe) requirements specifying technical standards for screw threads used for sealing pipes and fittings. It has a Pressure Nominale (PN) rating of PN12, which means you can safely use it in systems with a pressure of up to 12 bar.
Features and Benefits
Iron body material
Female connection gender
Connection size of 1/2 in BSP
Maximum temperature of +230°C
Maximum working pressure of 12 bar
Horizontal orientation
British Standard Pipe (BSP) thread type
Inverted bucket trap type
Female connection gender
Connection size of 1/2 in BSP
Maximum temperature of +230°C
Maximum working pressure of 12 bar
Horizontal orientation
British Standard Pipe (BSP) thread type
Inverted bucket trap type
Specifications
Attribute | Value |
---|---|
Trap Type | Inverted Bucket |
Connection | 1/2 in BSP Female |
Orientation | Horizontal |
Maximum Working Pressure | 12 bar |
Maximum Temperature | +230°C |
Body Material | Iron |
Connection Gender | Female |
Connection Size | 1/2in |
Thread Standard or Connection Type | BSP |
