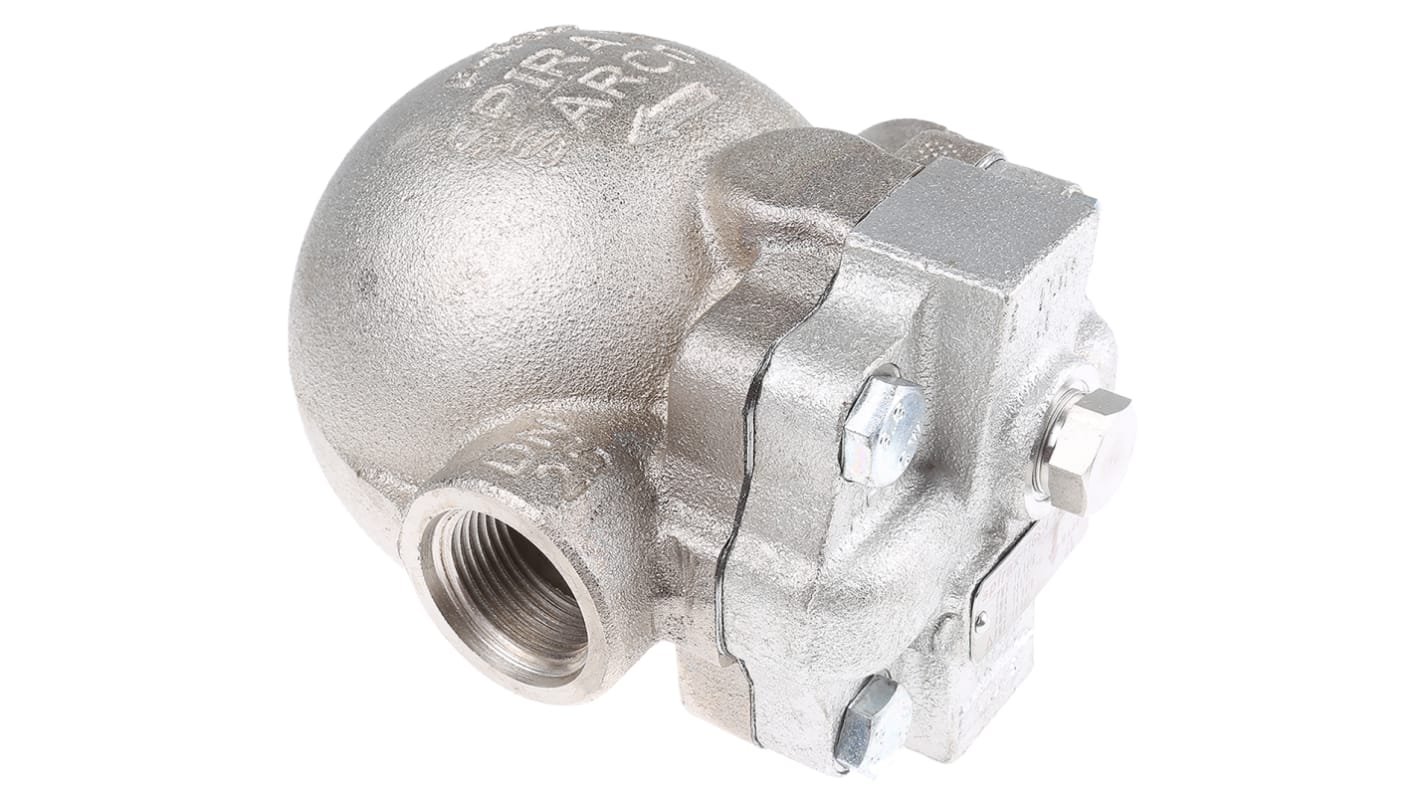

Spirax Sarco 14 bar Iron Thermostatic Steam Trap, 1 in BSP Female
- RS Stock No.:
- 365-6426
- Mfr. Part No.:
- 1458800
- Manufacturer:
- Spirax Sarco
4 In Global stock for delivery in 4-6 working days, delivery time may vary for certain locations or FTZ
Added
Price Each
MYR5,409.91
| Units | Per Unit |
| 1 + | MYR5,409.91 |
- RS Stock No.:
- 365-6426
- Mfr. Part No.:
- 1458800
- Manufacturer:
- Spirax Sarco
Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Ball Float Steam Trap FT14
Stainless steel internals that can tolerate corrosive condensate
Integral automatic air venting facility
Compact and lightweight reducing installation costs
Immediate discharge with clean tight shut-off
No back-up of condensate ensures maximum plant effieciency
Robust construction to guarantee long life against waterhammer and vibration
Large discharge capacity in relation to size
Integral automatic air venting facility
Compact and lightweight reducing installation costs
Immediate discharge with clean tight shut-off
No back-up of condensate ensures maximum plant effieciency
Robust construction to guarantee long life against waterhammer and vibration
Large discharge capacity in relation to size
Iron Steam Traps
All units PN16 with Stainless Steel internal parts and Reinforced Exfoliated Graphite gaskets, Straight Orientation; Maximum Operating Pressure - 14bar g; Maximum Allowable Pressure - 16 bar g; Maximum Cold Hydraulic Test Pressure - 24bar g; Cover Bolts Material - BS 3692 Gr.10 Steel;
Specifications
Attribute | Value |
|---|---|
| Trap Type | Thermostatic |
| Connection | 1 in BSP Female |
| Orientation | Vertical |
| Maximum Working Pressure | 14 bar |
| Maximum Temperature | +240°C |
| Body Material | Iron |
| Gasket Material | Graphite |
| Connection Gender | Female |
| Connection Size | 1in |
| Thread Standard or Connection Type | BSP |
