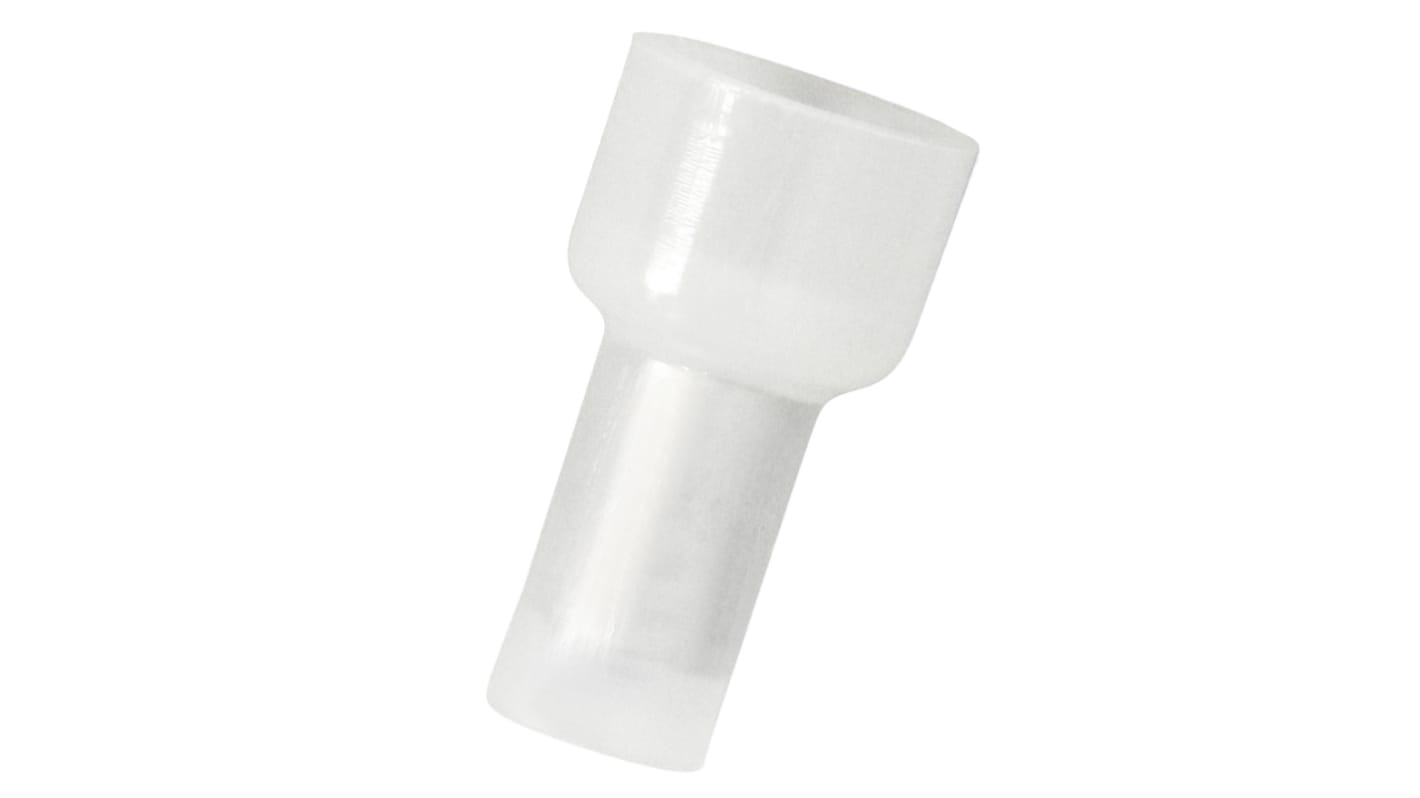

RS PRO Splice Connector, Natural, Insulated 1.25 mm², 22 → 16 AWG

  • RS Stock No. 178-8396
  • Manufacturer RS PRO
Technical data sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TW
Product Details

RS PRO CLOSED END CONNECTORS

Specifications
Attribute Value
Wire Size 1.25 mm², 22 → 16 AWG
Maximum Wire Size mm² 1.25mm²
Overall Length 15.2mm
Diameter 6mm
Minimum Wire Size AWG 22AWG
Maximum Wire Size AWG 16AWG
Insulation Insulated
Colour Natural
Insulation Material Nylon
Contact Material Copper
Thickness 0.35mm
3300 In Global stock for delivery within 4 - 6 working days
Price Each (In a Bag of 100)
MYR 0.173
units
Per unit
Per Bag*
100 - 900
MYR0.173
MYR17.30
1000 - 1900
MYR0.158
MYR15.80
2000 - 4900
MYR0.145
MYR14.50
5000 - 9900
MYR0.134
MYR13.40
10000 +
MYR0.121
MYR12.10
*price indicative
